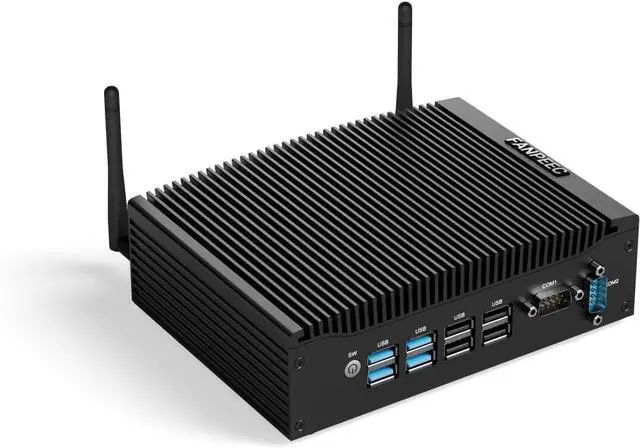

FANPEEC Fanless Mini PC Industrial Core i5-8350U(max 3.6 GHz) 16GB DDR4 RAM 256GB M.2 SSD Industrial PC 2xHDMI, Fanless Computer Win 11 Pro/Linux, 2xRS232 COM, WiFi5, BT4.2, 8xUSB, Power On Auto

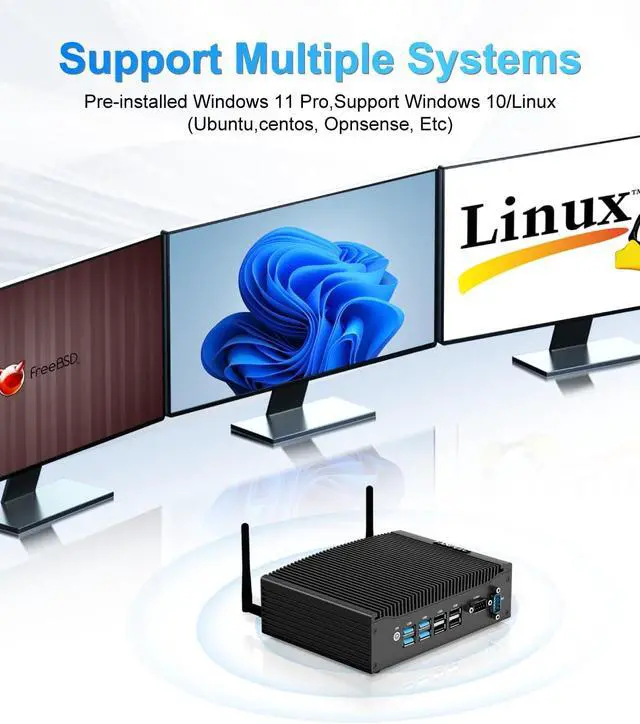

- Powerful CPU, efficient workThe industrial mini pc equipped with Core i5-8350U(4 cores, 8 threads, max 3.60GHz). Whether it is processing complex office documents, multi tasking in parallel, or enjoying high definition audio and video, it can provide smooth and fast response. Support Win11 Pro and also compatible with Win 10 and Linux systems to meet your diverse needs.

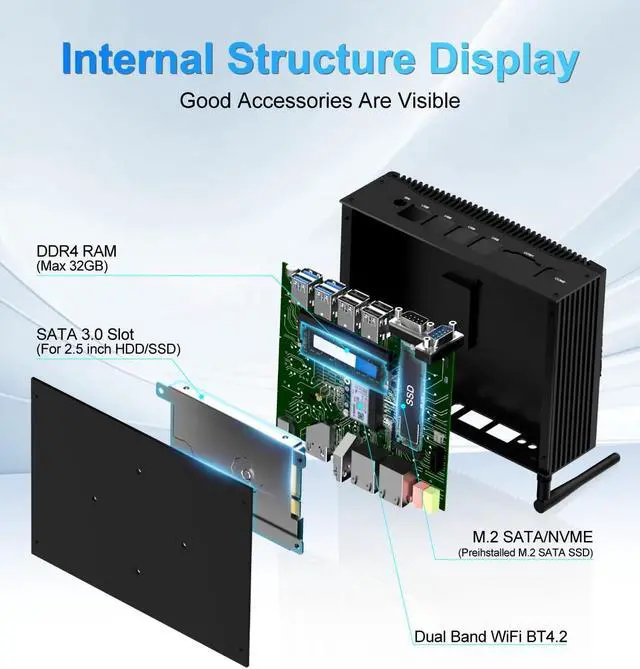

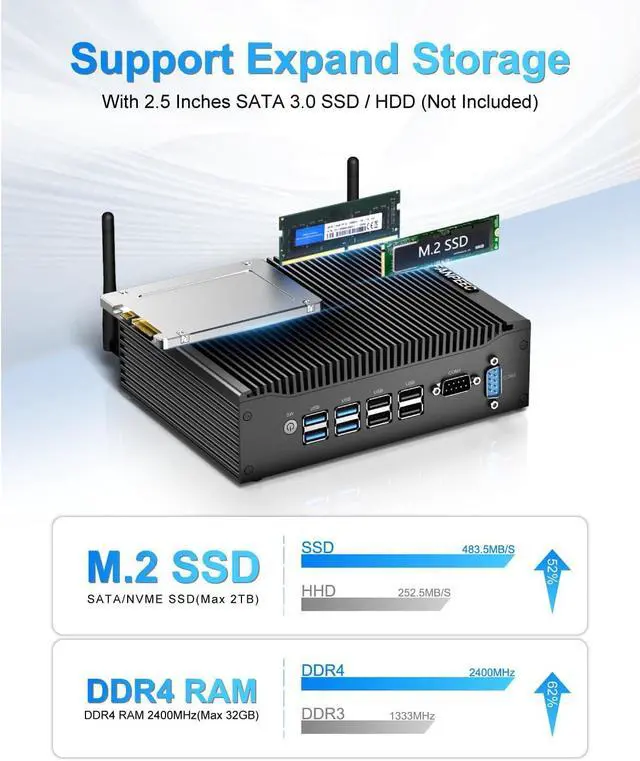

- Flexible expansion, worry free massive storageMini pc industrial provides powerful hardware upgrade flexibility. Install DDR4 memory and equip dual storage interfaces: a high speed M.2 2280 SSD slot (supports up to 2TB capacity) and a 2.5 inch SATA 3.0 hard drive slot (supports up to 2TB capacity). You can easily combine large capacity hard drives and high speed solid state drives to balance storage space and system speed.
- Dual screen, independent display for enhanced work efficiency The fanless pc i5 equipped with dual HD outputs, it easily connects two monitors for independent display. Ideal for tasks requ
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

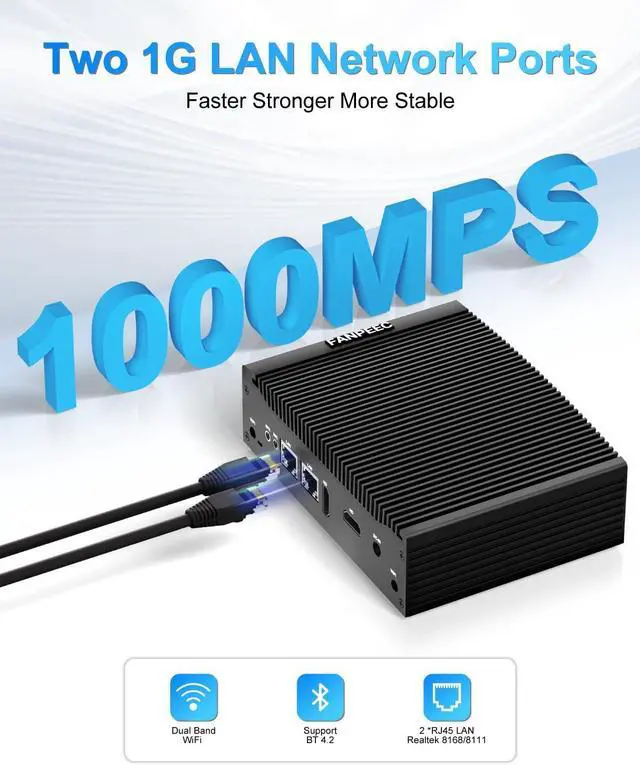

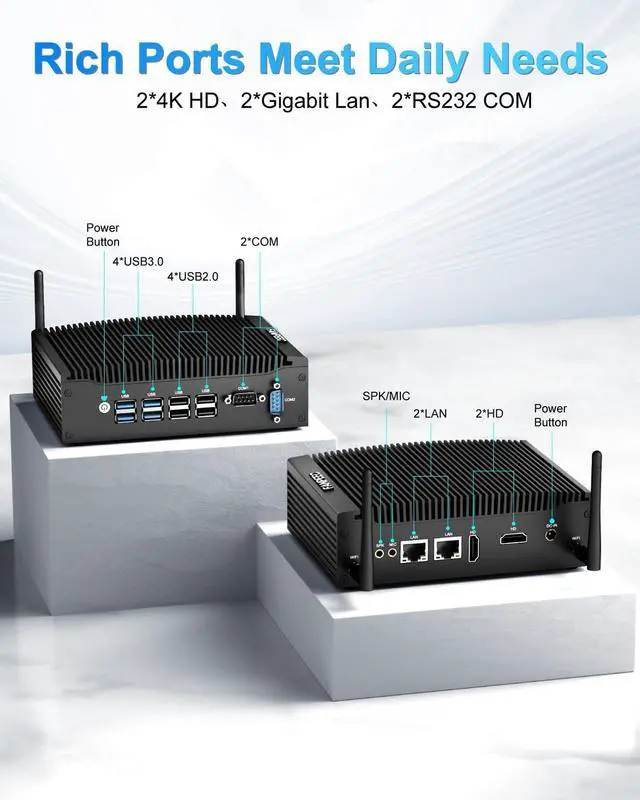

CPUCore i5-8350U(4 cores, 8 threads, 6 MB cache, up to 3.60 GHz)TDP(Max)CPU: 15W;Whole machine: 50WPhotolithography14NMMotherboard chipsetNo independent chipset, CPU integrationMemory module slot1 * DDR4 260pin SODIMM, supports up to 64G, memory frequency: 2400MHzUSB4*USB 2.04*USB 3.0 Type-A COM2*DB 9pin RS232 COMLAN2 * RJ45 network port, wired network card model: Realtek 8168/8111 Gigabit EthernetVideo port2*HD 1.44K 30HZ. Support simultaneous transmission of audio and videoGraphics card modelHD Graphics 620Storage port1 * M.2 2280 slot;1*SATA . 0, used to expand 2.5-inch SSD/HDDPower input12V 5ASupported systemsWindows 10, Windows 11, Linux (Ubuntu \ Centos \ Pfsense \ opnsense \ VMWare Exsi requires writing the network card driver to the image file in advance) \ Qubes OsWorking temperature-10-50 (referring to the ambient temperature for use)Motherboard type/sizeNano-ITX :120MM*120MMChassis materialAluminium alloy Can WiFi module and 3G to 4G module be used simultaneously?
No. WiFi module, 3G module and 4G module, only one of them can be installed. The WiFi 5 module is pre-installed by default. If you need other specification, plsae consult with us.
Does the mini computer make noise while working?
Fanless design, ultra-thin aluminum housing, chassis and heatsink for heat dissipation and operating environment temperature from -10 to 50 °C. This mini computer is also very energy efficient with a power consumption of only 15W.
How can I set the automatic start?
This is achieved by moving the PWRON1 jumper on the motherboard (not enabled by default).
FANPEEC Mini PC Industrial Core i5-8350U FANPEEC H7-i5-8350U Fanless PC Specification Table What is the keyboard shortcut for accessing the BIOS and Quick Start options?
Can WiFi module and 3G to 4G module be used simultaneously?
Does the mini computer make noise while working?
How can I set the automatic start?
No. WiFi module, 3G module and 4G module, only one of them can be installed. The WiFi 5 module is pre-installed by default. If you need other specification, plsae consult with us.
Does the mini computer make noise while working?
Fanless design, ultra-thin aluminum housing, chassis and heatsink for heat dissipation and operating environment temperature from -10 to 50 °C. This mini computer is also very energy efficient with a power consumption of only 15W.
How can I set the automatic start?
This is achieved by moving the PWRON1 jumper on the motherboard (not enabled by default).
FANPEEC Mini PC Industrial Core i5-8350U FANPEEC H7-i5-8350U Fanless PC Specification Table What is the keyboard shortcut for accessing the BIOS and Quick Start options?
Can WiFi module and 3G to 4G module be used simultaneously?
Does the mini computer make noise while working?
How can I set the automatic start?
