BASOARO Industrial Mini PC, Fanless PC Win 11 Pro, Fanless Industrial Mini PC i7 8550U, 16GB DDR4 RAM 512GB SSD, 2 RJ45 LAN, LPT Port, DP EDP HD Triple Displays, 6RS232 COM, Dual Band WiFi, BT
- Industrial-Grade Processor with Win 11 ProBASOARO mini industrial pc is Powered by Core i7-8550U processor (4 Cores, 8 Threads, up to 4.0GHz, 8MB Cache, 15W TDP), delivering stable and efficient performance for industrial automation, control systems, and edge computing. Supports Win 11 Pro / Win 10 / Linux, with TPM 2.0 for enhanced system security.
- Triple 4K Display Output for Industrial & Office UseThis industrial computer Supports triple independent displays via HD 2.0, DP 1.2, and EDP, all capable of 4K @ 60Hz output. Ideal for control rooms, monitoring systems, digital signage, and multi-screen office setups - boost productivity while reducing desktop clutter.

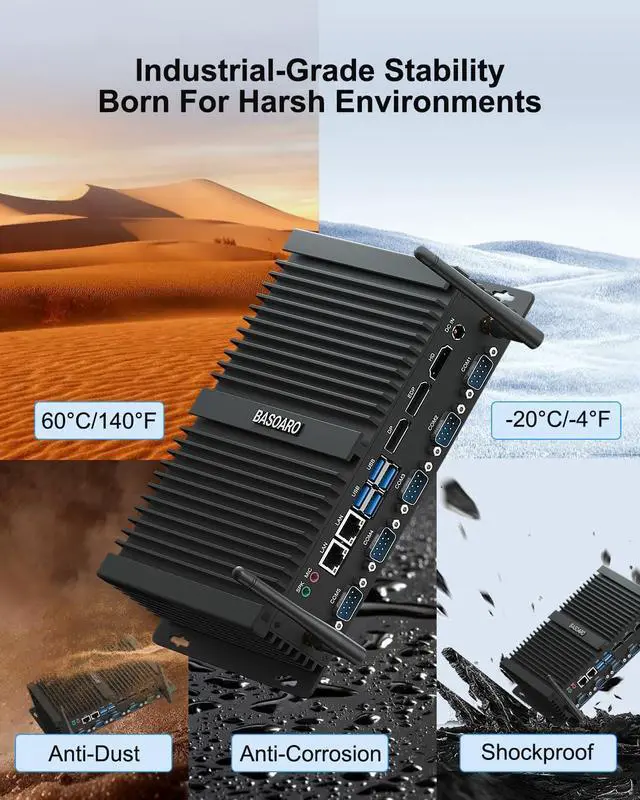

- Fanless Design for 24/7 Silent & Stable OperationDesigned as a industrial fanless mini pc, the rugged aluminum enclosure ensures silent operation, reduced dust ingress, and improved system stability. Built for 24/7 continuous industrial use, supports a wide operating temperature range of -20°C to +60°C, an
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

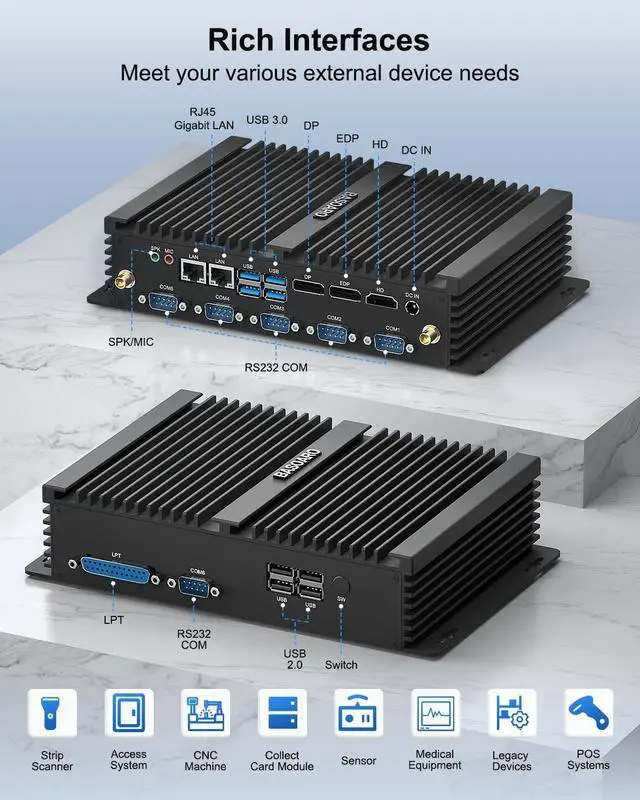

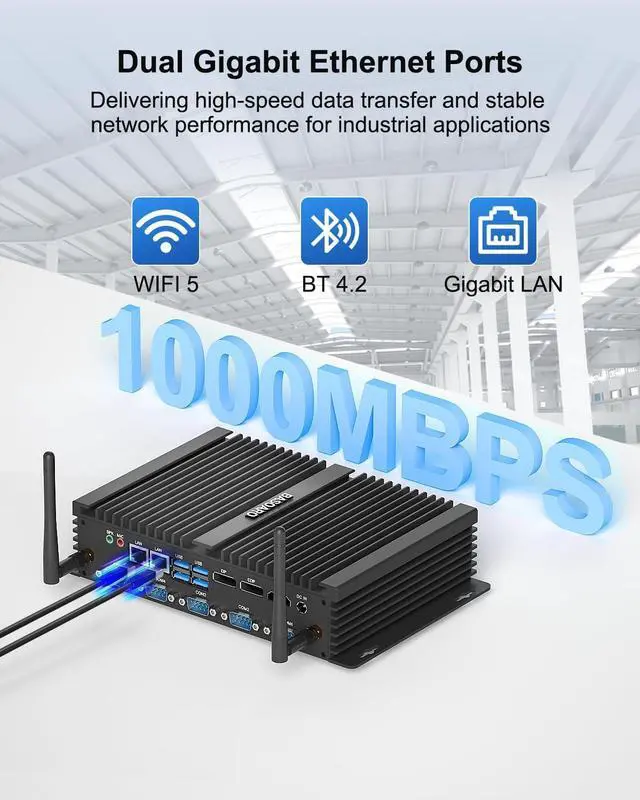

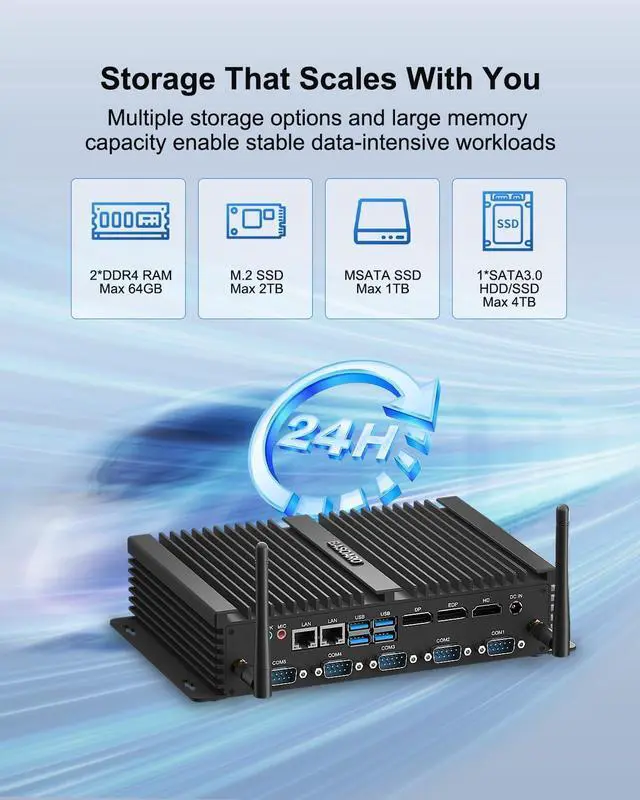

CPUCore i7 8550U Processor, 1.80 GHz (up to 4.00 GHz), 8 MB cache, 4 Cores 8 ThreadsGraphicsUHD Graphics 620Memory2 x DDR4-2400 SO-DIMM, max 64GB RAMStorage1 x mSATA 3.0 slot for mSATA SSD, 1 x m. 2 SATA/PCIE SSD, 1 x SATA 3.0 slot for 2.5 inch HDD or SSDLAN2 x I210/I211 Gigabit RJ45 LANDisplay1 x HD 2.0 ) 4K 60HZ + 1 x DP 1.2 ) 4K 60HZ + 1 x EDP 4K 60HZ (Not supporting hot swapping), support 3 Synchronized displaysUSB4 x USB 3.0, 4 x USB 2.0 (Type-A)I/O Interface6 x RS232 COM ports (support 4 x RS232 COM ports, 2 x RS485 COM ports), 1 x LPT (Parallel Port) Power1 x 12V Power In, 12V 5A ( DC 5.5 * 2.5MM )
Note: Supports up to 12V 6A powerDimension238*182*52mm ( 9.37 * 7.16 * 2.04 inch)WeightNet 1.6 kg ( 3.52 lb), Gross 2.2 kg ( 4.85 lb)WiFi & BTDual Band WiFi + BT 4.2 (supports SIM card and 4G module, pre-installed WiFi module). SIM card requires a 4G module for use. Case Material Aluminum AlloyOperating SystemSupport Win 11 Pro, Win 10 Pro, Linux, Ubuntu, etc. Enter BIOS and Quick Start"Delete" key to enter BIOS, and "F11" to enter the Quick Start menu 1Core i7 8550U2Triple 4K Display36 DB9 COM4LPT (Parallel Port) 5WIFI5&BT 4.21A pplication Scenario2Industrial3Retail4Office5Billboards BASOARO Fanless Industrial Mini PC
Note: Supports up to 12V 6A powerDimension238*182*52mm ( 9.37 * 7.16 * 2.04 inch)WeightNet 1.6 kg ( 3.52 lb), Gross 2.2 kg ( 4.85 lb)WiFi & BTDual Band WiFi + BT 4.2 (supports SIM card and 4G module, pre-installed WiFi module). SIM card requires a 4G module for use. Case Material Aluminum AlloyOperating SystemSupport Win 11 Pro, Win 10 Pro, Linux, Ubuntu, etc. Enter BIOS and Quick Start"Delete" key to enter BIOS, and "F11" to enter the Quick Start menu 1Core i7 8550U2Triple 4K Display36 DB9 COM4LPT (Parallel Port) 5WIFI5&BT 4.21A pplication Scenario2Industrial3Retail4Office5Billboards BASOARO Fanless Industrial Mini PC
