WEIDIAN Industrial Mini PC, Industrial Computer Core i5 1235U, Mini Computer Fan Cooling Win 11, 4K Triple Display 2HD+DP, 2RJ45 LAN, 6RS232 COM, 8USB, WiFi6, BT5.2 (8GB RAM 256GB SSD)
- Powerful Performance Of The 12th Generation Core i5-1235U Mini PCWEIDIAN mini PC is equipped with the 12th generation Core i5-1235U (10 cores/12 threads, 12M cache, up to 4.4GHz, UHD Graphics/Iris Xe Graphics) pre-installed with Win 11 Pro. This mini PC not only has a powerful performance processor, but also has advanced functions such as Auto Power On, Wake on Lan, etc. Which is suitable for various usage scenarios such as business office and industry.

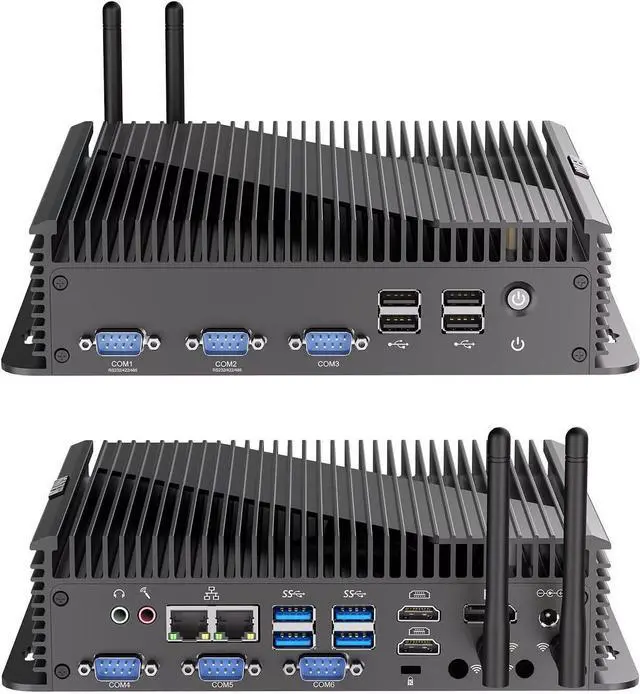

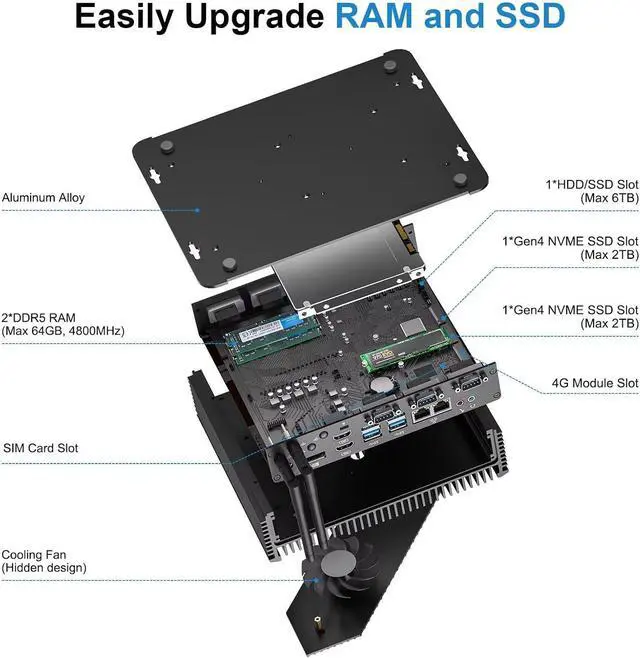

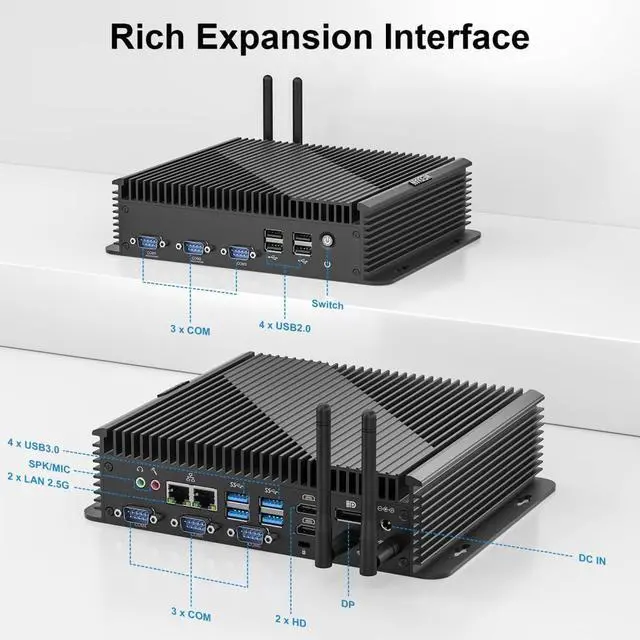

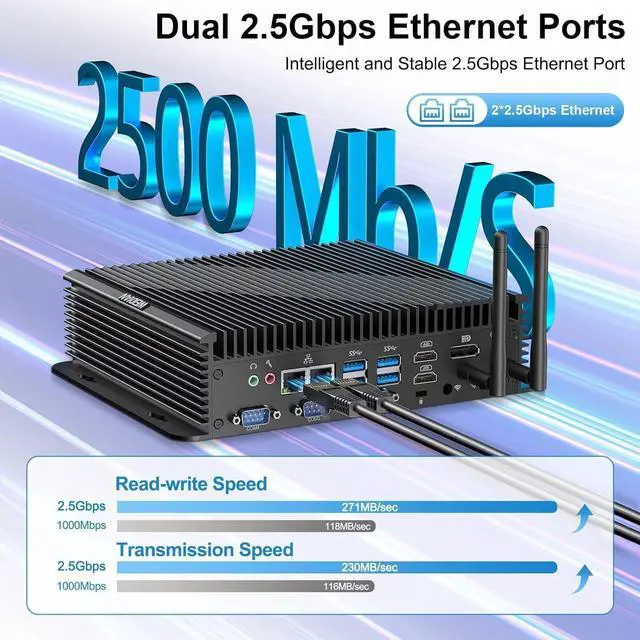

- Rich Interfaces & DDR5This industrial PC boasts a robust interface setup: 2 RJ45 LAN ports, 8 USB ports, 2 HD, 1 DP, 6 COM ports (COM1-2 support RS232/422/485; COM3-6 only support RS232), 1x MIC, and 1x SPK. For storage and memory, it features high-speed dual-channel DDR5 RAM (up to 64GB), 2 M.2 2280 NVME SSDs (2TB max each), and 1 SATA3.0 2.5-inch HDD/SSD (up to 6TB). Ideal for industrial control and data processing, it handles multiple high-performance tasks with ease.

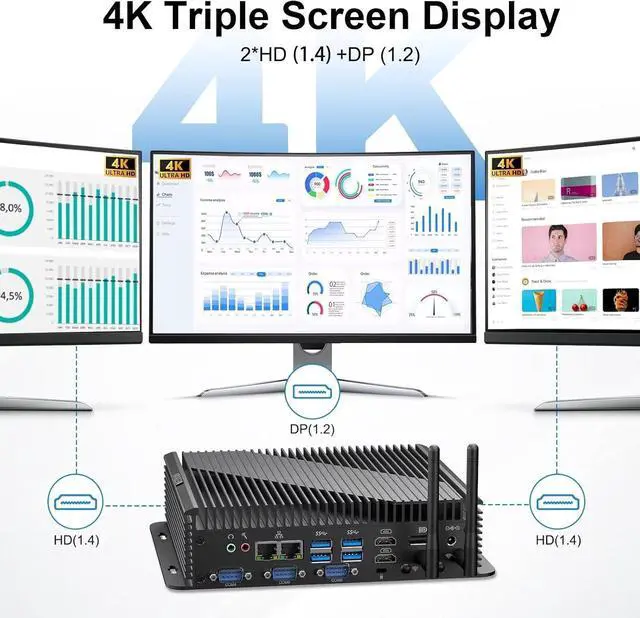

- 4K Triple Display And Fan CoolingThis mini PC support
+
+
Overview
Specs
Reviews
CPU12th Gen i5-1235U (12M Cache, 10 Cores 12 Threads, base
frequency: 1.3GH z,

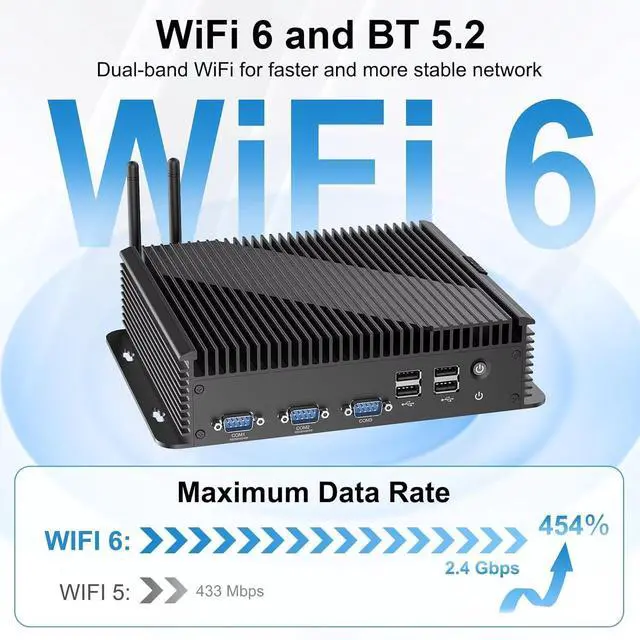

max frequency: 4.4GH z)GPUUHD Graphics (when using single-channel memory) / Iris Xe Graphics (when using dual-channel memory)RAMDual channel DDR5 slot (4800MHz), Max 64GB (32GB × 2)SSD/HDD2 x M. 2 2280 (PCIE 4.0 x 4) slot for M. 2 NVME SSD (Max 4TB), 1 x SATA 3.0 slot for 2.5 inch HDD/SSD (Max 6TB) Display Output2 x HD ( 1.4 ) @4K 30Hz, 1 x DP ( 1.2 ) @4K 60Hz (All support audio and video transmission) COM6 x DB 9 pin COM, 6 x RS232 or 4 x RS232+2 x RS422/RS485 (COM1/2 supports RS232/RS422/RS485, COM3/4/5/6 only supports RS232)Mainboard Expansion I/O1 x Nano SIM slot for Nano SIM card, 12.3 * 8.8MM (not included by default) +1 x MPCIE slot for 4G module, 51*30MM, (not included by default) Rich Ports6 x DB9 Pin COM+4 x USB 3.0 + 4 x USB 2.0 +2 x HD + DP+2 x RJ45 LAN+4 x WIFI antenna+MIC&SPK 3.5MM +DC-IN + Kensington lock PortWiFi & BTWi-Fi 6 (AX200), BT 5.2OSP reinstall Win 11 Pro, for Win10/11, Linux (Ubuntu\\Debain\\Rocky Linux\\Vmware Esxi)Power Adapter19V 6.32A (90W), DC specification 5.5 * 2.5MM; support wide voltage DC 9V-36V inputOperating Environment-1055 Dimension225 x 175 x 55MM 1.7 kg ( 8.86 x 6.89 x 2.17 inch 3.75 lbs)FunctionSupport TPM 2.0, Auto Power On (configured in BIOS), Wake on LAN, Wake System From RTC Alarm, Watchdog, PXE (only supports UEFI boot mode) WEIDIAN H4 12th Gen Core i5 1235U Mini PC Detailed Data
frequency: 1.3GH z,
max frequency: 4.4GH z)GPUUHD Graphics (when using single-channel memory) / Iris Xe Graphics (when using dual-channel memory)RAMDual channel DDR5 slot (4800MHz), Max 64GB (32GB × 2)SSD/HDD2 x M. 2 2280 (PCIE 4.0 x 4) slot for M. 2 NVME SSD (Max 4TB), 1 x SATA 3.0 slot for 2.5 inch HDD/SSD (Max 6TB) Display Output2 x HD ( 1.4 ) @4K 30Hz, 1 x DP ( 1.2 ) @4K 60Hz (All support audio and video transmission) COM6 x DB 9 pin COM, 6 x RS232 or 4 x RS232+2 x RS422/RS485 (COM1/2 supports RS232/RS422/RS485, COM3/4/5/6 only supports RS232)Mainboard Expansion I/O1 x Nano SIM slot for Nano SIM card, 12.3 * 8.8MM (not included by default) +1 x MPCIE slot for 4G module, 51*30MM, (not included by default) Rich Ports6 x DB9 Pin COM+4 x USB 3.0 + 4 x USB 2.0 +2 x HD + DP+2 x RJ45 LAN+4 x WIFI antenna+MIC&SPK 3.5MM +DC-IN + Kensington lock PortWiFi & BTWi-Fi 6 (AX200), BT 5.2OSP reinstall Win 11 Pro, for Win10/11, Linux (Ubuntu\\Debain\\Rocky Linux\\Vmware Esxi)Power Adapter19V 6.32A (90W), DC specification 5.5 * 2.5MM; support wide voltage DC 9V-36V inputOperating Environment-1055 Dimension225 x 175 x 55MM 1.7 kg ( 8.86 x 6.89 x 2.17 inch 3.75 lbs)FunctionSupport TPM 2.0, Auto Power On (configured in BIOS), Wake on LAN, Wake System From RTC Alarm, Watchdog, PXE (only supports UEFI boot mode) WEIDIAN H4 12th Gen Core i5 1235U Mini PC Detailed Data
