KINGDEL K9 Compact PC i7 10th Gen. Max 4.90GHz 8MB Cache CPU 16GB DDR4 RAM 256GB SSD UHD Graphics Support 4K at 24Hz, HD VGA 14xGPIO
- PROCESSORMini Desktop Computers comes with 10th Generation Core i7 Processors i7-10510U, 4 Cores, 8 Threads, 1.80 GHz Base Frequency, 4.90 GHz Max Turbo Frequency, 8 MB Smart Cache, 15W TDP.
- RAM & SSD Mini Computer preinstalled 16GB DDR4 RAM, 256GB SSD.
- PROCESSOR GRAPHICSMini Desktop with UHD Graphics for 10th Gen Processors, Support 4K at 60Hz, 300MHz Graphics Base Frequency, Max Resolution: 4096x2304@24Hz(HD).
- CONNECTORSThis KINGDEL small computer includes Front-Panel: 1xSwitch Extend Pin, 1xAT/ATX, 4xCOM(RS485/422/232), 1xPS/2, 2xUSB2.0, 1xMIC/SPK, 1xClear CMOS Button, 1xPower Switch. Back-panel: 14xGPIO(7 input, 7 output),2xCOM(RS232), 2xLAN, 1x3 Pin Phoenix, 4xUSB3.0, 1xHD, 1xVGA, 2xAntennas.
- WHAT IN BOX1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag, Antennas, 1xHD cable, 1xSATA Cable, 1xUser Manual.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
SPECIFICATIONS
Processor: 10th Generation Core i7 Processors i7-10510U
CPU Specifications: 4 Cores, 8 Threads, 1.80 GHz Base Frequency, 4.90 GHz Burst Frequency, 8 MB Cache, 15W TDP.
Processor Graphics: UHD Graphics for 10th Gen. Processors, Support 4K at 60Hz, 300MHz Graphics Base Frequency, Max Resolution: 4096x2304@24Hz(HD).
Memory: Max Memory Size (dependent on memory type) 64GB; DDR4 SODIMM Memory Types; Two Memory Channels.
Storage: 1x mSATA SSD, 1x M.2 NVME 2280 ( PCIe ), 1x 2.5 inch HDD/SSD.
Other Function: Watch dog, one key restore, non-disk booting, wake up on LAN, automatically power on after power restore.

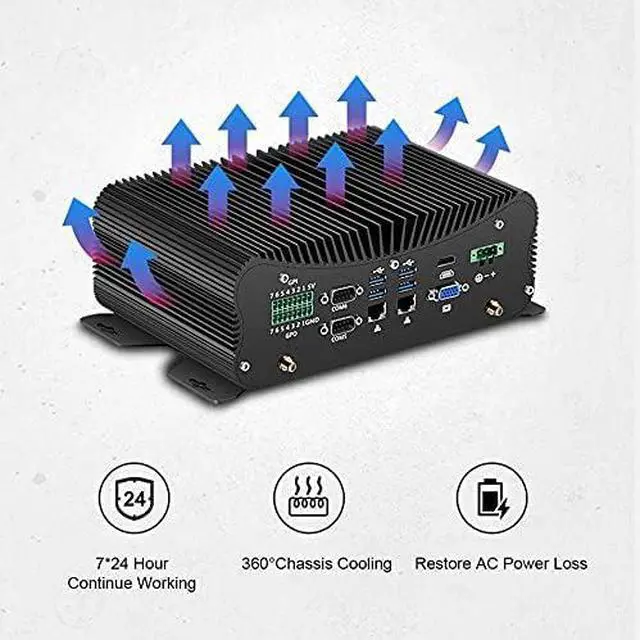

Construction: Fanless passive cooling
Weight: 2.2KG
Size: 249 x 150 x 86 mm
Input: AC100-240V
Output: DC12V-5A
CONNECTORS

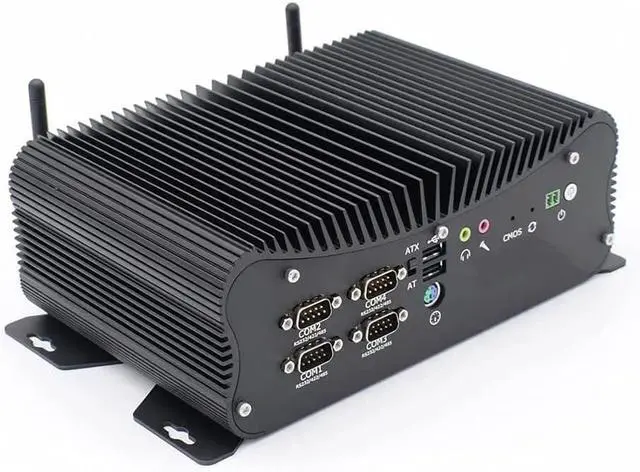

Front-Panel:
1xSwitch Extend Pin
1xAT/ATX
4xCOM (RS485/422/232)
1xPS/2 (support keybaord and mouse)
2xUSB2.0
1xMIC/SPK
1xClear CMOS Button
1xPower Switch
Back-Panel:
14xGPIO (7 input, 7 output)
2xCOM (RS232)
2xLAN
1x3 Pin Phoenix
4xUSB 3.0
1xHD
1xVGA
2xAntennas
PACKAGE CONTENT
1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag, Antennas, 1xHD cable, 1xSATA Cable, 1xUser Manual.
Processor: 10th Generation Core i7 Processors i7-10510U
CPU Specifications: 4 Cores, 8 Threads, 1.80 GHz Base Frequency, 4.90 GHz Burst Frequency, 8 MB Cache, 15W TDP.
Processor Graphics: UHD Graphics for 10th Gen. Processors, Support 4K at 60Hz, 300MHz Graphics Base Frequency, Max Resolution: 4096x2304@24Hz(HD).
Memory: Max Memory Size (dependent on memory type) 64GB; DDR4 SODIMM Memory Types; Two Memory Channels.
Storage: 1x mSATA SSD, 1x M.2 NVME 2280 ( PCIe ), 1x 2.5 inch HDD/SSD.
Other Function: Watch dog, one key restore, non-disk booting, wake up on LAN, automatically power on after power restore.
Construction: Fanless passive cooling
Weight: 2.2KG
Size: 249 x 150 x 86 mm
Input: AC100-240V
Output: DC12V-5A
CONNECTORS
Front-Panel:
1xSwitch Extend Pin
1xAT/ATX
4xCOM (RS485/422/232)
1xPS/2 (support keybaord and mouse)
2xUSB2.0
1xMIC/SPK
1xClear CMOS Button
1xPower Switch
Back-Panel:
14xGPIO (7 input, 7 output)
2xCOM (RS232)
2xLAN
1x3 Pin Phoenix
4xUSB 3.0
1xHD
1xVGA
2xAntennas
PACKAGE CONTENT
1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag, Antennas, 1xHD cable, 1xSATA Cable, 1xUser Manual.
