4x10Gbe Intel X710 SFP+ Micro Firewall Appliance Router with Intel 14th Gen Core Ultra 5 125H, AI MINI PC 16G DDR5 RAM 1TB M.2 PCIe SSD USB4 Support Pfsense|OPNsense|Openwrt|Windows
- Professional Firewall & Home SERVERMOGINSOK Home Lab/Server Firewall Mini PC- MGNAS14-Pro, a professional 10gbe sfp+ firewall router pc equipped with the latest intel core Ultra 5 125H 14Cores/18Threads up to 4.5GHz and integrated with intel NPU support AI Boost and Powerfulful Intel Arc Graphics card which maximizes the performance of the 2.5GbE port & 10gbe SFP+ port, bring you a smooth secured and encrypted network environment which you can use it to build as a HOME SERVER/Firewall Router.

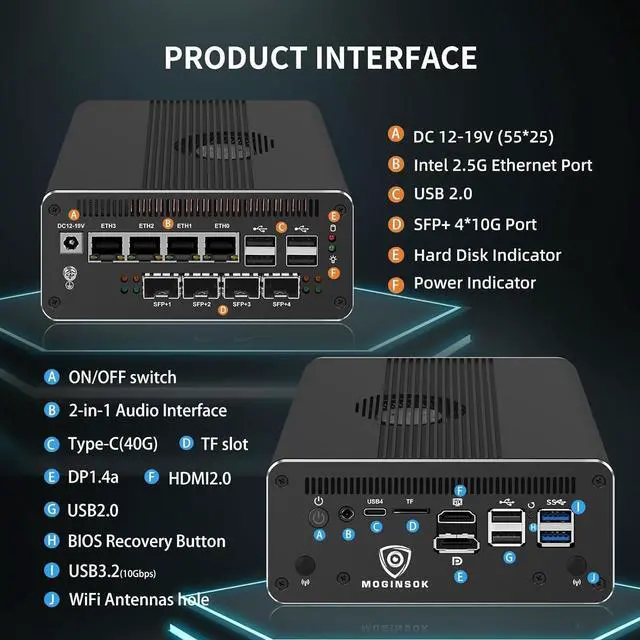

- Rich I/O to meet your needs10Gbe Firewall Appliance MGNAS14-Pro With 1xHDMI 2.0 +DP 1.4a+1*TYPE-C USB 4.0 Support for Triple display up to 3x4K@60Hz, Dual DDR5 RAM slot support for up to 2x48GB SO-Dimm DDR5 Ram 4800MHz/5200MHz/5600MHz and an M.2 NVMe/PCIe 4.0 2280 SSD slot up to 4TB Storage(not included)and 1XSATA 3.0 SSD/HDD slots (no space to install internally), this device is perfect for your firewallVMRouterHome serverhome router needs.
- 4xSFP 10GbE & 4x2.5GbEThis 10gbe Firewall R
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

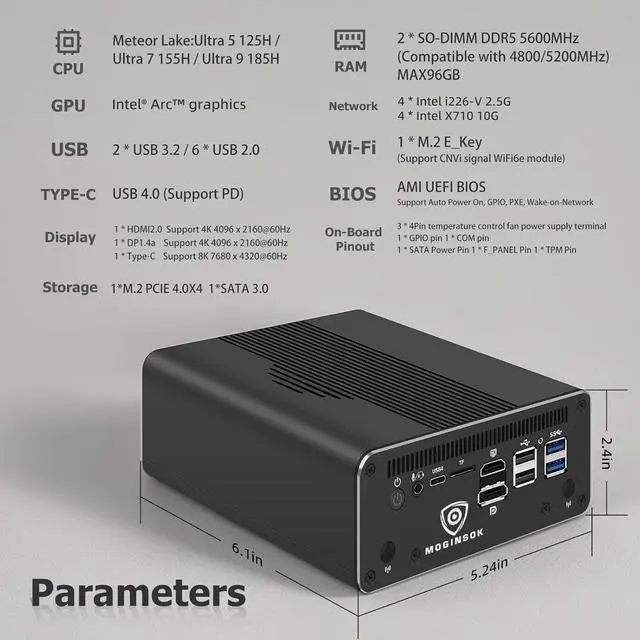

CPU14th Gen Intel Core Ultra 5 125H(14C/18T) Up to 4.5GHz / Ultra 7 155H(16C/22T) up to 4.8GHzNetwork Card4*Intel I226V 2.5Gb network card+4*Intel X710 10Gbe network card Ram2*Laptop SO-Dimm DDR5 RAM slots support 8/16/24/32/48/96G DDR5, (suggest to install SamSung/Kingston/Crucial etc. for 32G single )Storage1* M-key M.2 NVME PCIe 4.0X4 2280 slot+1*SATA3.0 SSD/HDD Slot(Install externally)Support OS Preinstall Pf-sense CE 2.7.x /Compatiable with OPNsense/ Ubuntu /Windows /VM OS(like ESXI/PROXMOX/Debian etc.)Display1*HDMI 2.0 +1*DP 1.4a Support 4k@60Hz +1TYPE-C Support 8K@60HzUSB 2 * USB3.2 6*USB 2.0+1*USB C 4.0 40G/bps(SUPPORT PD at least 19V 120W)Expansion1*M.2 E-Key support CNVi WIFI ModemGPUIntel integrated ARC GraphicsSize155(L)*133(W)*61(H)mm Compatible with various open source operating systems and software like OPNsense ,dd-wrt, FreeBSD, ClearOS, CentOS, OpenVPN , PVE, ESXI, vmware etc. (except "no ram no ssd" configurations, others are default installed with PF-sense CE 2.7.X ).
Equipped with 4x Intel i226-V 2.5GbE Network Card and 4*Intel X710 network card , bring you a new era of high speed network (To reach to 2.5Gb/10gbe speed, need your network, cables, upstream and downstream equipment also support 2.5GbE).
Firewall appliance mini pc MGNAS14-PRO is applicable to: office computer, soft routing, virtualization, thin client, edge computing, visual inspection, industrial control, cloud server etc.

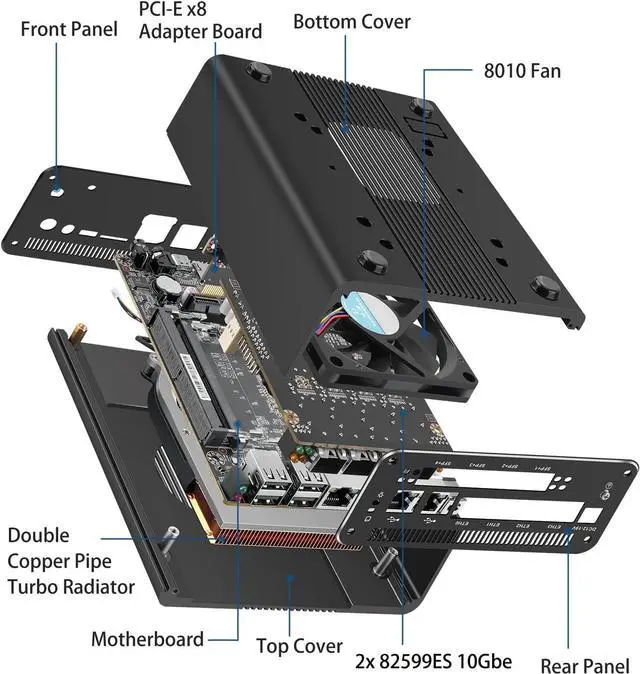

The body shell of this MOGINSOK 10gbe firewall pc is all made of aluminum and with upgraded version slient copper fan cooling design, compare to last version the cooling fan is more powerful but also reduce noise.
What is the product return & repair policy?
We offer 12months replacement period for nonhuman damage3 years hardware gurantee and life-time support, any questions just ask US.
Where can i get the updates on the bios ?
We'll update the bios from time to time(depends on needs), you can ask us for it if you have any requirements.
What is the password and user name ? And what is the IP address ?
Default User name is : admin, password is : "p f s e n s e", IP address is :192.168.0.1 for CE 2.7.X version
What can i do if the network card is not recongized ?
First need to check the OS support 2.5GBE/10Gbe or not , then check the drivers are ok or not, you can also send us messages for further details of the issue,.
Secure Your Network with MOGINSOK 10GBE Firewall Appliance MGNAS14 PRO Support Multiple Operating Systems 4*Intel I226-V +4*Intel X710network card PVE Virtualization Application Quality Cooling Fan for work 24*7 What is the product return & repair policy?
Where can i get the updates on the bios ?
What is the password and user name ? And what is the IP address ?
What can i do if the network card is not recongized ?
Equipped with 4x Intel i226-V 2.5GbE Network Card and 4*Intel X710 network card , bring you a new era of high speed network (To reach to 2.5Gb/10gbe speed, need your network, cables, upstream and downstream equipment also support 2.5GbE).
Firewall appliance mini pc MGNAS14-PRO is applicable to: office computer, soft routing, virtualization, thin client, edge computing, visual inspection, industrial control, cloud server etc.
The body shell of this MOGINSOK 10gbe firewall pc is all made of aluminum and with upgraded version slient copper fan cooling design, compare to last version the cooling fan is more powerful but also reduce noise.
What is the product return & repair policy?
We offer 12months replacement period for nonhuman damage3 years hardware gurantee and life-time support, any questions just ask US.
Where can i get the updates on the bios ?
We'll update the bios from time to time(depends on needs), you can ask us for it if you have any requirements.
What is the password and user name ? And what is the IP address ?
Default User name is : admin, password is : "p f s e n s e", IP address is :192.168.0.1 for CE 2.7.X version
What can i do if the network card is not recongized ?
First need to check the OS support 2.5GBE/10Gbe or not , then check the drivers are ok or not, you can also send us messages for further details of the issue,.
Secure Your Network with MOGINSOK 10GBE Firewall Appliance MGNAS14 PRO Support Multiple Operating Systems 4*Intel I226-V +4*Intel X710network card PVE Virtualization Application Quality Cooling Fan for work 24*7 What is the product return & repair policy?
Where can i get the updates on the bios ?
What is the password and user name ? And what is the IP address ?
What can i do if the network card is not recongized ?
