SJRC N150 Firewall Appliance (up to 3.6GHz), Dual 10GbE SFP+ Mini PC with 2 x i226V 2.5GbE LAN, Barebone Micro Router Computer 4K, USB3.2, Support OPNsense/Win (No RAM/SSD/System)
- Powerful N150 Processor: Firewall device with Low Power N150 CPU (6MB cache, 4C/4T, up to 3.6GHz), 6W TDP, more powerful and better than the N100 with the same power consumption, providing a faster and smoother user experience and getting a minor 200 MHz bump in the clocks. Supporting Win, Linux, OPNsense, ProxmoxVE, ESXi, pf-sense
- High Speed Network: With 2 x i226V 2.5GbE LAN and 2 x SFP+ 82599ES 10 Gigabit ports for ultra-fast, stable connections. Ideal for advanced home networks, small business setups, or as a high-performance firewall solution, high-bandwidth applications
- Ample Storage Solutions: DDR5 4800MHz SO-DIMM memory slot (up to 32GB RAM, compatible with 5200/5600MHz), front M.2 E Key WiFi to NVMe slot (with adapter board), rear M.2 NVMe 2280 SSD slot max 2T, and SATA 3.0 port, capable of expanded storage capacity
- Rich Connectivity Options: Supports dual 4K@60Hz video output via dual HD 2.0 ports, 1 x USB 3.2 Gen1 ports, 1 x Type-C (USB3.2 Gen1), 4 x USB 2.0, a TF card s
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

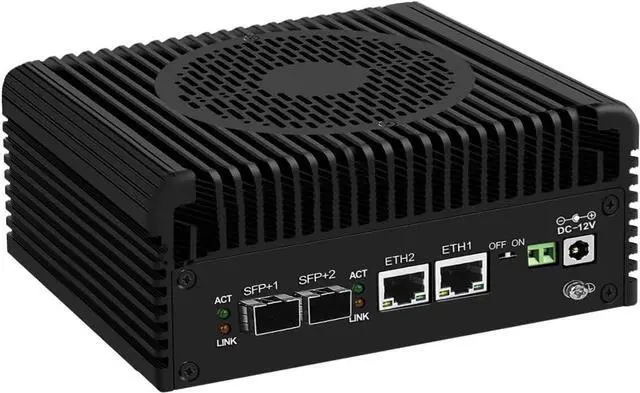

SJRC Dual 10GbE SFP+ Dual 2.5G LAN N150 Firewall Mini PC
Please note: This is a barebone only. A system memory, a storage drive and an operating system are needed to complete this item
CPU: In-tel N150, 4 cores, 4 threads, 6MB Cache, up to 3.6 GHz.
GPU: UHD Graphics.
TDP: 6 W.
System: NO System
RAM: 1 x DDR5 4800MHz SODIMM slot, up to 32 GB. Note: It will take 5-10 minutes for the device to detect the RAM for the first time. Please be patient.

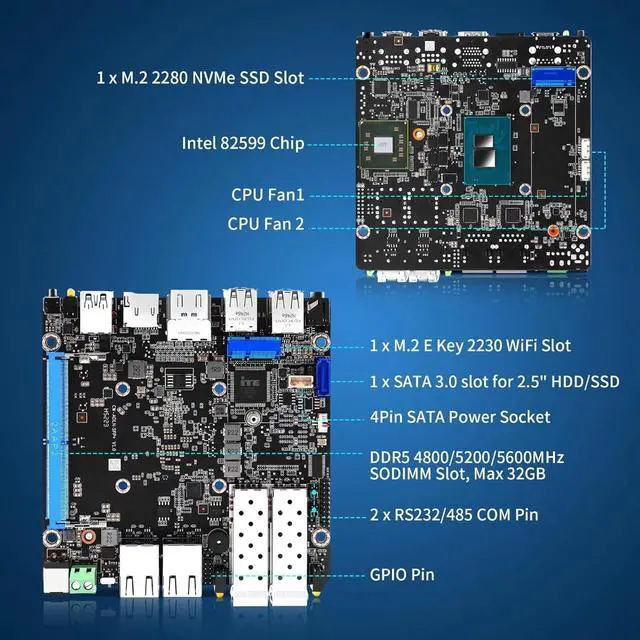

SSD: 1 x front M.2 E Key 2230 WiFi to NVMe slot (Support WiFi6/BT module, through adapter board for M.2 NVMe signal is inserted by default), rear M.2 NVMe 2280 SSD slot (thermal pad and thermal paste included) .

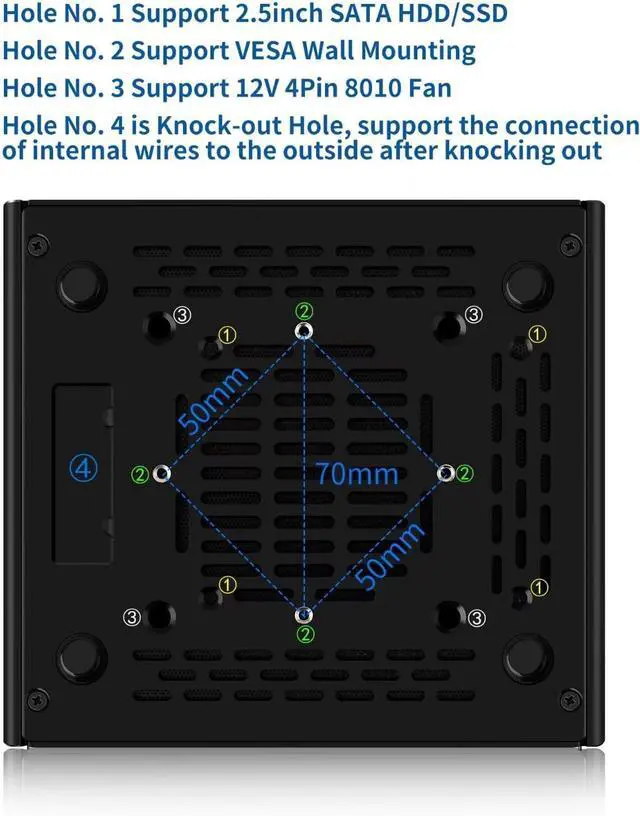

Expand: 1 x SATA 3.0 slot for 2.5" HDD/SSD.
LAN Port: 2 x 10GbE SFP+(82599ES), 2 x 2.5GbE I226-V RJ45
TF Slot: TF card holder support system boot or data storage.
Display: 2 x HD2.0 4K@60HZ 2 display.
FAN: 2 x CPU FAN Pins and 1 x fan, built-in solid aluminum housing and copper block.
Feature: Support AES-NI, Auto power on, PXE boot, Wake on LAN.
Compatibility: Compatible with Win10, Win11, Linux, OPNsense, Linux, Unbutun, ESXI, OpenWrt

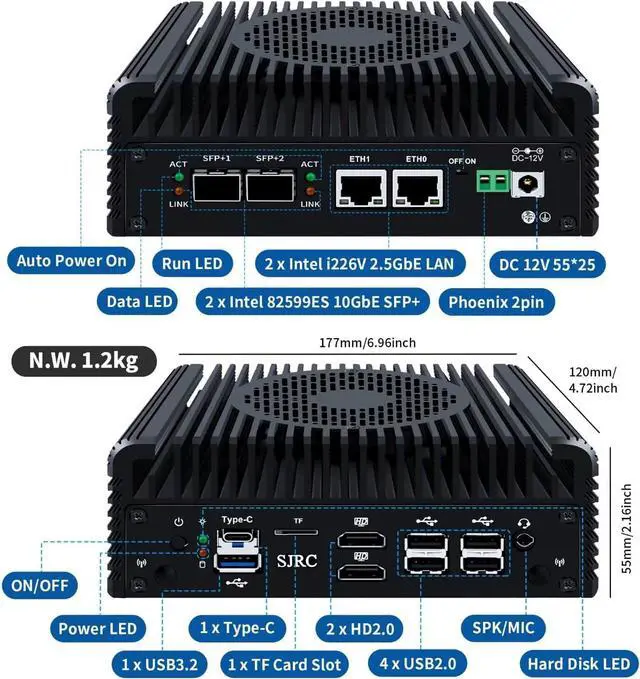

I/O: 2 x SFP+, 2 x LAN, 1 x Type-C 3.2 Gen1, 1 x USB3.2 Gen1, 4 x USB2.0, 1 x TF card slot, 1 x SPK/MIC, 2 x HD2.0.
Firewall Case: Aluminum alloy
Working Temperature: 0°c~70°c
Power: DC 12V 55*22
Packing List: 1 x SJRC Firewall Dual SFP+ Mini PC, 1 x Power Adapter.
Please note: This is a barebone only. A system memory, a storage drive and an operating system are needed to complete this item
CPU: In-tel N150, 4 cores, 4 threads, 6MB Cache, up to 3.6 GHz.
GPU: UHD Graphics.
TDP: 6 W.
System: NO System
RAM: 1 x DDR5 4800MHz SODIMM slot, up to 32 GB. Note: It will take 5-10 minutes for the device to detect the RAM for the first time. Please be patient.
SSD: 1 x front M.2 E Key 2230 WiFi to NVMe slot (Support WiFi6/BT module, through adapter board for M.2 NVMe signal is inserted by default), rear M.2 NVMe 2280 SSD slot (thermal pad and thermal paste included) .
Expand: 1 x SATA 3.0 slot for 2.5" HDD/SSD.
LAN Port: 2 x 10GbE SFP+(82599ES), 2 x 2.5GbE I226-V RJ45
TF Slot: TF card holder support system boot or data storage.
Display: 2 x HD2.0 4K@60HZ 2 display.
FAN: 2 x CPU FAN Pins and 1 x fan, built-in solid aluminum housing and copper block.
Feature: Support AES-NI, Auto power on, PXE boot, Wake on LAN.
Compatibility: Compatible with Win10, Win11, Linux, OPNsense, Linux, Unbutun, ESXI, OpenWrt
I/O: 2 x SFP+, 2 x LAN, 1 x Type-C 3.2 Gen1, 1 x USB3.2 Gen1, 4 x USB2.0, 1 x TF card slot, 1 x SPK/MIC, 2 x HD2.0.
Firewall Case: Aluminum alloy
Working Temperature: 0°c~70°c
Power: DC 12V 55*22
Packing List: 1 x SJRC Firewall Dual SFP+ Mini PC, 1 x Power Adapter.
