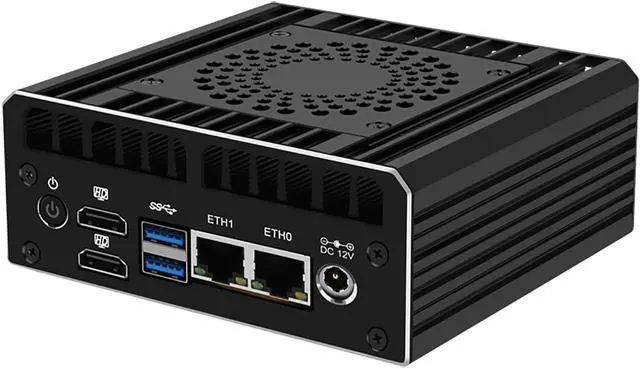

KINGDEL Micro Firewall Appliance with i3-N305 CPU 8C/8T, 32GB DDR5 RAM, 1TB NVMe SSD, 2* i226-V 2.5G LAN Mini Router Computer with Dual Display 2*HD Support 4K 2xUSB3.2
- PROCESSORThis Mini PC is built-in i3-N305 Processors, 6 MB Smart Cache, 8 Cores 8 Threads, 1.80GHz Base Frequency, 3.80 GHz Max Turbo Frequency, 6W TDP.
- RAM & SSDThis Desktop Computer with Fan preinstalled 32GB DDR5 4800MHz RAM, 1TB NVMe SSD.
- PROCESSOR GRAPHICSThe Mini Business PC comes with UHD Graphics; 1.25GHz Graphics Burst Frequency; Max Resolution (HD): 4096 x 2160@60Hz.
- 2* I226-V LANThe Firewall Mini PC is powered by i226-V NIC chips. It has good compatibility with soft router, firewalls and other network applications.
- InterfacesMicro Firewall Appliance comes with switch, 2 x HD, 2 x USB3.2, 2 x LAN, DC-IN.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product Specifications
Processor: Core i3-N305 Processor, 8 Cores, 8 Threads; Base Frequency: 1.8GHz, Max. Turbo Frequency: 3.8GHz, 6MB Smart Cache, 6W TDP.
Processor Graphics: UHD Graphics. Base Frequency: 300MHz; Max Dynamic Frequency: 1.25GHz.
RAM: Supports single SO-DIMM DDR5 memory with a maximum capacity of 32GB
Storage: M.2 NVMe PCle 3.0 *4, compatible with 2242 and 2280 size
Dual 4K Display Output: 2*HD2.0 interfaces Support dual display 4K@60Hz
Network: Onboard dual i226-V 2.5G network ports
Motherboard:
-1 * 10 pin GPIO interface (four in, four out) 1 * COM pin
-2 * 4-pin temperature controlled Cooling fans with a 12V power socket and a pin distance of 1.25mm
-2 * M.2 E keys (2230) Support WF/BT module expansion
CONNECTOR

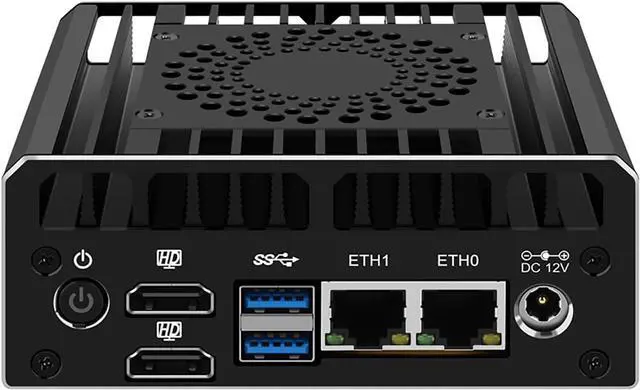

Power ON/OFF, 2 x HD2.0(4096 x 2160@60Hz), 2 x USB3.2 Gen2 10Gbps, 2 x i226-V 2.5G LAN, DC-IN
CONTENT
Mini PC, Power Supply, 1x HD Cable.
Processor: Core i3-N305 Processor, 8 Cores, 8 Threads; Base Frequency: 1.8GHz, Max. Turbo Frequency: 3.8GHz, 6MB Smart Cache, 6W TDP.
Processor Graphics: UHD Graphics. Base Frequency: 300MHz; Max Dynamic Frequency: 1.25GHz.
RAM: Supports single SO-DIMM DDR5 memory with a maximum capacity of 32GB
Storage: M.2 NVMe PCle 3.0 *4, compatible with 2242 and 2280 size
Dual 4K Display Output: 2*HD2.0 interfaces Support dual display 4K@60Hz
Network: Onboard dual i226-V 2.5G network ports
Motherboard:
-1 * 10 pin GPIO interface (four in, four out) 1 * COM pin
-2 * 4-pin temperature controlled Cooling fans with a 12V power socket and a pin distance of 1.25mm
-2 * M.2 E keys (2230) Support WF/BT module expansion
CONNECTOR
Power ON/OFF, 2 x HD2.0(4096 x 2160@60Hz), 2 x USB3.2 Gen2 10Gbps, 2 x i226-V 2.5G LAN, DC-IN
CONTENT
Mini PC, Power Supply, 1x HD Cable.
