Fan Mini PC I5-1345U with 6*i226 2.5G LAN,DDR4 1*M.2, 4*USB3.0,HDMI,DP,Mini Desktop Computer Support Dual Band WiFi for Industry Business, NO RAM NO SSD (NO RAM NO SSD)
- Powerful I5-1345U Processor: I5-1345U Processor, 10 Cores 12 Threads, 12M Cache, Max Turbo Frequency 4.7 GHz, TDP 15W. Win11 Pro pre-installed, compatible with OPNsense, Linux, ESXI, OpenWrt and other systems. Press "Delete" key to enter BIOS setup, supports Auto Power On, Wake On Lake, GPIO, PXE
- Hexa 2.5GbE LAN: Mini Router PC with 6 x i226-V network card chip full UDE2.5G with filter connector, 2.5x faster than common Gigabit Ethernet. Soft Router can monitor network data, improve network security, powerful and widely used. 1 x M.2 E Key 2230 WiFi slot, default with WiFi to NVMe adapter board
- DDR5 Memory & Large Storage Capacity: Firewall box computer with 1xDDR5 SODIMM non-ecc ram slot, support 4800MHz, 1 x M.2 2280 NVMe SSD slot, 1 x SATA 3.0 for 2.5" SSD/HDD (SATA 3.0 Cable Included)
- UHD Graphics & Dual Display: I5-1345U processor integrated UHD Graphics, HD and DP dual display interfaces support 4K@60Hz.

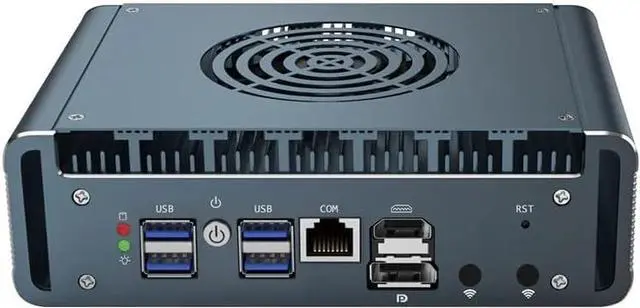

- Rich interfaces: 6 x2.5G i226V-LAN,4 xUSB3.0, 1*COM console,HDM
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product Highlight
I5-1345U model:
-6xIntel i226-V 2.5G RJ45 LANs, 4xUSB3.0,1xRJ45 COM console.
-1xDDR5 SODIMM non-ecc ram slot, support 4800MHz.
-Support two storage: 1xM.2 NVMe/PCIe3.0x2 2280 SSD+1x2.5''SATA3.0 7mm SSD/HDD.
-Support 1xHDMI2.0 and 1xDP dual 4K video display.
-Support AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.
-Innovation: It is flexible to change between fanless system and fan system. A fan built in solid aluminum case with cooling fins gets much better heat dissipation to release CPU performance totally, sound of the fan is low. You can unplug fan pin off motherboard to make it fanless system if you want silence totally.
I5-1345U model:
-6xIntel i226-V 2.5G RJ45 LANs, 4xUSB3.0,1xRJ45 COM console.
-1xDDR5 SODIMM non-ecc ram slot, support 4800MHz.
-Support two storage: 1xM.2 NVMe/PCIe3.0x2 2280 SSD+1x2.5''SATA3.0 7mm SSD/HDD.
-Support 1xHDMI2.0 and 1xDP dual 4K video display.
-Support AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.
-Innovation: It is flexible to change between fanless system and fan system. A fan built in solid aluminum case with cooling fins gets much better heat dissipation to release CPU performance totally, sound of the fan is low. You can unplug fan pin off motherboard to make it fanless system if you want silence totally.
