Fanless Industrial PC, IPC, Mini Computer, I3 5005U, BH22, PXE, WOL Supported, Type-C, 2 x COM, 2 x LAN, VGA, 2 x HDMI, 16G RAM, 128G SSD, 1TB HDD
- Industrial grade, fully functional, all the power and functionality of a desktop computer in a compact, stylish chassis, powered by core i3 5005u processor, ideal for industrial and commercial applications
- Windows 11 pro (64 bit) installed, set up is effortless and it's ready to run straight out of the box
- Fanless passive cooling design, silent solution that\u2019s ultra energy-efficient, the advanced fanless passive cooling design maximizes heat dissipation, meaning all operations can be conducted in absolute silence

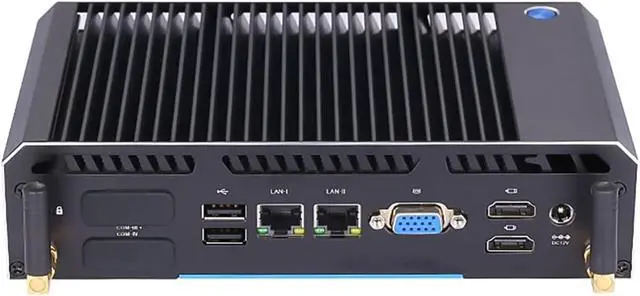

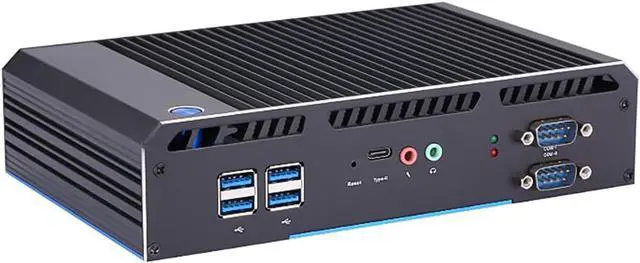

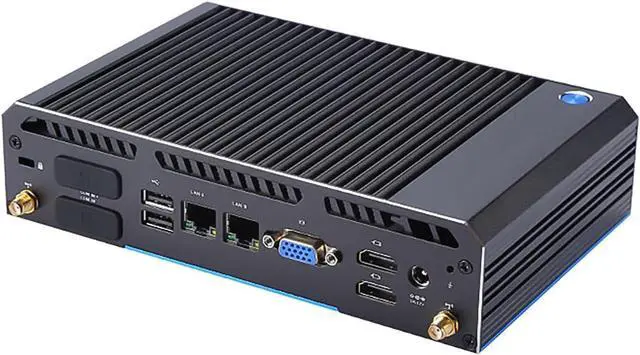

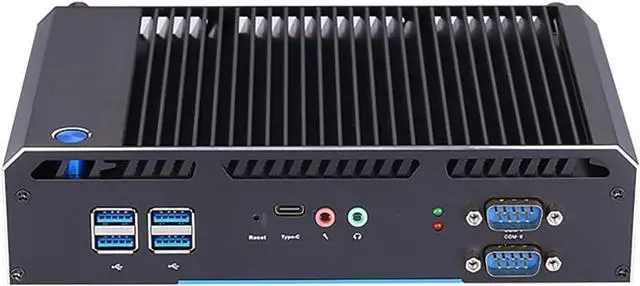

- ANDAQI BH22 designed with sw, 4 x usb3.0, reset, type-c, mic, spk, 2 x com, lock slot, 2 x usb2.0, 2 x lan, vga, 2 x hdmi, dc_in, industrial aesthetic design and reasonable interface layout
- Size at 197.4 x 126.3 x 47.5mm, 1.2kgs, 12v5a power supply, with power cord, all use a big brand memory and ssd/hdd with quality assurance, very powerful fanless industrial mini pc
+
+
Overview
Specs
Reviews
Model Number:ANDAQI BH22
Material:Aluminum alloy
CPU:Core i3-5005U Processor (3M Cache, 2.00 GHz)
Memory:2 x SO DIMM DDR3L-1333/1600 max. 16GB RAM
Storage:1 x mSata SSD and 1 x 2.5 inch sata SSD/HDD
Network:Realtek RTL8168/8111E
WiFi & BT:M.2 PCIE
I/O:SW, 4 x USB3.0, Reset, Type-C, MIC, SPK, 2 x COM, Lock Slot, 2 x USB2.0, 2 x LAN, VGA, 2 x HDMI, DC_IN
Expansion:2 x COM RS232, 19V-36V optional, contact us to customize
TDP:15W
Cooling Method:Fanless passive cooling
Working Temperature:-10°C~60°C
Storage Environment:-10°C~60°C
Operating Humidity:0~95% (no condensation)
Power Supply:100-240V AC/50-60Hz, 12V5A
Weight:1.2kgs
Size:197.4 x 126.3 x 47.5mm

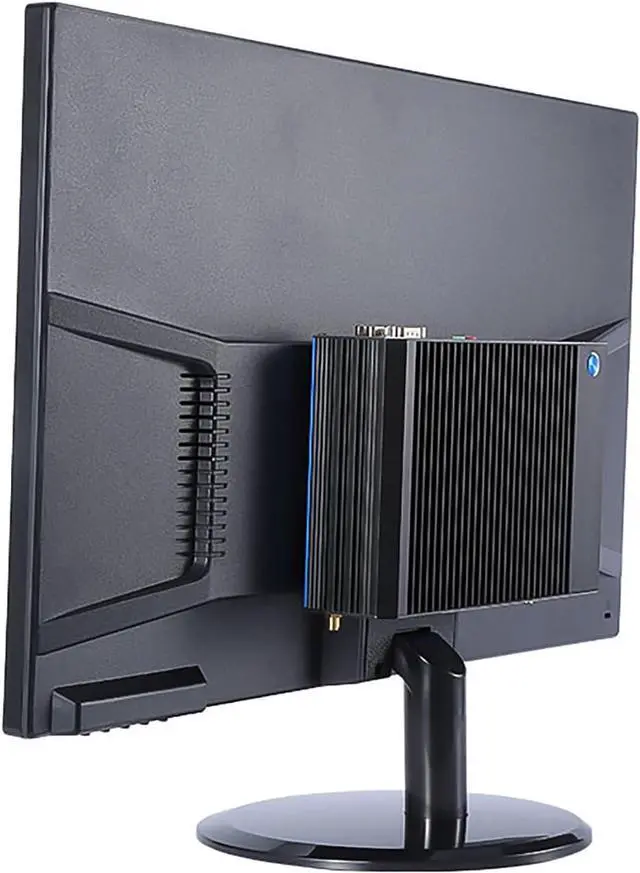

Packing List:ANDAQI BH22 mini pc, vesa mount, power supply, power cord, user manual, screws, warranty card
Display:Support triple display in duplicate, extend mode, HDMI up to 2560 x 1600@60Hz, VGA up to 1920 x 1080@60Hz
Virtualization:VT-D/VT-X
Function:Support pxe boot, wake on Lan WOL, auto power on
System Support:Windows 7/10/11, Linux Ubuntu etc
Default System:Windows 11 pro in English
ATTENTION: Other options, Linux or other system, other system language, do leave ANDAQI message on the order, thank you
Material:Aluminum alloy
CPU:Core i3-5005U Processor (3M Cache, 2.00 GHz)
Memory:2 x SO DIMM DDR3L-1333/1600 max. 16GB RAM
Storage:1 x mSata SSD and 1 x 2.5 inch sata SSD/HDD
Network:Realtek RTL8168/8111E
WiFi & BT:M.2 PCIE
I/O:SW, 4 x USB3.0, Reset, Type-C, MIC, SPK, 2 x COM, Lock Slot, 2 x USB2.0, 2 x LAN, VGA, 2 x HDMI, DC_IN
Expansion:2 x COM RS232, 19V-36V optional, contact us to customize
TDP:15W
Cooling Method:Fanless passive cooling
Working Temperature:-10°C~60°C
Storage Environment:-10°C~60°C
Operating Humidity:0~95% (no condensation)
Power Supply:100-240V AC/50-60Hz, 12V5A
Weight:1.2kgs
Size:197.4 x 126.3 x 47.5mm
Packing List:ANDAQI BH22 mini pc, vesa mount, power supply, power cord, user manual, screws, warranty card
Display:Support triple display in duplicate, extend mode, HDMI up to 2560 x 1600@60Hz, VGA up to 1920 x 1080@60Hz
Virtualization:VT-D/VT-X
Function:Support pxe boot, wake on Lan WOL, auto power on
System Support:Windows 7/10/11, Linux Ubuntu etc
Default System:Windows 11 pro in English
ATTENTION: Other options, Linux or other system, other system language, do leave ANDAQI message on the order, thank you
