Fanless Mini PC N100 16GB DDR4 128GB NVMe 2 * 2.5G Nics/2*COM NVMe DDR4/2*HD/1*DP Type-C Solid Firewall PC Industrial Mini Computer
- Equipped with 2 i226-V 2.5G Gigabit Ethernet ports, supporting high-speed and stable data transmission; At the same time, it provides 1 USB 3.2, 2 USB 3.0, 2 USB 2.0, 1 Type-C interface, and 2 COM RS232/RS485 serial ports, making it easy to connect various peripherals such as keyboards, mice, portable hard drives, industrial control devices, etc., meeting the diverse connection needs of both home and industrial scenarios.
- Supports single DDR4 SODIMM non ECC memory expansion, up to 32GB, compatible with 2666/3200MHz frequencies, providing sufficient power for multitasking and data processing; In terms of storage, a dual solution design is adopted, which can simultaneously carry one M.2 NVMe/PCIe 3.0x2/SATA 2280 SSD and one 2.5-inch SATA 3.07mm SSD/HDD, balancing high-speed read and write and large capacity storage requirements.
- Adopting a new generation all aluminum shell with elongated tooth shaped heat dissipation fins, coupled with copper thermal pads to accelerate heat conduction
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product Highlight

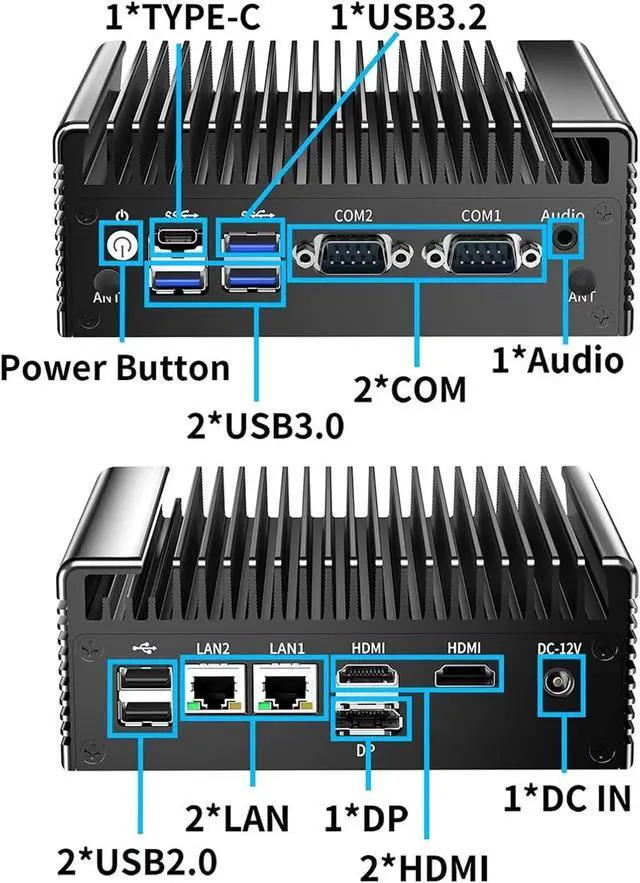

-2xi226-V 2.5G RJ45, 1xUSB3.2, 2xUSB3.0, 2xUSB2.0, 1xType-C, 2xCOM RS232/RS485, 2xHDMI, 1xDP, 1xAudio.
-1xDDR4 SODIMM non-ecc ram slot, support up to 32GB 2666/3200MHz.
-Support two storage: 1xM.2 NVMe/PCIe3.0x2/SATA 2280 SSD+1x2.5''SATA3.0 7mm SSD/HDD.
-1xM.2 2230 WiFi slot(PCIE signal), 1xSIM slot(optional), 1xMPCIE slot, support WiFi/4G LTE(only USB signal) module connection.
-Support 3 display: 2xHDMI, 1xDP, 3x4K UHD video display.
-Support AES-NI, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.
-New Generation solid aluminum shell with longer tooth-fins as heat-sink, copper pad for faster heat conduction, more efficient cooling performance.
-Fanless system without cooling fan, noiselessness and durability fit for home use and industrial grade field, work as long as 7x24 hours.
Package List
1xMini PC
1xPower Adapter
1xPower Cable
1xSATA cable
-2xi226-V 2.5G RJ45, 1xUSB3.2, 2xUSB3.0, 2xUSB2.0, 1xType-C, 2xCOM RS232/RS485, 2xHDMI, 1xDP, 1xAudio.
-1xDDR4 SODIMM non-ecc ram slot, support up to 32GB 2666/3200MHz.
-Support two storage: 1xM.2 NVMe/PCIe3.0x2/SATA 2280 SSD+1x2.5''SATA3.0 7mm SSD/HDD.
-1xM.2 2230 WiFi slot(PCIE signal), 1xSIM slot(optional), 1xMPCIE slot, support WiFi/4G LTE(only USB signal) module connection.
-Support 3 display: 2xHDMI, 1xDP, 3x4K UHD video display.
-Support AES-NI, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.
-New Generation solid aluminum shell with longer tooth-fins as heat-sink, copper pad for faster heat conduction, more efficient cooling performance.
-Fanless system without cooling fan, noiselessness and durability fit for home use and industrial grade field, work as long as 7x24 hours.
Package List
1xMini PC
1xPower Adapter
1xPower Cable
1xSATA cable
