VENOEN Quad Core Mini PC Core i7 7820HK/HQ,Win 10 Linux Mini Computer,32G DDR4/512G SSD,HD+DP Support 2 Monitors,2.4G+5.8G WiFi,BT 4.2,Dual LAN NUC PC

1. 7th Gen 14nm CPU Kaby Lake Core i5 7300HQ 4cores 4threads 2.5GHz up to 3.5GHz 6MB cache TDP 45W .
2. 7th Gen 14nm CPU Kaby Lake Core i7 7820HK 4cores 8threads 2.9GHz up to 3.9GHz 8MB cache TDP 45W .
Memory: 2*DDR4 ram slots, max 32GB MHz
Storage: 2*M.2 2280 SATA/NVME PCIE3.0 x 4 SSD
Graphic card: HD 630 Graphics

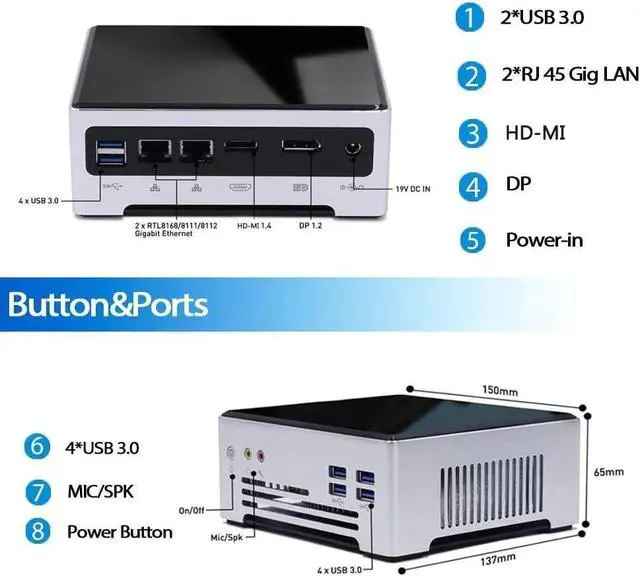

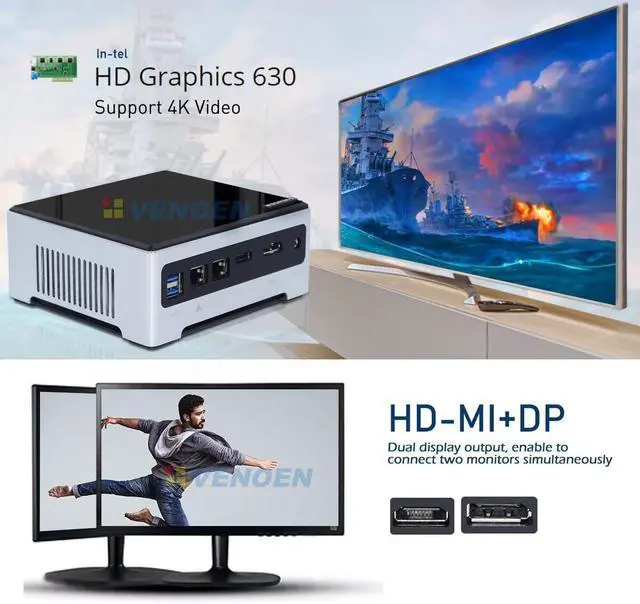

Video ports: 1*HD +1*DP dual displays, support 4K 60Hz.
Network card: 2*RJ45 Gigabit Ethernet+2.4G/5G AC WiFi & BT 4.2,
USB: 6*USB3.0
Shell: Black color aluminum alloy
Heat-sink: Fan Cooling
Weight: Net 1.5kg, Gross 2.5kg
Dimension: 160*150*65mm
Power Supply: 19V 110W
Video ports: 1*HD +1*DP dual displays
Network card: 2*RJ45 Gigabit Ethernet
2.4G/5G AC WiFi/BT
USB: 6*USB3.0
Audio: SPK & MIC

With Ultra HD native 4K output,It can become an ideal place for family entertainment, watch videos,browse on the Internet,games or office work.
Heat-sink: Fan Cooling
Shell: Black color aluminum alloy

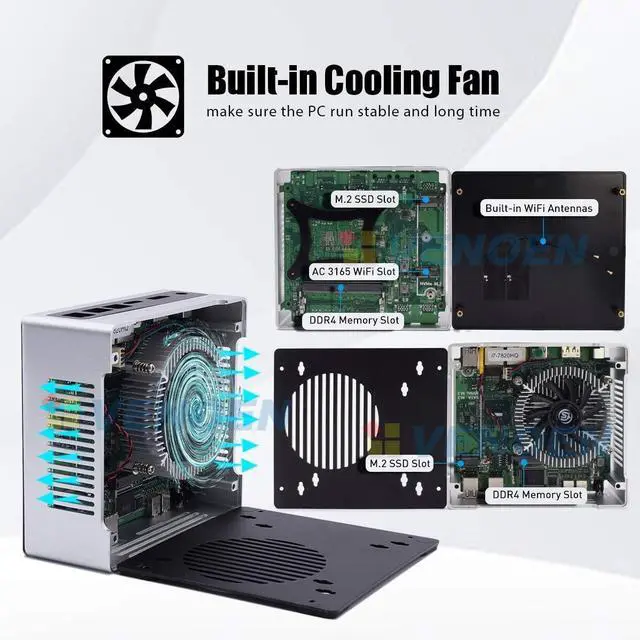

Powerful Mini PC with Fan Cooling.
Dual cooling system of fan and aluminum alloy case,
Make sure the Mini computer doesn't overheat, you can use it for 7x24 hours.
1xMini PC
1xPower supply
1xPower cable
1xHD cable
4xScrews( You can use it to vesa the mini pc on the monitor)

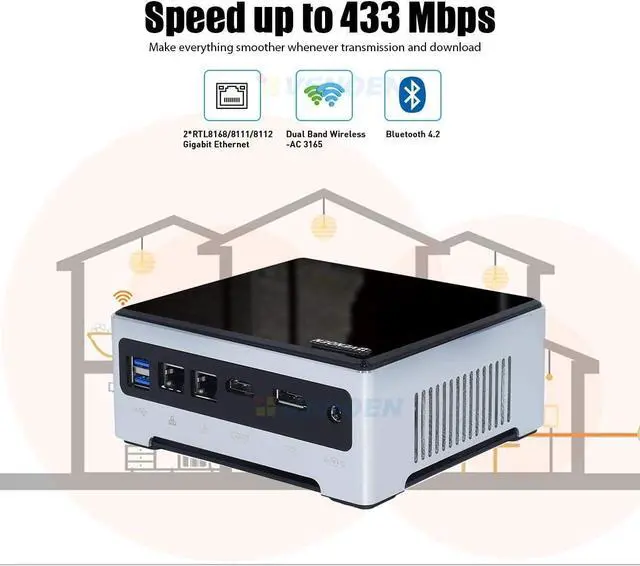

WIFI: Build-in dual band WiFi AC 2.4G+5G;
BT: BT 4.2

You can connect this Mini computer in WiFi.
It can reduce the trouble of Ethernet cable.
and make your entertainment and life easier.
CPU4 Core 8 Threads 2 cores 4 Threads8 Core 16 threads 2 cores 4 Threads2 Core 4 threads4 cores 8 threads GPUUHD GraphicsUHD 620 GraphicsUHD 630 GraphicsHD Graphics 4400HD Graphics 5500Radeon Vega 10 GraphicsMemory2* DDR4 SO-DIMM,Max 64G RAM2* DDR4 SO-DIMM,Max 64G RAM2* DDR4 SO-DIMM,Max 64G RAM2* DDR3L SO-DIMM,Max 16G RAM2* DDR3L SO-DIMM,Max 16G RAM2* DDR4 SO-DIMM,Max 32G RAMHard Disk1* M.2 22*80 NVME SSD+1* SD Card1*M.2 2280 SSD+1*2.5" SATA HDD/SSDSupport 2*M.2 SSD/1*2.5" SATA HDD/SSD1*Msata 3.0 SSD+1*2.5" SATA HDD/SSD2*Msata 3.0 SSD+1*2.5" SATA HDD/SSD1* M.2 NVME SSD+1*2.5"SATA 3.0 HDD/SSDInterface Port1*DP,1*HD , 2*LAN, 4*USB 3.0, 4*USB 2.0, 1*Type-C ,1*Spk, 1*Mic, 1*DC in.1x LAN, 6x USB , 1xType-C,1x HD, 1xDP,1x spk, 1x Mic1* DP out ,1*HD 2.0,4*USB 3.0,2*USB 2.0,1*Type-C USB,2* RJ45, 1*Headphone-out/MIC-in phone jack,1*DC powe1*VGA Port,1*HD Port, 2*LAN, 2*USB 3.0, 2*USB 2.0,6*RS232 COM,2*wifi antennas port, 1*Spk, 1*Mic, 1*DC in.2*HD+ 4*USB 3.0+ 4*USB2.0+2*RS232 COM+1* SD Card Slot+LAN+ Spk+ Mic1 x HD, 1 x DP,1 x Type-C,1 x RJ45 LAN, 3x USB 3.0, 2x USB 2.0, 1 x On/Off Power Switch, SPK/MIC, 1x12V DC InOperation SystemWin 11/Win 10/LinuxFirewall System/Win 10/LinuxWin 11/Win 10/LinuxWin 10/LinuxWin 10/LinuxWin 10/LinuxFan No NONO MINI PC Manufacturer-\u2014VENOEN VENOEN Fanless IndustrialPC VENOEN Industrial Fanless PC VENOEN Firewall Mini PC VENOEN Business/Gaming Mini PC VENOEN Office/Business Mini PC Mini Box PC H3D Fanless Industrial Mini PC K4 13Th Gen Mini PC Fanless P01GM Fanless mini pc/Business PC H7 Industrial Fanless Mini PC H4T Firewall Mini PC P09B-4 Lan Industrial Fanless PC P12B Industrial Desktop Computer H6 Industrial Mini PC P18 VENOEN M5 Intel Core i5/i7 Mini Desktop PC Key Feature Extensive connectivity Interface Build-in Fan & Metral Case Package Detail Key Feature
