WEIDIAN Industrial Mini PC DC 9~36V, i5 1235U 16GB DDR5 256GB NVME SSD, (Fan Cooling)Win 11 Mini Desktop Computer 6xCOM(RS232/422/485) 4K 3xDisplays(2HD+DP) 8xUSB 2x2.5G LAN WiFi6&BT5.2 Auto Power On
- Powerful Mini PC i5-1235UThe 2025 New WEIDIAN Mini PC FH4 is powered by the Core i5 - 1235U processor with integrated Iris Xe Graphics, 15W TDP. Pre-installed with Win 11 Pro (supports Win 10/Linux). Industrial Mini PC's all-aluminum alloy chassis and hidden cooling fan design ensure efficient heat dissipation (50dB at full load). This setup enables the PC to operate stably, effectively keeps dust out, and is well - adapted to industrial applications.
- Wide Voltage & 7x24 Stable OperationThis fan-equipped Mini Desktop PC supports wide-voltage DC 9V~36V input, ensuring continuous power supply during voltage fluctuations or in harsh power environments. Ideal for automated production lines, industrial control systems, and areas with unstable power. With its small size (8.86×6.89×2.17inch, 3.75 lbs) and low-power design, it's suitable for kiosks, digital signage, POS, and supermarket cashier systems.

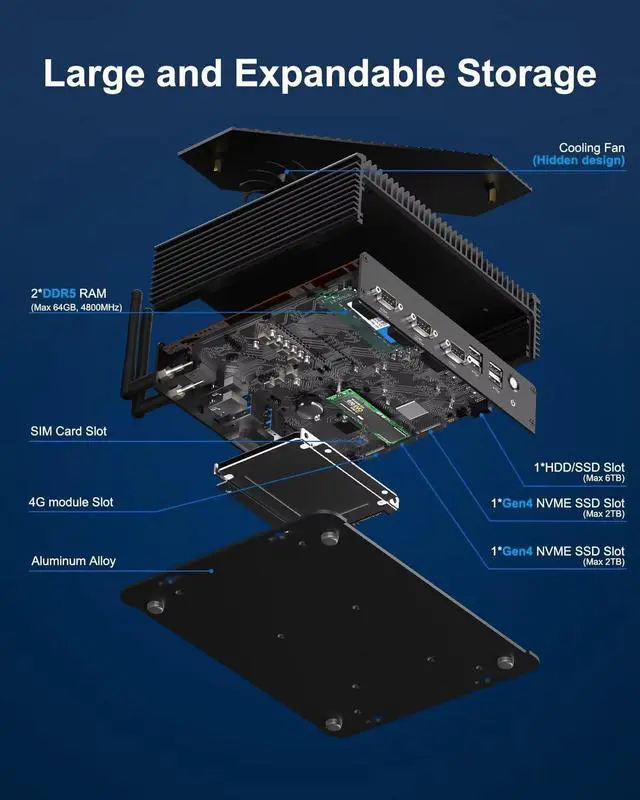

- Expandable StorageThis i5 Industrial Mini Computer provides ample storage expansi
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
CPU & GPUi5-1235U (10 cores, 12 threads, base
frequency: 1.3GH z,
max frequency: 4.4GH z,

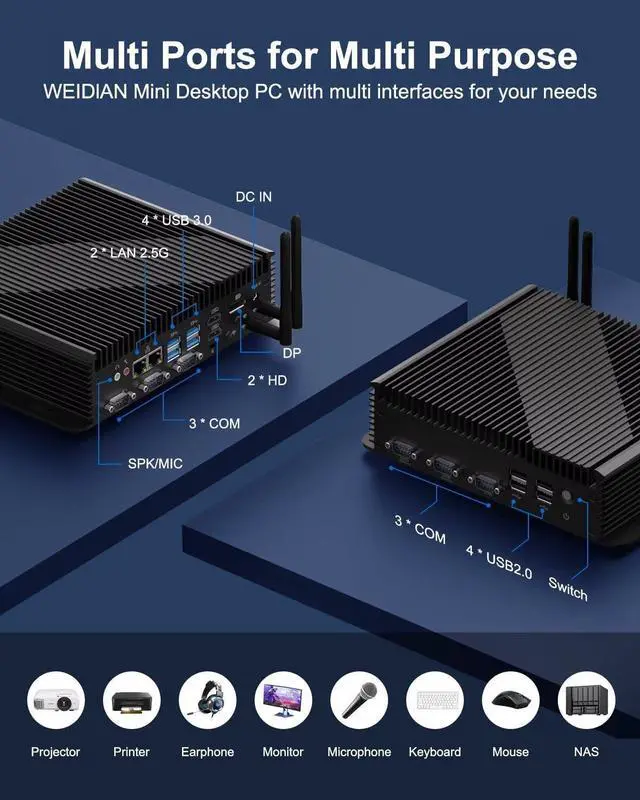

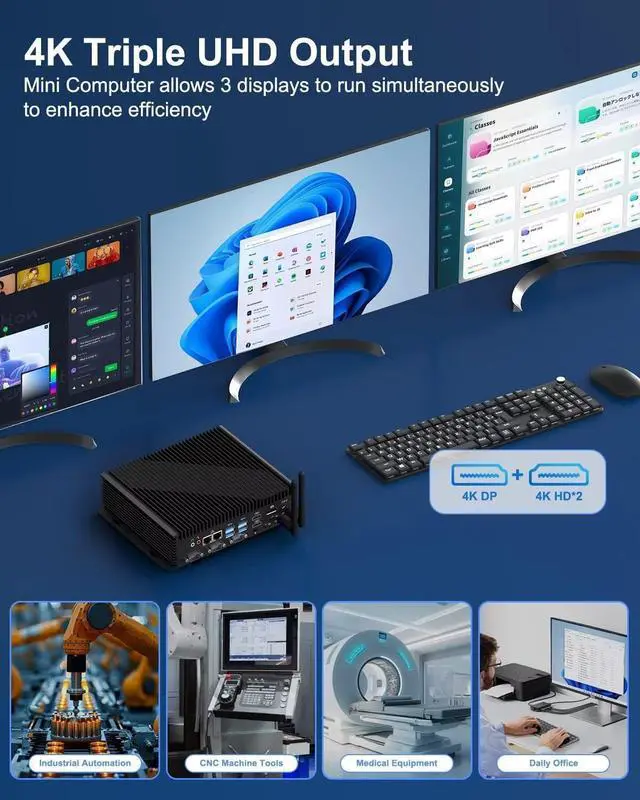

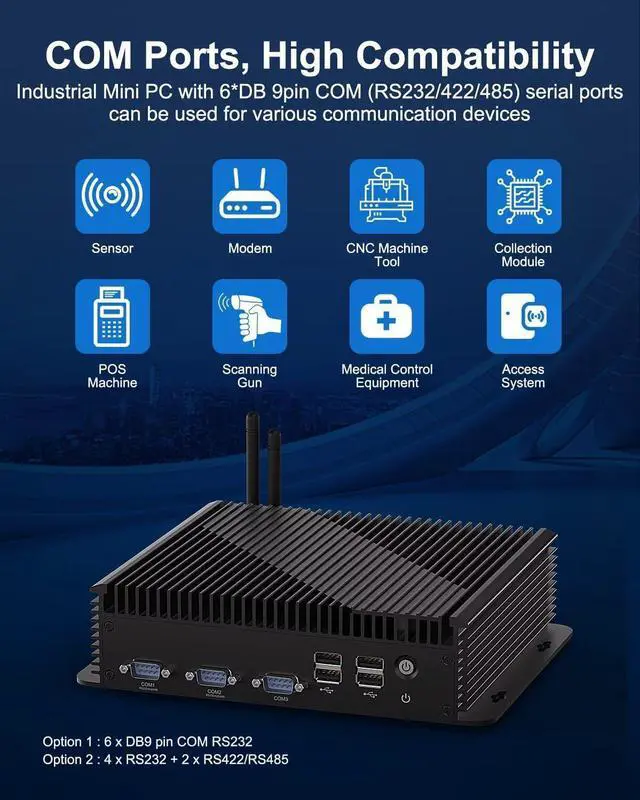

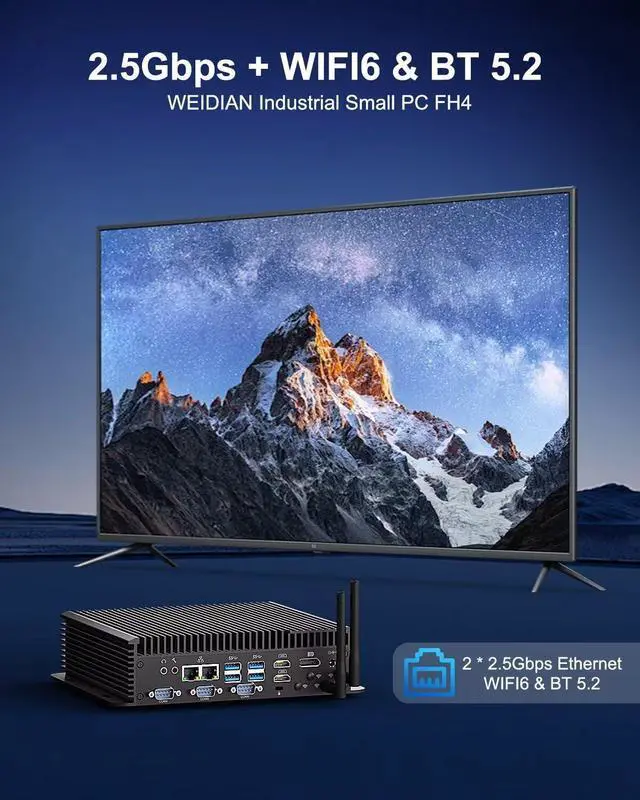

CPU Mark: 13095) & Iris Xe Graphics/UHD Graphics (Integrated Graphics) Memory (RAM) 2 x DDR5 RAM 262pin SODIMM (4800MHz, Max 64GB)StorageSupport 2 x M. 2 2280 PCIE 4.0 X4 NVME SSD (Max 4TB) and 1 x SATA 3.0 slot for 2.5 '' HDD/SSD (Max 6TB, thickness 9mm)Operating SystemPreinstall Win 11 Pro (Support Win10/Linux(Ubuntu/Debain/Rocky Linux/Vmware Esxi); Contact WEIDIAN-Dannie if you need to specify the OS. LanguageDefault English language (you can set your favorite language) WiFi & BTDual band antenna WIFI6 + BT 5.2W ireless FeaturesSupport 1 x MPCIE slot for 4G module 51.0 mm x 30.0 mm (not included) + 1 xSIM slot for Nano-SIM card 8.8 mm x 12.3 mm (not included) FunctionSupports TPM 2.0, Wake on Lan, Auto Power On (BIOS), Wake System From RTC Alarm, Watchdog, PXE (only supports UEFI boot mode) COM Ports6 x DB 9pin COM (supports 6*RS232 or 4*RS232+2*RS422/RS485); (COM3/4/5/6 only supports RS232, COM1/2 supports RS232/RS422/RS485)Display Output2 x HD 1.4 (4K 30Hz) + 1 x DP 1.2 (4K 60Hz); All support audio and video transmissionRich Ports2* 2.5G bps LAN + 6*COM + 4*USB 3.0 + 4*USB 2.0 + 4*WIFI antenna + 2*HD + DP + MIC&SPK 3.5MM + Power SW + DC-IN + Kensington lock PortMaterial & NoiseAluminum housing & Hidden Fan Cooling
Design (Low noise: <50dB noise)Power AdapterStandard 19V 6.32A (120W); DC specification 5.5 * 2.5MM, supports wide voltage DC 9V~36V inputPC Size/Weight 22.5 x 17.5 x 5.5 cm 1.7 kg = 8.86 x 6.89 x 2.17 inches 3.75 lbsOperating Environment-1055 Common motherboard interfaces1*9Pin Fp1 pin header; 1*4pin CPU_FAN pin header; 1*4pin SPEAK pin header; 1*2pin CMOS recovery pin header; 1*GPIO pin header Parameters of FH4 WEIDIAN Industrial Mini PC Core i5-1235U (Fan Cooling Design)
frequency: 1.3GH z,
max frequency: 4.4GH z,
CPU Mark: 13095) & Iris Xe Graphics/UHD Graphics (Integrated Graphics) Memory (RAM) 2 x DDR5 RAM 262pin SODIMM (4800MHz, Max 64GB)StorageSupport 2 x M. 2 2280 PCIE 4.0 X4 NVME SSD (Max 4TB) and 1 x SATA 3.0 slot for 2.5 '' HDD/SSD (Max 6TB, thickness 9mm)Operating SystemPreinstall Win 11 Pro (Support Win10/Linux(Ubuntu/Debain/Rocky Linux/Vmware Esxi); Contact WEIDIAN-Dannie if you need to specify the OS. LanguageDefault English language (you can set your favorite language) WiFi & BTDual band antenna WIFI6 + BT 5.2W ireless FeaturesSupport 1 x MPCIE slot for 4G module 51.0 mm x 30.0 mm (not included) + 1 xSIM slot for Nano-SIM card 8.8 mm x 12.3 mm (not included) FunctionSupports TPM 2.0, Wake on Lan, Auto Power On (BIOS), Wake System From RTC Alarm, Watchdog, PXE (only supports UEFI boot mode) COM Ports6 x DB 9pin COM (supports 6*RS232 or 4*RS232+2*RS422/RS485); (COM3/4/5/6 only supports RS232, COM1/2 supports RS232/RS422/RS485)Display Output2 x HD 1.4 (4K 30Hz) + 1 x DP 1.2 (4K 60Hz); All support audio and video transmissionRich Ports2* 2.5G bps LAN + 6*COM + 4*USB 3.0 + 4*USB 2.0 + 4*WIFI antenna + 2*HD + DP + MIC&SPK 3.5MM + Power SW + DC-IN + Kensington lock PortMaterial & NoiseAluminum housing & Hidden Fan Cooling
Design (Low noise: <50dB noise)Power AdapterStandard 19V 6.32A (120W); DC specification 5.5 * 2.5MM, supports wide voltage DC 9V~36V inputPC Size/Weight 22.5 x 17.5 x 5.5 cm 1.7 kg = 8.86 x 6.89 x 2.17 inches 3.75 lbsOperating Environment-1055 Common motherboard interfaces1*9Pin Fp1 pin header; 1*4pin CPU_FAN pin header; 1*4pin SPEAK pin header; 1*2pin CMOS recovery pin header; 1*GPIO pin header Parameters of FH4 WEIDIAN Industrial Mini PC Core i5-1235U (Fan Cooling Design)
