Industrial Desktop Computer,10-Layer PCB Board Mini PC N100,4 * i226-v/i225-v 2.5GLAN,RS232/ RS485COM,USB3.0,GPIO,WiFi,Micro Firewall Appliance Router for Home/Business,NO RAM NO SSD(M.2 NVMe)
- Powerful 12th Gen N100 Processor: N100 Processor, 4 Cores 4 Threads, 6M Cache, Max Turbo Frequency 3.4 GHz, TDP 6 W. Compatible with OPNsense, Linux, Windows,ESXI, OpenWrt and other systems. AMI EFI BIOS automatically starts upon incoming call PXE.WOL
- Quad 2.5G LAN: Mini Router PC with 4 x i226-V/i225-V network card chip full UDE 2.5G with filter connector. Soft Router can monitor network data, improve network security, powerful and widely used. 1 * Mini PCIe slot, Support WIFI/4G PCIE protocol (hardware can be adjusted to support MSATA);1*Nano SIM ;Supports 8 GPIO (4 inputs and 4 outputs)
- DDR4 Memory & Large Storage Capacity: Firewall box computer with 1 x DDR4 SO-DIMM memory 3200MHz, 1*M.2Key-M 2280/2242 (default 2280,2242 can be customized) Adaptive PCIE/SATA SSD,1*SATA3.0 6Gbps.
- UHD Graphics & Dual Display: N100 processor integrated UHD Graphics, HD and DP dual display interfaces support [email protected]:The memory can be expanded up to 32GB, but due to system co
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product Highlight
BIOS: AMI EFI BIOS automatically starts upon incoming call PXE.WOL
memory 1*SODIMM DDR4 3200MHz Max 32G
GPUIntegrated IntelUHD Graphics super-core graphics card
HDMI 1*HDMI2.0 Max 4K 60hz
DP 1*DP1.2 4K 60Hz
SATA, 1*SATA3.0 6Gbps
M.2 ,1*M.2Key-M 2280/2242 (default 2280,2242 can be customized) Adaptive PCIE/SATA SSD.

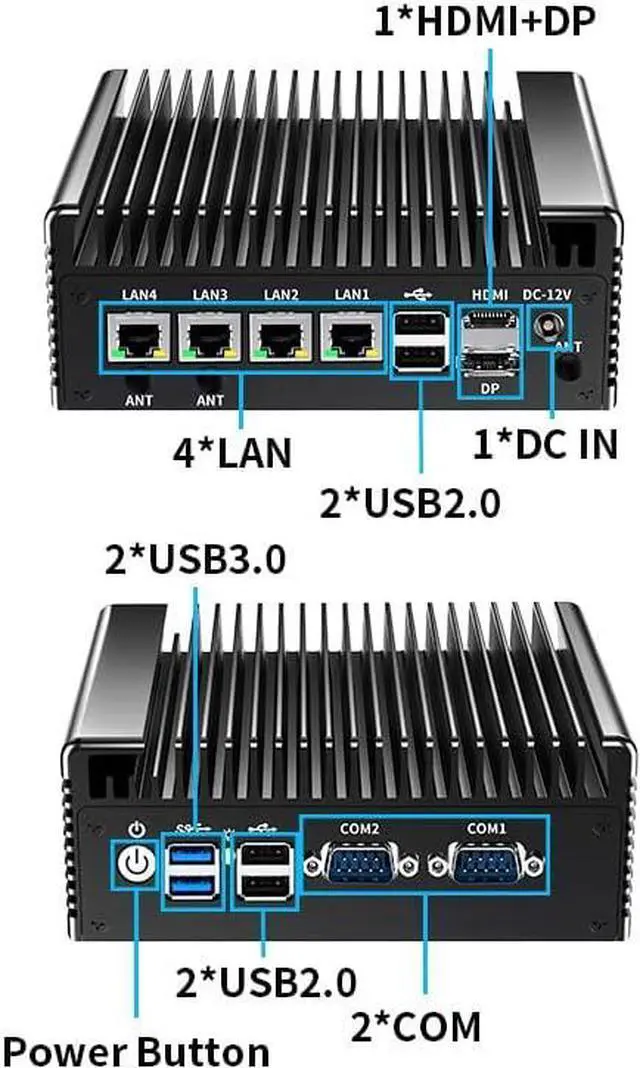

RJ45 network: 4*inter I225/I226 2.5G
USB: 2*USB3.0+4*USB2.0
DB9:2*COM RS232 (hardware can support one RS485)
Expansion Interface
MPCIE:Support WIFI/4G PCIE protocol (hardware can be adjusted to support MSATA)
SIM: 1*Nano SIM
GPIO:Supports 8 GPIO (4 inputs and 4 outputs)
watchdog :watch dog timer
4Pin 12V CPUFan detection and intelligent control (optional)
Power on call (AX-ATX1):AX-ATX (1-2) default, AX-ATX (2-3) auto start upon incoming call DC_IN: DC12V.DC 5.5*2.5mm
Operating temperature/humidity -10~60 /5~95%RH, relative humidity, no condensation.
Temperature/humidity Storage temperature/humidity -20~70 /5~95%RH, relative humidity, no condensation.

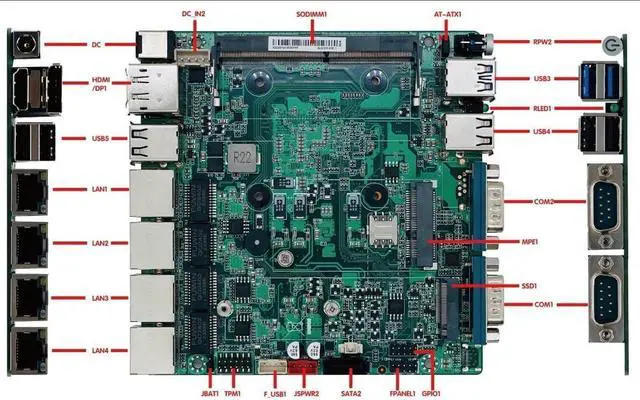

PCB size 120*120mm(10-layer PCB board)
BIOS: AMI EFI BIOS automatically starts upon incoming call PXE.WOL
memory 1*SODIMM DDR4 3200MHz Max 32G
GPUIntegrated IntelUHD Graphics super-core graphics card
HDMI 1*HDMI2.0 Max 4K 60hz
DP 1*DP1.2 4K 60Hz
SATA, 1*SATA3.0 6Gbps
M.2 ,1*M.2Key-M 2280/2242 (default 2280,2242 can be customized) Adaptive PCIE/SATA SSD.
RJ45 network: 4*inter I225/I226 2.5G
USB: 2*USB3.0+4*USB2.0
DB9:2*COM RS232 (hardware can support one RS485)
Expansion Interface
MPCIE:Support WIFI/4G PCIE protocol (hardware can be adjusted to support MSATA)
SIM: 1*Nano SIM
GPIO:Supports 8 GPIO (4 inputs and 4 outputs)
watchdog :watch dog timer
4Pin 12V CPUFan detection and intelligent control (optional)
Power on call (AX-ATX1):AX-ATX (1-2) default, AX-ATX (2-3) auto start upon incoming call DC_IN: DC12V.DC 5.5*2.5mm
Operating temperature/humidity -10~60 /5~95%RH, relative humidity, no condensation.
Temperature/humidity Storage temperature/humidity -20~70 /5~95%RH, relative humidity, no condensation.
PCB size 120*120mm(10-layer PCB board)
