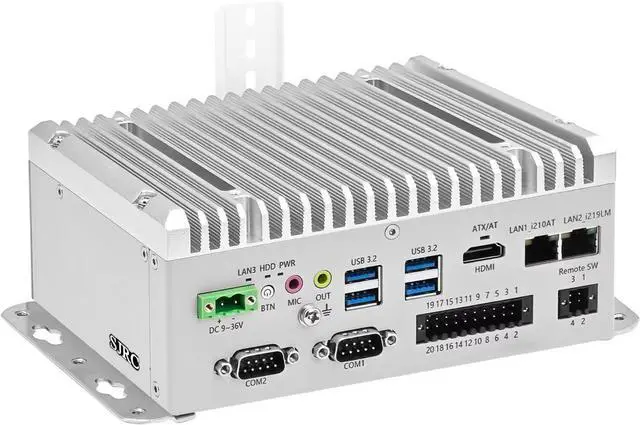

SJRC Mini PC Fanless Core i5-8265U, Industrial DIN Rail Mini Computer 2 COM RS232/RS485/422 Port, Dual Gigabit RJ45 LAN, Micro Desktop PC HD, 16-pin GPIO, Barebone NO RAM NO SSD
- Powerful Processor: Mini PC features i5-8265U CPU (up to 3.9GHz, 4C/8T, 6MB cache, 15W TDP), it delivers a perfect balance of performance and power consumption, effortlessly handling multitasking with fast response times. This ensures a smooth user experience for documents, spreadsheets, presentations, and web browsing
- 2 Ports GbE LAN: The fanless industrial computer, with 2 x Gigabit RJ45 LAN ports (i219LM-i5 8265U, i210AT-J6412&i5 8265U, 8111H-J6412 ), minimizes main processor resource use from network communications during multi-tasking. It delivers more stable system operation and faster response times, while ensuring continuous, efficient, and reliable execution of industrial automation systems and data acquisition tasks
- Flexible Storage & Expansion: Industrial PC features 1xDDR4 SODIMM slot, supporting single-channel memory of up to 32GB. The memory speed is 2400 MT/s with the i5-8265U CUP and 3200 MT/s with the J6412. It provides 1XM.2 2280 slot (for the i5-8265U) tha
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
SJRC Mini PC Fanless Core i5-8265U J6412, Industrial Small Computer
CPU:
J6412 CPU (up to 2.6GHz, 4C/4T, 1.5MB cache, 10W TDP).
i5-8265U CPU (up to 3.9GHz, 4C/8T, 6MB cache, 15W TDP).
Memory:
1xDDR4 SODIMM slot, supporting single-channel memory of up to 32GB. The memory speed is 2400 MT/s with the i5-8265U CUP and 3200 MT/s with the J6412. It provides 1XM.2 2280 slot (for the i5-8265U) that supports both SATA and NVMe SSDs, with an optional 1 x 2.5-inch drive bay.
Expansion: 1 x M.2 2230 E-Key slot and 1 x M.2 3052 B-Key slot for 4G/5G modules, along with a dedicated SIM card slot.
Networking:
Dual Gigabit RJ45 LAN ports (i219LM-i5 8265U, i210AT-J6412&i5 8265U, 8111H-J6412 ).
Display:
1 x HD display interface.
I/O Ports:
2xCOM RS232/RS485/422 ports, Realtek ALC897 HD Audio with Line-out and MIC-in, compatible with 4 3W / 8 2W external speakers. 4×USB 3.2 ports (i5-8265U), 2xUSB3.2(J6412), 2xUSB2.0(J6412), optional 16-channel GPIO, pre-definable locking terminal block (default: Remote SW). Wide-range 9\u201336V DC power input with both locking type and terminal locking connectors.
Cooling system:
Industrial PC with fanless design.
Operating Range :
Operating Temperature (-20°C to 60°C)Humidity (0% to 95%).
Vibration (with SSD) -- 5 Grms, 5\u2013500 Hz, random.
Shock (with SSD) -- 50 G, half-sine, 11 ms duration.
Size & Weight
Size: 18cmx12cmx7.14cm (7"x4.7"x2.8"), 1.3kg (2.9lb).
Power: DC 12V input, support AT and ATX mode switching.
Easy Setup & Compatibility
BIOS: 128Mb Flash ROM. Support PXE boot, Wake-on-LAN, and Auto Power On.
OS Support: Linux, Ubuntu, CentOS, hardware reset function (256 levels, 0~255 seconds) etc.

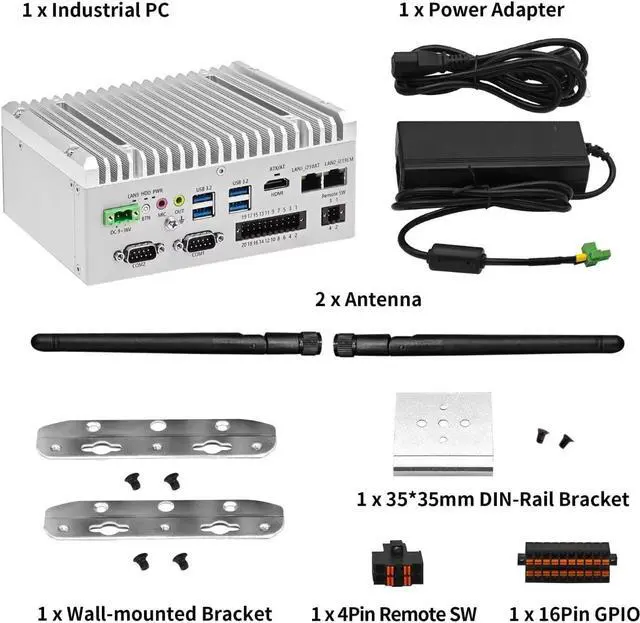

Package Includes:1xMini PC, 1xEar hooks, 1xPower adapter, 1x1.5M standard three-prong power cord (T-shaped), 1x1.5m yellow-green grounding wire, M3 for industrial PC and M6 for user cabinet, round loop lug.
CPU:
J6412 CPU (up to 2.6GHz, 4C/4T, 1.5MB cache, 10W TDP).
i5-8265U CPU (up to 3.9GHz, 4C/8T, 6MB cache, 15W TDP).
Memory:
1xDDR4 SODIMM slot, supporting single-channel memory of up to 32GB. The memory speed is 2400 MT/s with the i5-8265U CUP and 3200 MT/s with the J6412. It provides 1XM.2 2280 slot (for the i5-8265U) that supports both SATA and NVMe SSDs, with an optional 1 x 2.5-inch drive bay.
Expansion: 1 x M.2 2230 E-Key slot and 1 x M.2 3052 B-Key slot for 4G/5G modules, along with a dedicated SIM card slot.
Networking:
Dual Gigabit RJ45 LAN ports (i219LM-i5 8265U, i210AT-J6412&i5 8265U, 8111H-J6412 ).
Display:
1 x HD display interface.
I/O Ports:
2xCOM RS232/RS485/422 ports, Realtek ALC897 HD Audio with Line-out and MIC-in, compatible with 4 3W / 8 2W external speakers. 4×USB 3.2 ports (i5-8265U), 2xUSB3.2(J6412), 2xUSB2.0(J6412), optional 16-channel GPIO, pre-definable locking terminal block (default: Remote SW). Wide-range 9\u201336V DC power input with both locking type and terminal locking connectors.
Cooling system:
Industrial PC with fanless design.
Operating Range :
Operating Temperature (-20°C to 60°C)Humidity (0% to 95%).
Vibration (with SSD) -- 5 Grms, 5\u2013500 Hz, random.
Shock (with SSD) -- 50 G, half-sine, 11 ms duration.
Size & Weight
Size: 18cmx12cmx7.14cm (7"x4.7"x2.8"), 1.3kg (2.9lb).
Power: DC 12V input, support AT and ATX mode switching.
Easy Setup & Compatibility
BIOS: 128Mb Flash ROM. Support PXE boot, Wake-on-LAN, and Auto Power On.
OS Support: Linux, Ubuntu, CentOS, hardware reset function (256 levels, 0~255 seconds) etc.
Package Includes:1xMini PC, 1xEar hooks, 1xPower adapter, 1x1.5M standard three-prong power cord (T-shaped), 1x1.5m yellow-green grounding wire, M3 for industrial PC and M6 for user cabinet, round loop lug.
