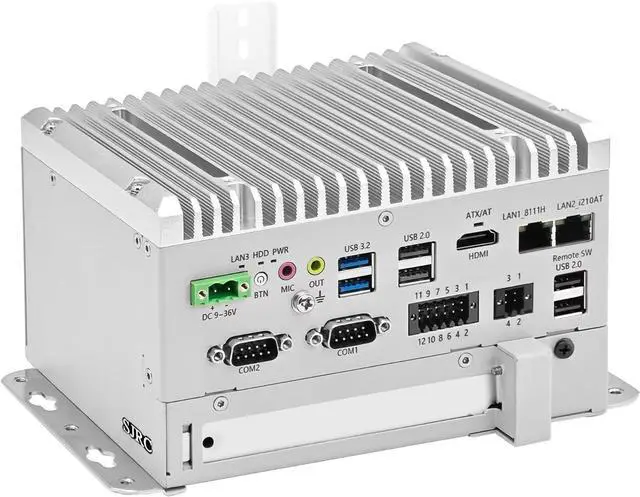

SJRC Mini PC Fanless Core J6412, Industrial DIN Rail Mini Computer 2 COM RS232/RS485/422 Port, Dual Gigabit RJ45 LAN, Micro Desktop PC PCIE, 8-pin GPIO, Barebone NO RAM NO SSD
- Powerful Processor: Mini PC features J6412 CPU (up to 2.6GHz, 4C/4T, 1.5MB cache, 10W TDP) combines ultra-low power consumption with extreme efficiency for cool, quiet, and stable operation. It ensures business continuity while achieving an ideal balance between performance and energy efficiency, making it optimized for daily office tasks and lightweight applications
- 2 Ports GbE LAN: The fanless industrial computer, with 2 x Gigabit RJ45 LAN ports (i219LM-i5 8265U, i210AT-J6412&i5 8265U, 8111H-J6412 ), minimizes main processor resource use from network communications during multi-tasking. It delivers more stable system operation and faster response times, while ensuring continuous, efficient, and reliable execution of industrial automation systems and data acquisition tasks
- Flexible Storage & Expansion: Industrial PC features 1xDDR4 SODIMM slot, supporting single-channel memory of up to 32GB. The memory speed is 2400 MT/s with the i5-8265U CUP and 3200 MT/s with the J6412. I
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
SJRC Mini PC Fanless Core i5-8265U J6412, Industrial Mini Computer 2 COM RS232/RS485/422 Port
CPU:
J6412 CPU (up to 2.6GHz, 4C/4T, 1.5MB cache, 10W TDP).
i5-8265U CPU (up to 3.9GHz, 4C/8T, 6MB cache, 15W TDP).
Memory:
1xDDR4 SODIMM slot, supporting single-channel memory of up to 32GB. The memory speed is 2400 MT/s with the i5-8265U CUP and 3200 MT/s with the J6412. It provides 1XM.2 2280 slot (for the i5-8265U) that supports both SATA and NVMe SSDs, with an optional 1 x 2.5-inch drive bay.
Expansion: 1 x M.2 2230 E-Key slot, 1x PCIe x1 slot, and 1 x M.2 3052 B-Key slot for 4G/5G modules, along with a dedicated SIM card slot.
Networking:
Dual Gigabit RJ45 LAN ports (i219LM-i5 8265U, i210AT-J6412&i5 8265U, 8111H-J6412 ).
Display:
1 x HD display interface.
I/O Ports:
2xCOM RS232/RS485/422 ports, Realtek ALC897 HD Audio with Line-out and MIC-in, compatible with 4 3W / 8 2W external speakers. Includes 4×USB 3.2 ports (i5-8265U) ,2xUSB3.2(J6412), 2xUSB2.0(J6412), optional 8-channel GPIO, and pre-definable locking terminal block (default: Remote SW). Wide-range 9\u201336V DC power input with both locking type and terminal locking connectors.
Cooling system:
Industrial PC with fanless design.
Operating Range :
Operating Temperature (-20°C to 60°C)Humidity (0% to 95%).
Vibration (with SSD) -- 5 Grms, 5\u2013500 Hz, random.
Size & Weight
Size: 18cmx12cmx7.14cm (7"x4.7"x2.8"), 1.3kg (2.9lb).
Power: DC 12V input, support AT and ATX mode switching.
Easy Setup & Compatibility
BIOS: 128Mb Flash ROM. Support PXE boot, Wake-on-LAN, and Auto Power On.
OS Support: Linux, Ubuntu, CentOS, hardware reset function (256 levels, 0~255 seconds) etc.

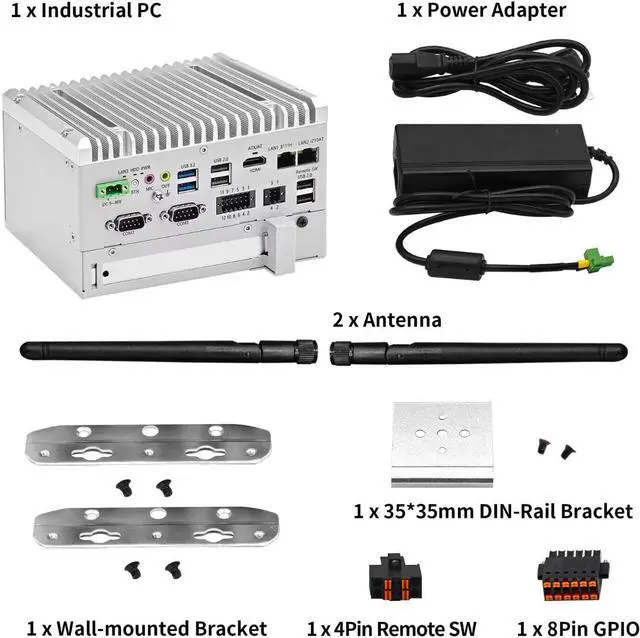

Package Includes:1xMini PC, 1xEar hooks, 1xPower adapter, 1x1.5M standard three-prong power cord (T-shaped), 1x1.5m yellow-green grounding wire, M3 for industrial PC and M6 for user cabinet, round loop lug.
CPU:
J6412 CPU (up to 2.6GHz, 4C/4T, 1.5MB cache, 10W TDP).
i5-8265U CPU (up to 3.9GHz, 4C/8T, 6MB cache, 15W TDP).
Memory:
1xDDR4 SODIMM slot, supporting single-channel memory of up to 32GB. The memory speed is 2400 MT/s with the i5-8265U CUP and 3200 MT/s with the J6412. It provides 1XM.2 2280 slot (for the i5-8265U) that supports both SATA and NVMe SSDs, with an optional 1 x 2.5-inch drive bay.
Expansion: 1 x M.2 2230 E-Key slot, 1x PCIe x1 slot, and 1 x M.2 3052 B-Key slot for 4G/5G modules, along with a dedicated SIM card slot.
Networking:
Dual Gigabit RJ45 LAN ports (i219LM-i5 8265U, i210AT-J6412&i5 8265U, 8111H-J6412 ).
Display:
1 x HD display interface.
I/O Ports:
2xCOM RS232/RS485/422 ports, Realtek ALC897 HD Audio with Line-out and MIC-in, compatible with 4 3W / 8 2W external speakers. Includes 4×USB 3.2 ports (i5-8265U) ,2xUSB3.2(J6412), 2xUSB2.0(J6412), optional 8-channel GPIO, and pre-definable locking terminal block (default: Remote SW). Wide-range 9\u201336V DC power input with both locking type and terminal locking connectors.
Cooling system:
Industrial PC with fanless design.
Operating Range :
Operating Temperature (-20°C to 60°C)Humidity (0% to 95%).
Vibration (with SSD) -- 5 Grms, 5\u2013500 Hz, random.
Size & Weight
Size: 18cmx12cmx7.14cm (7"x4.7"x2.8"), 1.3kg (2.9lb).
Power: DC 12V input, support AT and ATX mode switching.
Easy Setup & Compatibility
BIOS: 128Mb Flash ROM. Support PXE boot, Wake-on-LAN, and Auto Power On.
OS Support: Linux, Ubuntu, CentOS, hardware reset function (256 levels, 0~255 seconds) etc.
Package Includes:1xMini PC, 1xEar hooks, 1xPower adapter, 1x1.5M standard three-prong power cord (T-shaped), 1x1.5m yellow-green grounding wire, M3 for industrial PC and M6 for user cabinet, round loop lug.
