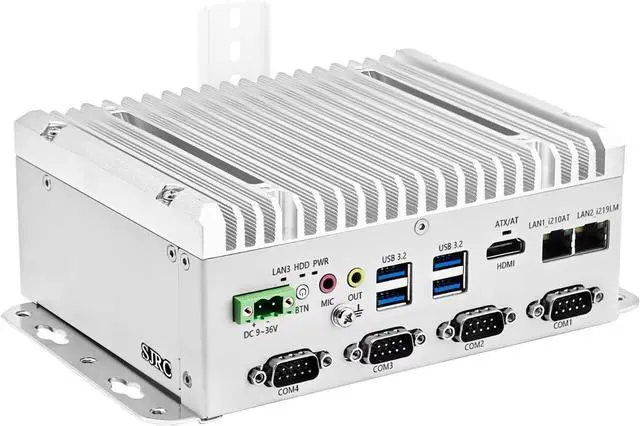

SJRC Fanless Mini PC Core i5-8265U, Industrial DIN Rail Mini Computer 4 COM RS232/RS485/422 Port, Dual Gigabit RJ45 LAN, Micro Desktop PC HD, NVMe, Linux, Barebone NO RAM NO SSD
- Powerful Processor: Mini PC features i5-8265U CPU (up to 3.9GHz, 4C/8T, 6MB cache, 15W TDP) offers strong performance, fast responsiveness, excellent power efficiency and stable reliability. Boosted by smart AI features, it ensures broad compatibility and reliability. The system runs smoothly even with dozens of web pages and multiple Word documents open at once
- 2 Ports GbE LAN: The fanless industrial PC features dual gigabit ports (i219LM + i210AT) deliver ultimate stability and low latency, with link aggregation for doubled bandwidth to meet demanding tasks like lag-free streaming. The 8111H gigabit port serves as a cost-effective complement, enabling dedicated traffic management for downloads and smart home devices to ensure uninterrupted performance. (i219LM-i5 8265U, i210AT-J6412&i5 8265U, 8111H-J6412 )
- Flexible Storage & Expansion: SJRC Industrial PC features 1xDDR4 SODIMM slot, supporting single-channel memory of up to 32GB. The memory speed is 2400 MT/s with the i5-8
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
SJRC Fanless Mini PC Core J6412 i5-8265U, Industrial Mini Computer 4 COM RS232/RS485/422 Port
CPU:
J6412 CPU (up to 2.6GHz, 4C/4T, 1.5MB cache, 10W TDP).
i5-8265U CPU (up to 3.9GHz, 4C/8T, 6MB cache, 15W TDP).
Memory:
1xDDR4 SODIMM slot, supporting single-channel memory of up to 32GB. The memory speed is 2400 MT/s with the i5-8265U CUP and 3200 MT/s with the J6412. It provides 1XM.2 2280 slot (for the i5-8265U) .
1 x M.2 2280 SATA/NVMe SSD slot, with an optional 1 x 2.5-inch drive bay.
Expansion: 1 x M.2 2230 E-Key slot and 1 x M.2 3052 B-Key slot for 4G/5G modules, along with a dedicated SIM card slot
Networking:
2 x Gigabit RJ45 LAN ports (i219LM-i5 8265U, i210AT-J6412&i5 8265U, 8111H-J6412 ) .
Display:
1 x HD display.
I/O Ports:
4xCOM RS232/RS485/422 ports, Realtek ALC897 HD Audio with Line-out and MIC-in, compatible with 4 3W / 8 2W external speakers. Includes 4×USB 3.2 ports(i5-8265U), 2xUSB3.2(J6412), 2xUSB2.0(J6412), and pre-definable locking terminal block (default: Remote SW). Wide-range 936V DC power input with both locking type and terminal locking connectors.
Cooling system:
Industrial PC with fanless design.
Operating Range :
Operating Temperature (-20°C to 60°C)Humidity (0% to 95%).
Vibration (with SSD) -- 5 Grms, 5500 Hz, random.
Shock (with SSD) -- 50 G, half-sine, 11 ms duration.
Size & Weight
Size: 18cmx12cmx7.14cm (7"x4.7"x2.8"), 1.3kg (2.9lb).
Power: DC 12V input, support AT and ATX mode switching.
Easy Setup & Compatibility
BIOS: 128Mb Flash ROM. Support PXE boot, Wake-on-LAN, and Auto Power On.
OS Support: Linux, Ubuntu, CentOS, hardware reset function (256 levels, 0~255 seconds) etc.

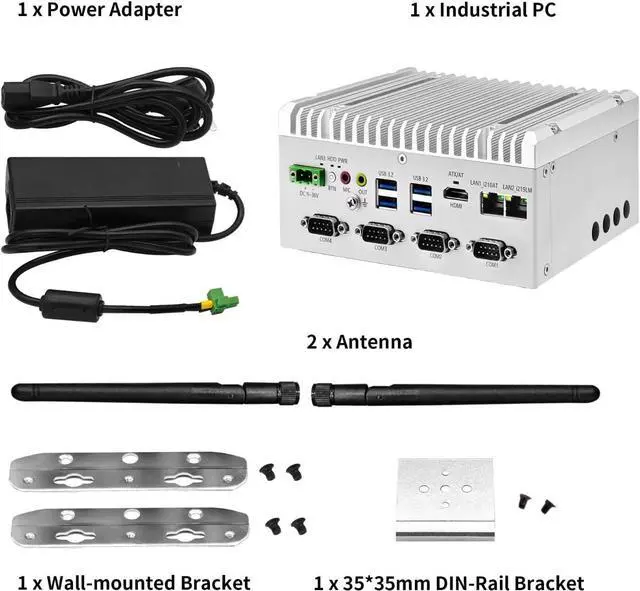

Package Includes:1xMini PC, 1xEar hooks, 1xPower adapter, 1x1.5M standard three-prong power cord (T-shaped), 1x1.5m yellow-green grounding wire, M3 for industrial PC and M6 for user cabinet, round loop lug.
CPU:
J6412 CPU (up to 2.6GHz, 4C/4T, 1.5MB cache, 10W TDP).
i5-8265U CPU (up to 3.9GHz, 4C/8T, 6MB cache, 15W TDP).
Memory:
1xDDR4 SODIMM slot, supporting single-channel memory of up to 32GB. The memory speed is 2400 MT/s with the i5-8265U CUP and 3200 MT/s with the J6412. It provides 1XM.2 2280 slot (for the i5-8265U) .
1 x M.2 2280 SATA/NVMe SSD slot, with an optional 1 x 2.5-inch drive bay.
Expansion: 1 x M.2 2230 E-Key slot and 1 x M.2 3052 B-Key slot for 4G/5G modules, along with a dedicated SIM card slot
Networking:
2 x Gigabit RJ45 LAN ports (i219LM-i5 8265U, i210AT-J6412&i5 8265U, 8111H-J6412 ) .
Display:
1 x HD display.
I/O Ports:
4xCOM RS232/RS485/422 ports, Realtek ALC897 HD Audio with Line-out and MIC-in, compatible with 4 3W / 8 2W external speakers. Includes 4×USB 3.2 ports(i5-8265U), 2xUSB3.2(J6412), 2xUSB2.0(J6412), and pre-definable locking terminal block (default: Remote SW). Wide-range 936V DC power input with both locking type and terminal locking connectors.
Cooling system:
Industrial PC with fanless design.
Operating Range :
Operating Temperature (-20°C to 60°C)Humidity (0% to 95%).
Vibration (with SSD) -- 5 Grms, 5500 Hz, random.
Shock (with SSD) -- 50 G, half-sine, 11 ms duration.
Size & Weight
Size: 18cmx12cmx7.14cm (7"x4.7"x2.8"), 1.3kg (2.9lb).
Power: DC 12V input, support AT and ATX mode switching.
Easy Setup & Compatibility
BIOS: 128Mb Flash ROM. Support PXE boot, Wake-on-LAN, and Auto Power On.
OS Support: Linux, Ubuntu, CentOS, hardware reset function (256 levels, 0~255 seconds) etc.
Package Includes:1xMini PC, 1xEar hooks, 1xPower adapter, 1x1.5M standard three-prong power cord (T-shaped), 1x1.5m yellow-green grounding wire, M3 for industrial PC and M6 for user cabinet, round loop lug.
