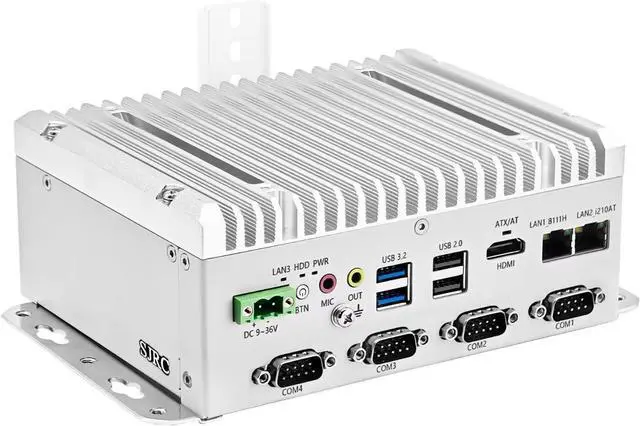

SJRC Fanless Mini PC Core J6412, Industrial DIN Rail Mini Computer 4 COM RS232/RS485/422 Port, Dual Gigabit RJ45 LAN, Micro Desktop PC HD, SIM, Opnsense, Barebone NO RAM NO SSD
- Powerful Processor: Mini PC is equipped with the J6412 CPU (up to 2.6GHz, 4 C/4T, 1.5MB cache, 10W TDP), making it ideally suited for industrial automation, embedded systems, and edge computing. Its energy-efficient operation reduces power consumption over extended periods, while its robust design minimizes the risk of mechanical failure, thereby boosting overall reliability and stability
- 2 Ports GbE LAN: The fanless industrial PC features dual gigabit ports (i219LM + i210AT) deliver ultimate stability and low latency, with link aggregation for doubled bandwidth to meet demanding tasks like lag-free streaming. The 8111H gigabit port serves as a cost-effective complement, enabling dedicated traffic management for downloads and smart home devices to ensure uninterrupted performance. (i219LM-i5 8265U, i210AT-J6412&i5 8265U, 8111H-J6412 )
- Flexible Storage & Expansion: SJRC Industrial PC features 1xDDR4 SODIMM slot, supporting single-channel memory of up to 32GB. The memory speed
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
SJRC Fanless Mini PC Core J6412 i5-8265U, Industrial Mini Computer 4 COM RS232/RS485/422 Port
CPU:
J6412 CPU (up to 2.6GHz, 4C/4T, 1.5MB cache, 10W TDP).
i5-8265U CPU (up to 3.9GHz, 4C/8T, 6MB cache, 15W TDP).
Memory:
1xDDR4 SODIMM slot, supporting single-channel memory of up to 32GB. The memory speed is 2400 MT/s with the i5-8265U CUP and 3200 MT/s with the J6412. It provides 1XM.2 2280 slot (for the i5-8265U) .
1 x M.2 2280 SATA/NVMe SSD slot, with an optional 1 x 2.5-inch drive bay.
Expansion: 1 x M.2 2230 E-Key slot and 1 x M.2 3052 B-Key slot for 4G/5G modules, along with a dedicated SIM card slot
Networking:
2 x Gigabit RJ45 LAN ports (i219LM-i5 8265U, i210AT-J6412&i5 8265U, 8111H-J6412 ) .
Display:
1 x HD display.
I/O Ports:
4xCOM RS232/RS485/422 ports, Realtek ALC897 HD Audio with Line-out and MIC-in, compatible with 4 3W / 8 2W external speakers. Includes 4×USB 3.2 ports(i5-8265U), 2xUSB3.2(J6412), 2xUSB2.0(J6412), and pre-definable locking terminal block (default: Remote SW). Wide-range 9\u201336V DC power input with both locking type and terminal locking connectors.
Cooling system:
Industrial PC with fanless design.
Operating Range :
Operating Temperature (-20°C to 60°C)Humidity (0% to 95%).
Vibration (with SSD) -- 5 Grms, 5\u2013500 Hz, random.
Shock (with SSD) -- 50 G, half-sine, 11 ms duration.
Size & Weight
Size: 18cmx12cmx7.14cm (7"x4.7"x2.8"), 1.3kg (2.9lb).
Power: DC 12V input, support AT and ATX mode switching.
Easy Setup & Compatibility
BIOS: 128Mb Flash ROM. Support PXE boot, Wake-on-LAN, and Auto Power On.
OS Support: Linux, Ubuntu, CentOS, hardware reset function (256 levels, 0~255 seconds) etc.

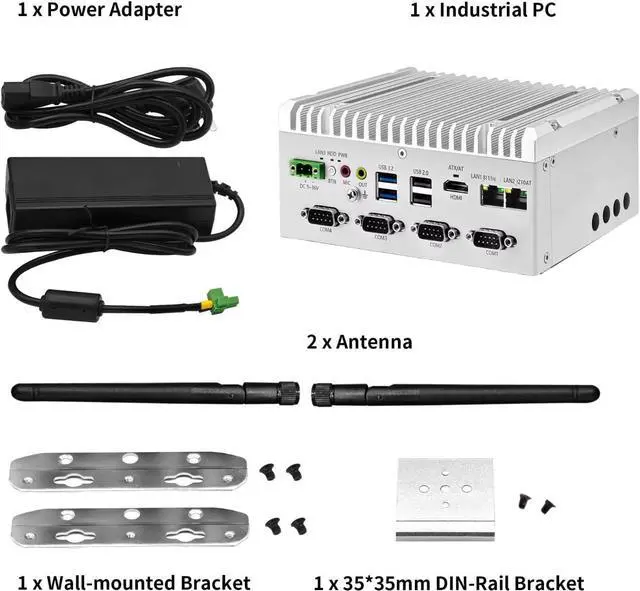

Package Includes:1xMini PC, 1xEar hooks, 1xPower adapter, 1x1.5M standard three-prong power cord (T-shaped), 1x1.5m yellow-green grounding wire, M3 for industrial PC and M6 for user cabinet, round loop lug.
CPU:
J6412 CPU (up to 2.6GHz, 4C/4T, 1.5MB cache, 10W TDP).
i5-8265U CPU (up to 3.9GHz, 4C/8T, 6MB cache, 15W TDP).
Memory:
1xDDR4 SODIMM slot, supporting single-channel memory of up to 32GB. The memory speed is 2400 MT/s with the i5-8265U CUP and 3200 MT/s with the J6412. It provides 1XM.2 2280 slot (for the i5-8265U) .
1 x M.2 2280 SATA/NVMe SSD slot, with an optional 1 x 2.5-inch drive bay.
Expansion: 1 x M.2 2230 E-Key slot and 1 x M.2 3052 B-Key slot for 4G/5G modules, along with a dedicated SIM card slot
Networking:
2 x Gigabit RJ45 LAN ports (i219LM-i5 8265U, i210AT-J6412&i5 8265U, 8111H-J6412 ) .
Display:
1 x HD display.
I/O Ports:
4xCOM RS232/RS485/422 ports, Realtek ALC897 HD Audio with Line-out and MIC-in, compatible with 4 3W / 8 2W external speakers. Includes 4×USB 3.2 ports(i5-8265U), 2xUSB3.2(J6412), 2xUSB2.0(J6412), and pre-definable locking terminal block (default: Remote SW). Wide-range 9\u201336V DC power input with both locking type and terminal locking connectors.
Cooling system:
Industrial PC with fanless design.
Operating Range :
Operating Temperature (-20°C to 60°C)Humidity (0% to 95%).
Vibration (with SSD) -- 5 Grms, 5\u2013500 Hz, random.
Shock (with SSD) -- 50 G, half-sine, 11 ms duration.
Size & Weight
Size: 18cmx12cmx7.14cm (7"x4.7"x2.8"), 1.3kg (2.9lb).
Power: DC 12V input, support AT and ATX mode switching.
Easy Setup & Compatibility
BIOS: 128Mb Flash ROM. Support PXE boot, Wake-on-LAN, and Auto Power On.
OS Support: Linux, Ubuntu, CentOS, hardware reset function (256 levels, 0~255 seconds) etc.
Package Includes:1xMini PC, 1xEar hooks, 1xPower adapter, 1x1.5M standard three-prong power cord (T-shaped), 1x1.5m yellow-green grounding wire, M3 for industrial PC and M6 for user cabinet, round loop lug.
