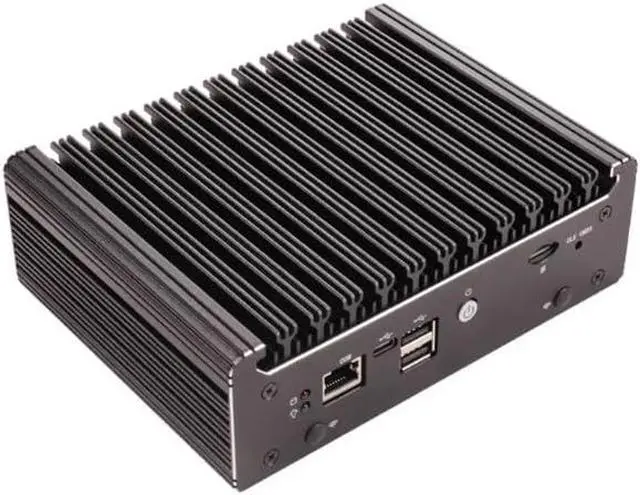

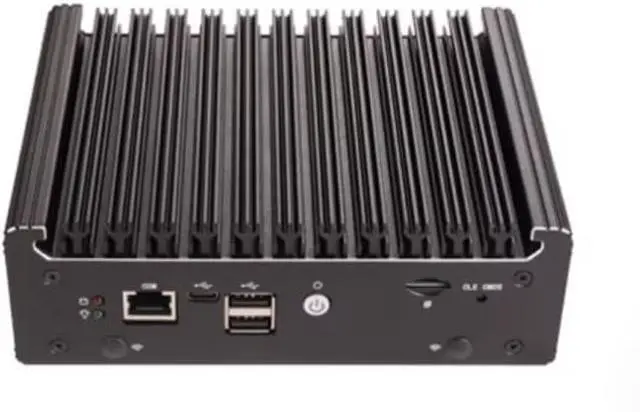

Firewall Hardware Appliance Pentium Processor 6405U Mini PC,2 Core and 4 Thread, i226V x4 2.5GbE LAN, M.2 WiFi Slot,1*M.2 2280,2*SATA3.0,DDR4-2133/2140(NO RAM NO SSD)
- Excellent performance+fanless design The Mini PC is powered by a 2.40GHz main frequency, 2MB Cache, TDP 15W processor and UHD graphics processor. The fanless design ensures complete noise free and maintenance free operation. Faster CPUs can meet your various needs.
- 4*Inter I226-V4 * Inter i226-V network card chip is fully UDE2.5G, with filter connectors, and can be used for servers, monitoring equipment, VPN, monitors, projectors, televisions, etc.
- Storage+MemoryScalable to 2TB (not included) through 2.5-inch SATA HDD/SSD drives. 2× SATA3.0 interface, 1× M.2 2280 Solid (only NVME protocol PCIE3.04X is supported),2 * SO-DIMM DDR4 memory 2133/2400MHz.
- Packaging content+warranty 1x fanless mini computer, 1x power adapter, 1xSATA data cable and power cable. We provide lifelong technical support and 12 months of satisfactory service. If there are any problems, please feel free to contact us at any time.
- NOTE: It will take a few minutes for the motherboard to read the memory in
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
CPU:Inter Pentium 6405U processor, FCBGA1528, dual-core and four-thread, 2.40GHz main frequency, 2MB Cache, TDP 15W processor
Memory:2 × DDR4 260PIN SO-DIMM slot
Memory type:DDR4-2133/2400 memory
Single root supports 32GB at most
Memory function:2× SATA3.0 interface
1× M.2 2280 Solid (only NVME protocol PCIE3.04X is supported)
Extended bus :
1×M.2(3052) interface (default USB signal)
Optional PCIE signal, PCIE clock and M.2(2230) play together, and PCIE signal of 2230 needs to be disconnected
1×M.2(2230) interface (PCIE3.0 1X/USB signal)
Network function:
On-board:INTER I226×42.5G network card chip (supporting network wake-up and PXE functions)

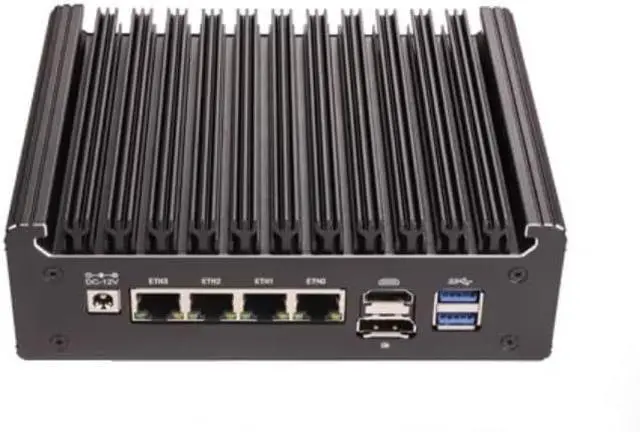

Display function:1×DP interface1×HDMI interface 1×Type-C interface (display support)
Power supply mode :DC_IN 12V(It is recommended to use a power supply above 12V/5A)
Size:120*120mm
Working temperature :20~55
Abient humidity:5~ 90% RH relative humidity, no condensation.
Memory:2 × DDR4 260PIN SO-DIMM slot
Memory type:DDR4-2133/2400 memory
Single root supports 32GB at most
Memory function:2× SATA3.0 interface
1× M.2 2280 Solid (only NVME protocol PCIE3.04X is supported)
Extended bus :
1×M.2(3052) interface (default USB signal)
Optional PCIE signal, PCIE clock and M.2(2230) play together, and PCIE signal of 2230 needs to be disconnected
1×M.2(2230) interface (PCIE3.0 1X/USB signal)
Network function:
On-board:INTER I226×42.5G network card chip (supporting network wake-up and PXE functions)
Display function:1×DP interface1×HDMI interface 1×Type-C interface (display support)
Power supply mode :DC_IN 12V(It is recommended to use a power supply above 12V/5A)
Size:120*120mm
Working temperature :20~55
Abient humidity:5~ 90% RH relative humidity, no condensation.
