VENOEN Industrial Desktop Computer,Rugged Mini ITX PC,Quad-Core i5 8250U,32GB DDR4 RAM 512GB SSD,HDMI,VGA,Mini PCI E WiFi,Dust-Free,Support 9-36V Wide Voltage,RS485 COM,RS232 COM,LPT,GPIO
- 8th Gen Processor&Faster Running Speed Mini Fanless infustrial Computer Equipped with Intel Core i5 8250U (6M Cache, 4 Cores 8 Threads, Base Frequency 1.60 GHz Turbo Frequency 3.40 GHz), pre-installed Windows 10 Pro 64-bit Mini Desktop PC. Powerful hardware makes it run more stable. Creates smoothly experience for your visually home entertainment, Streaming video, Web Browsing, Gaming, and Work.
- Dual DDR4 RAM & Big Storage CapacityMemory types: 260 pin DDR4 SO-DIMMs. Dual DDR4 260 pin SO-Dimm laptop memory make the mini pc much faster than others with Dual DDR3 memory. Storage:1 x M.2 KEY M for SATA&PCIE4X bus SSDs (M.2 2280, NVME),1 x SATA3.0 for 2.5 inch HDD/SSD, 1 x mSATA slot.
- Rich I/O and High CapacityIndustrial Mini PC designed with 4 x USB 3.0 ports, 2 x USB 3.0 ports, 2 x Gigabit Ethernet Lan port, 1 x VGA + 1 x HDMI port supporting dual display, DB9 serial port (4 of them are compatible with RS485 / RS422 Com ports. Onboard m.2 SSD + mSATA SSD + 2.5 inch S
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications of the P12B Model Fanless Industrial Desktop Mini-PC:
4 CPUs available:
Intel Core i7 10510U Processor, 1.80 GHz(up to 4.9 GHz), 8MB Cache, 4 Cores,8 Threads, UHD Graphics for 10th Gen
Intel Core i5 10210U Processor, 1.60 GHz(up to 4.2 GHz), 6MB Cache, 4 Cores,8 Threads, UHD Graphics for 10th Gen
Intel Core i7 8550U Processor, 1.8 GHz(up to 4.0 GHz), 8MB Cache, 4 Cores,8 Threads, UHD Graphics 630
Intel Core i5 8250U Processor, 1.60 GHz(up to 3.4 GHz), 6MB Cache, 4 Cores,8 Threads, UHD Graphics
Intel Core i5 7267U Processor, 2.20 GHz(up to 3.4 GHz), 4MB Cache, 2 Cores,4 Threads, Iris Plus Graphics 650

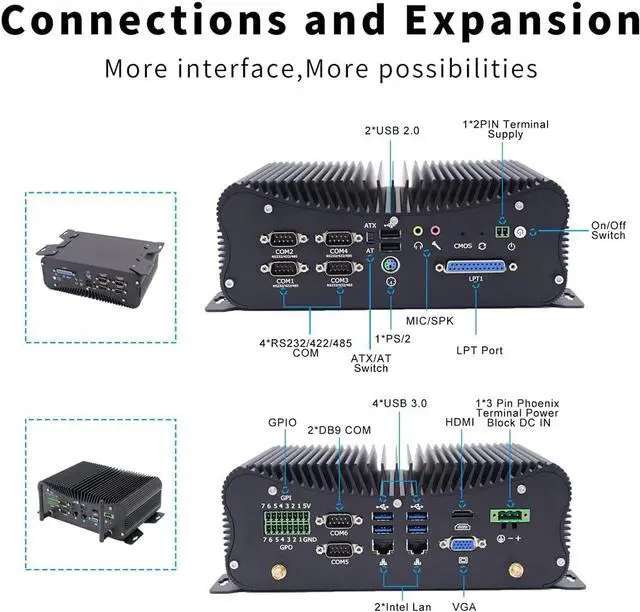

Mini PC model P12B with special ports
USB: 4 x USB 3.0, 2 x USB 2.0
Output display: 1 x HDMI 1 x VGA port
Power: 1 x 12V DC In
LAN: 2 x Intel i211 / i210 RJ45 Gigabit Ethernet
Audio: 1 x SPK output, 1 x MIC input
COM: 4 x RS232 / 422/485 COM, 2 x RS232 COM
GPIO: 7 x input ports, 7 x output ports
LPT: 1 x LPT port (connect printer)
Special ports: 1 x ATX / AT port; 1 PS2 keyboard and mouse combo; 1 x 2 terminal supply pin; 1 x 3 Pin terminal Phonenix DC 9-36V Input
Memory: Dual DDR4 SO-DIMMs, Max up to 64GB RAM
Storage: Support 1 x M.2 SSD,1 x mSATA SSD Slot and 1 x 2.5inch SATA 3.0, Three storage slots
Wifi: AC PCI E Wifi Slot,Support Dual Band Wifi and bluetooth.
Heat-sink: motherboard is pasted with heat dissipation stickers, and aluminum alloy chassis also help heat dissipation
Function: Auto Power on, Wake on Lan, 7x24 hours working etc
Application: Personal Computer,HTPC,Office USE,Training Centers,Industrial USE.
What includes:
1 * Mini desktop computer; 1 * 12V Power adapter; 1 * SATA cable; 1 * HDMI cable (as gift); 2 * wifi Antennas; 1 * CD driver.
4 CPUs available:
Intel Core i7 10510U Processor, 1.80 GHz(up to 4.9 GHz), 8MB Cache, 4 Cores,8 Threads, UHD Graphics for 10th Gen
Intel Core i5 10210U Processor, 1.60 GHz(up to 4.2 GHz), 6MB Cache, 4 Cores,8 Threads, UHD Graphics for 10th Gen
Intel Core i7 8550U Processor, 1.8 GHz(up to 4.0 GHz), 8MB Cache, 4 Cores,8 Threads, UHD Graphics 630
Intel Core i5 8250U Processor, 1.60 GHz(up to 3.4 GHz), 6MB Cache, 4 Cores,8 Threads, UHD Graphics
Intel Core i5 7267U Processor, 2.20 GHz(up to 3.4 GHz), 4MB Cache, 2 Cores,4 Threads, Iris Plus Graphics 650
Mini PC model P12B with special ports
USB: 4 x USB 3.0, 2 x USB 2.0
Output display: 1 x HDMI 1 x VGA port
Power: 1 x 12V DC In
LAN: 2 x Intel i211 / i210 RJ45 Gigabit Ethernet
Audio: 1 x SPK output, 1 x MIC input
COM: 4 x RS232 / 422/485 COM, 2 x RS232 COM
GPIO: 7 x input ports, 7 x output ports
LPT: 1 x LPT port (connect printer)
Special ports: 1 x ATX / AT port; 1 PS2 keyboard and mouse combo; 1 x 2 terminal supply pin; 1 x 3 Pin terminal Phonenix DC 9-36V Input
Memory: Dual DDR4 SO-DIMMs, Max up to 64GB RAM
Storage: Support 1 x M.2 SSD,1 x mSATA SSD Slot and 1 x 2.5inch SATA 3.0, Three storage slots
Wifi: AC PCI E Wifi Slot,Support Dual Band Wifi and bluetooth.
Heat-sink: motherboard is pasted with heat dissipation stickers, and aluminum alloy chassis also help heat dissipation
Function: Auto Power on, Wake on Lan, 7x24 hours working etc
Application: Personal Computer,HTPC,Office USE,Training Centers,Industrial USE.
What includes:
1 * Mini desktop computer; 1 * 12V Power adapter; 1 * SATA cable; 1 * HDMI cable (as gift); 2 * wifi Antennas; 1 * CD driver.
