FANPEEC Fanless Industrial PC Core i7 16GB RAM 256GB SSD Fanless Mini PC Win 11 Pro, Industrial Computer Support Triple Screens Display, Fanless Mini PC Dual LAN, Dual Band WiFi, BT4.2
- [Powerful CPU and System] Fanless pc installed with strong, stable and latest Windows 11 Pro, also support Windows 10 and Linux. Industrial mini pc use Core i7-8550U, 8MB cache, 4C/8T, Frequency up to 4.00 GHz, good for many common office software and excellent at multitasking.

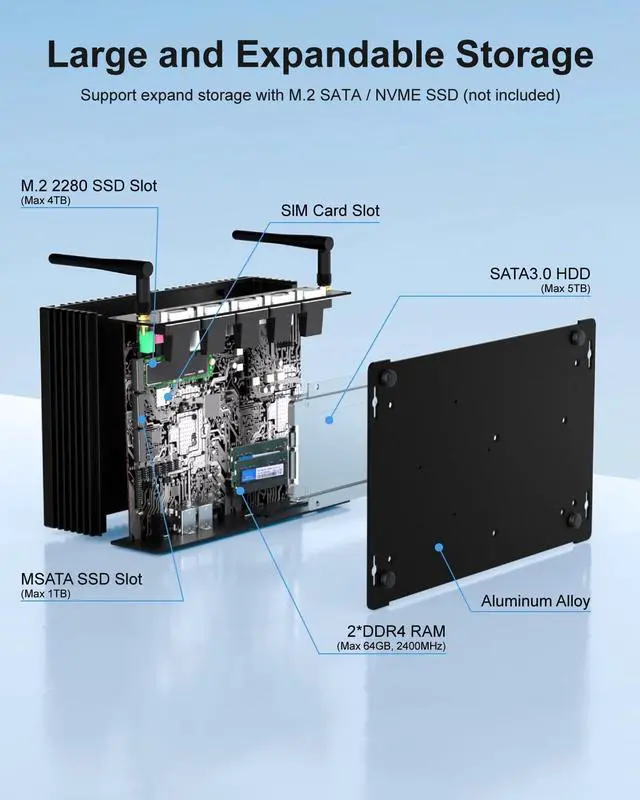

- [DDR4 RAM and mSATA SSD] The industrial pc was intalled with SSD, can achieve faster file access, application acceleration, and fast startup, avoid heavy damage from external bumps and jolts. Use DDR4 RAM, the fanless mini pc has faster speeds, improved reliability, energy-efficient and higher performance.

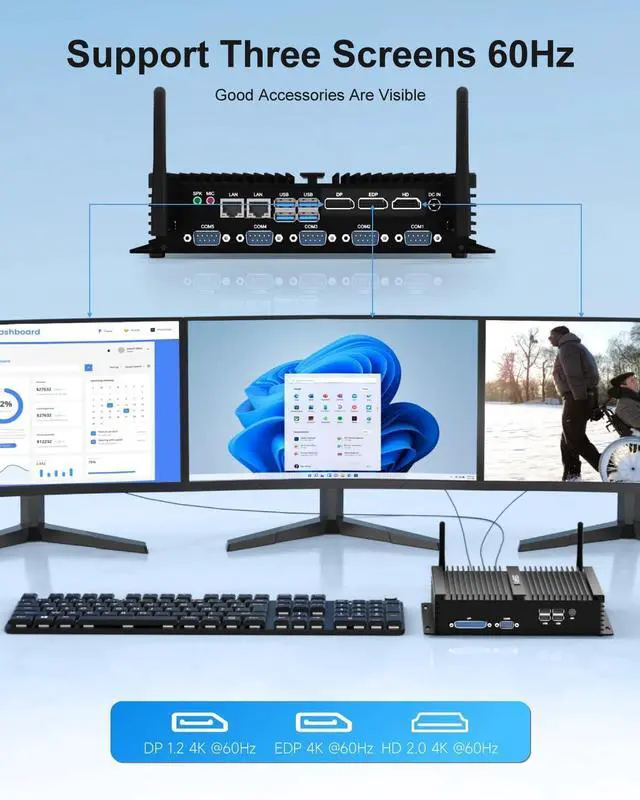

- [Three Screen Display] The fanless industrial pc is designed with three video output ports, one HD interface, one EDP interface, and one DP interface, supporting 4K resolution and 60Hz refresh rate. Fanless mini computer can connect three monitors simultaneously, greatly improving work efficiency.

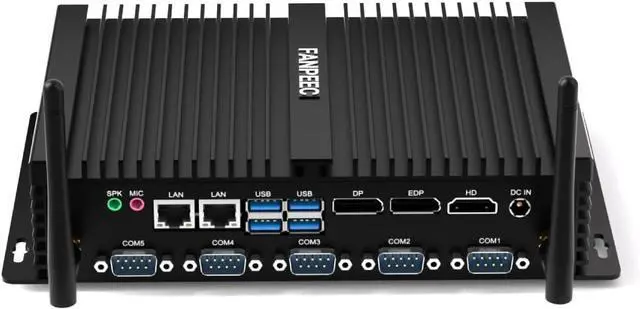

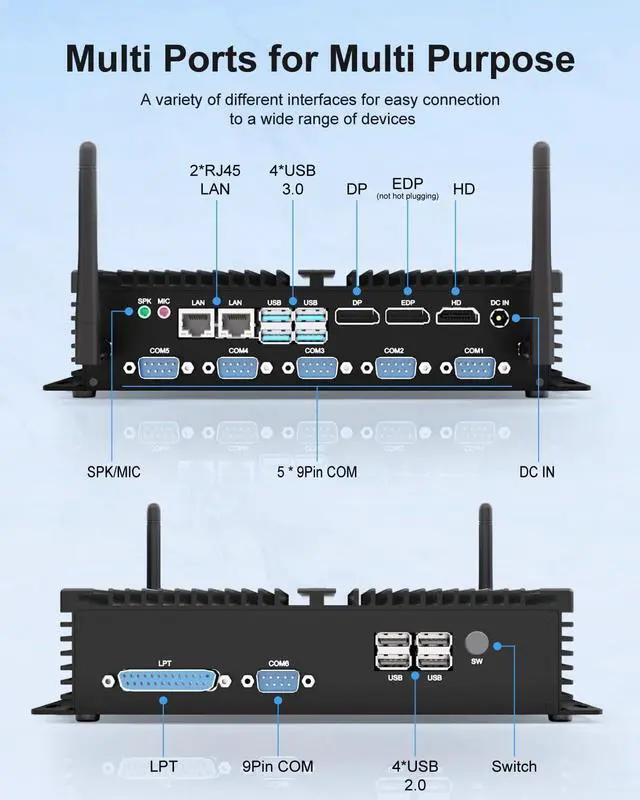

- [Rich Interfaces] The industrial personal computer comes with 1 x LPT port, 4 x USB 2.0, 4 x USB 3.0, 2 x Rj45
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
CPUCore i7-8550UTDP15WWhole machine power52WPhotolithography14nmMemory module slot2 * DDR4 260Pin SODIMM, supports up to 64G, supports 2400MHz frequencySound CardRealtek ALC 662/897USB4 * USB 2.0+4 * USB 3.0 (Type-A)LAN2*RJ45 I210/211 1000M Video port1 * HDMI(2.0) 4K 60HZ ; 1 * EDP 4K 60HZ(does not support hot plugging) ; 1* DP(1.2) 4K 60HZGraphics card modelUHD Graphics 620Storage port1 * M.2 2240/2260/2280 PCIE3.0 X2/SATA, supports NVMe/SATA protocol SSD; 1*MSATA;1 * SATA3.0, used for installing 2.5-inch HDD/SSDPower input12V 5A\6ASupported systemsWin10\Win11\LinuxMotherboard typeMini-ITX 170MM*170MMWorking temperature-20 to+60 Chassis materialAluminium Mini industrial pc have 6 COM interfaces, mainly used for data transmission between computers and other peripherals. This fanless pc supports 6 RS232 or 4 RS232+2 RS485. RS485 requires an external data cable from the RS485 pin of the motherboard, and cannot be directly transmitted from the DB9 pin. When converted to 2 sets of RS485, Com4 and Com6 will become invalid.
FANPEEC H4 Industrial Mini PC Specification Table Regarding The FANPEEC H4 Industrial Mini PC COM Port
FANPEEC H4 Industrial Mini PC Specification Table Regarding The FANPEEC H4 Industrial Mini PC COM Port
