Firewall Hardware Appliance Pentium® Gold 7505 Mini PC, 6 x i226V 2.5GbE LAN, AES-NI, OPNsense, Micro Router Appliance,M.2 WiFi Slot,M.2 Nvme PCIE 3.0 DDR4 up to 32GB*2 MINI PC (NO RAM NO SSD)
- Excellent performance+fanless design The Mini PC is powered by a 3.5GHz double core Pentium Gold 7505 Processor and UHD graphics processor. The fanless design ensures complete noise free and maintenance free operation. Faster CPUs can meet your various needs.
- 6*Intel I226-V 6 * Intel i226-V network card chip is fully UDE2.5G, with filter connectors, and can be used for servers, monitoring equipment, VPN, monitors, projectors, televisions, etc.
- Storage+MemoryScalable to 2TB (not included) through 2.5-inch SATA HDD/SSD drives. M. 2x4 interface supports expansion of 2 M.2 NVMe x1 adapter boards, 2 * SO-DIMM DDR4 memory 3200MHz, compatible with 2400/2666/2933/3200MHz
- Packaging content+warranty 1x fanless mini computer, 1x power adapter, 1xSATA data cable and power cable. We provide lifelong technical support and 12 months of satisfactory service. If there are any problems, please feel free to contact us at any time.
- NOTE: It will take a few minutes for the motherboard to read
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

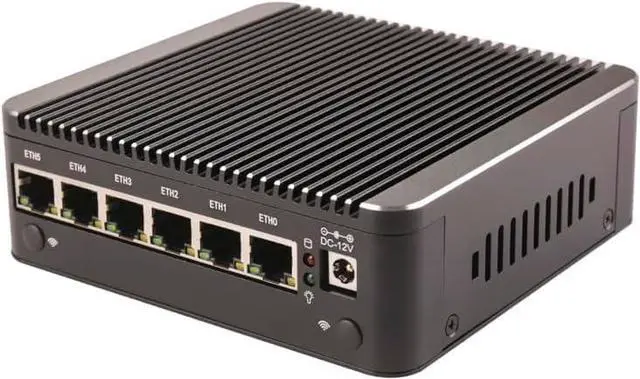

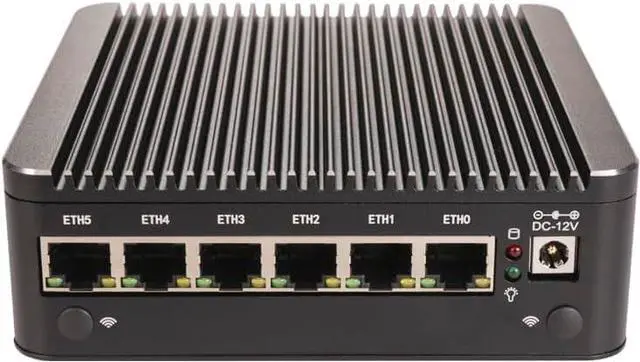

-6xIntel i226-V 2.5G RJ45 LANs, 2xUSB3.0, 2xUSB2.0.
-2xDDR4 SODIMM non-ecc ram slots, support max 32GB*2 3200MHz.
-Support two storage: 1x m2280 SSD m.2 nvme PCIE 3.0 SSD+2x2.5''SATA3.0 SSD/HDD.

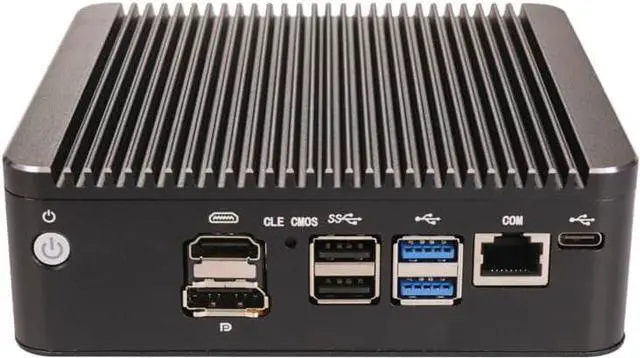

-Support 1xHDMI+1xDP dual display output synchronously and asynchronously.
-1xSIM slot, 1x M2 2230 interface (CNVI/PCIE3.0), support WiFi/3G/4G(USB protocol, 3 choose 1) connection(optional).
-Support AES-NI, ESXI, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.
-Full Aluminum Alloy solid-built shell, excellent cooling performance, Exquisite production craft on outside design.
-Fanless system without cooling fan, noiselessness and durability fit for industrial grade field, work as long as 7x24 hours.
-Low consumption TDP only 15W and can be mounted back of monitor by VESA bracket(optional).
-2xDDR4 SODIMM non-ecc ram slots, support max 32GB*2 3200MHz.
-Support two storage: 1x m2280 SSD m.2 nvme PCIE 3.0 SSD+2x2.5''SATA3.0 SSD/HDD.
-Support 1xHDMI+1xDP dual display output synchronously and asynchronously.
-1xSIM slot, 1x M2 2230 interface (CNVI/PCIE3.0), support WiFi/3G/4G(USB protocol, 3 choose 1) connection(optional).
-Support AES-NI, ESXI, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.
-Full Aluminum Alloy solid-built shell, excellent cooling performance, Exquisite production craft on outside design.
-Fanless system without cooling fan, noiselessness and durability fit for industrial grade field, work as long as 7x24 hours.
-Low consumption TDP only 15W and can be mounted back of monitor by VESA bracket(optional).
