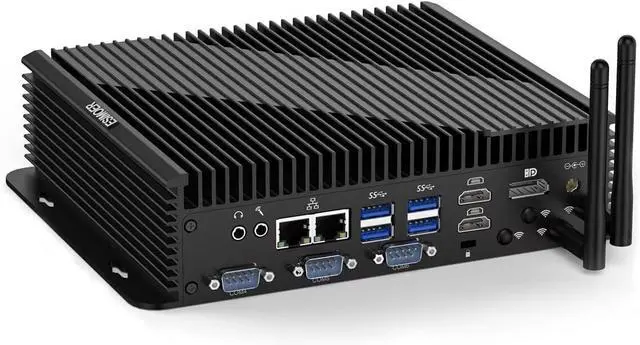

Industrial PC Win 11 Pro Core i5-1235U Fan Design Industrial Computer, 16GB RAM 256GB SSD, Dual 2.5G LAN, 2HD DP Triple Display, 6 RS232 COM, WiFi6 BT5.2, 9-36V Wide Voltage
- Powerful Performance with Core i5-1235UESIMOER industrial mini pc powered by the 12th Gen Core i5-1235U processor (10 cores, 12 threads), providing excellent performance in the fields of automation, data acquisition and edge computing. Pre-installed with Win 11 Pro for seamless compatibility with industrial software and enhanced productivity.

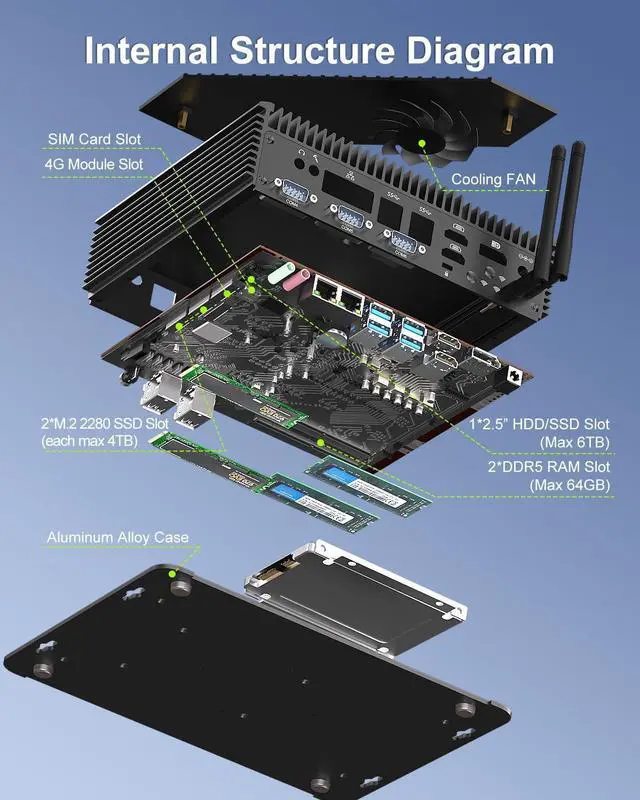

- DDR5 RAM & Ultra-Fast Storage ExpansionMini desktop computer supports dual-channel DDR5 memory (up to 64GB), 2 x M.2 2280 NVMe SSD slots (PCIe 4.0), each supporting up to 4TB. Also includes 1 x SATA 3.0 for 2.5 Inch SSD/HDD (up to 6TB). Perfect for high-speed data logging, real-time processing, and storage-intensive applications.

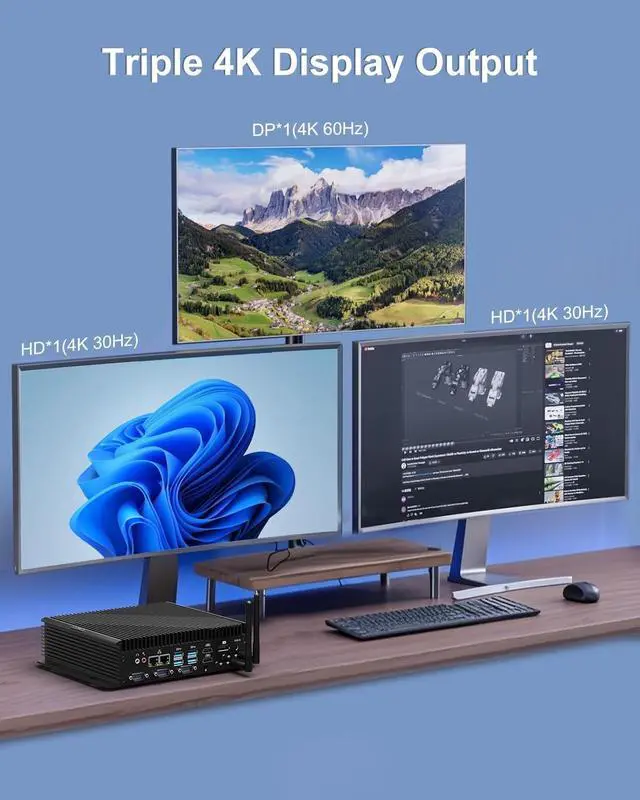

- Triple 4K Display & 9V-36V Wide Voltage InputIndustrial pc i5 output to three 4K monitors simultaneously via dual HD and DP, suitable for control rooms, multi-screen monitoring, and digital signage. The wide voltage range (9V36V) ensures stable performance in automation systems, embedded environments, an
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

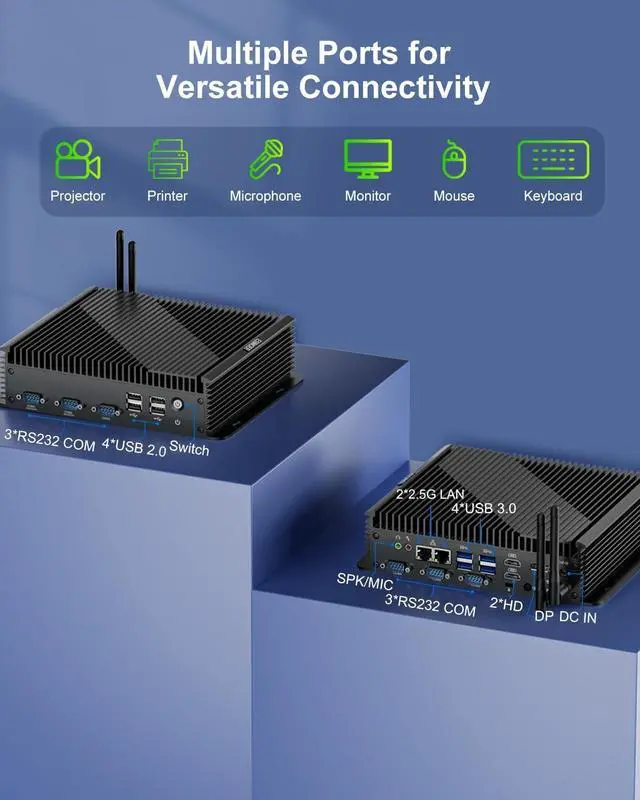

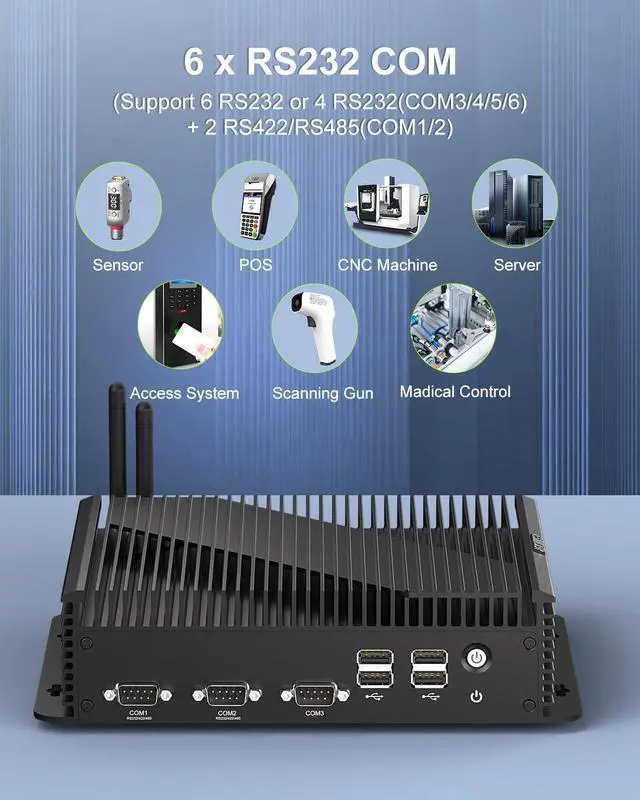

CPU12th Gen Core i5-1235U Processor, 12MB Cache, up to 4.40 GHz, 10 Cores 12 Threads, 15W TDPGPUUHD Graphics (Single memory module) /Iris Xe Graphics (Dual memory modules) Memory2*DDR5 262Pin SODIMM, Max support 64G, frequency: 4800MHzStorage2 x M. 2 2280 PCIE 4.0X 4 NVME SSD, up to 4TB; 1 x SATA 3.0 for 2.5 Inch SSD/HDD, up to 6TBLAN2 x RJ45 2.5G LANDisplay2 x HD ( 1.4 ) 4K 30Hz, 1 x DP ( 1.2 ) 4K 60Hz (All support audio and video transmission) USB4 x USB 3.0, 4 x USB 2.0COM 6*DB 9pin COM, supports 6 RS232 or 4 RS232 + 2 RS422/RS485 (COM1/2 supports RS232/RS422/RS485, COM3/4/5/6 only supports RS232)WiFi & BT WiFi 6&BT 5.2P ower & 9-36V Wide Voltage Support wide voltage DC 9V-36V voltage input, standard: 19V 6.32A (120W) OSWin10\Win11\Linux(Ubuntu\Rocky Linux\Vmware Esxi); Size & Weight 22.5 cm x 17.5 cm x 5.5 cm / 8.85 x 6.88 x 2.16 inches; 1.7 kg / 3.75 lbCase Material Aluminum/CNCInstallation Place on desktop, fix on wall, support VESA mountOther Functions Support TPM 2.0, Wake on Lan, Auto Power On (configured in BIOS), Wake System From RTC Alarm, watchdog timer, PXE: only supports UEFI boot mode ESIMOER Industrial Mini PC Win 11 Pro Specification
