SJRC Industrial Mini PC Fanless Core i5-10210U, 2 RS232 COM, DDR4 Barebone NO RAM NO SSD NO OS, Small Destop Computer, Opnsense/Linux/Win Support, HD+VGA, 8 USB
- Fanless industrial PC powered by 10th Gen In-tel Core i5-10210U (4 cores, 8 threads, up to 4.2 GHz, 6MB cache, 15 W TDP). Built for 24/7 automation, edge computing, and low-power multitasking. no operating system by default

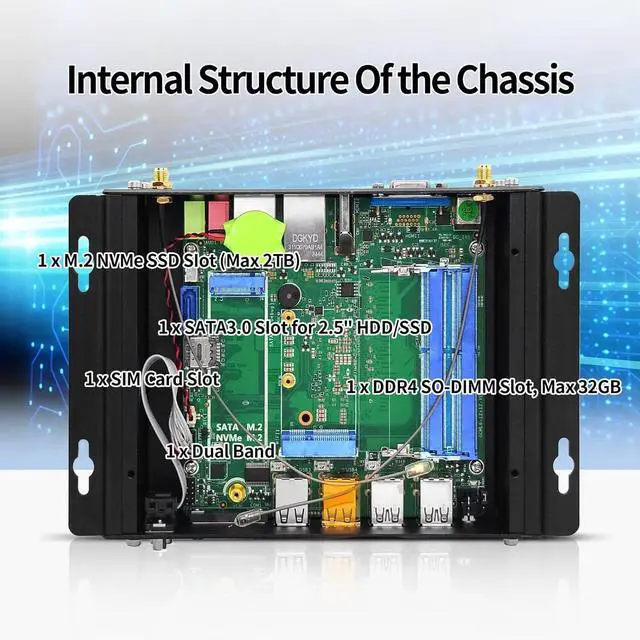

- Expandable DDR4 RAM: Equipped with two DDR4 SODIMM slots (max 32GB), 1x SIM card slot, 1x M.2 NVMe 2280 SSD slot, and 1x 2.5" SATA bay for HDD/SSD large-capacity storage. Supports PXE boot without hard drive and includes a watchdog timer for stable, fail-safe operation.
- Compact & versatile setup: Measuring 7.63 × 5 × 2.25 in, this PC supports both wall mounting (bracket included) and desktop use\u2014perfect for space-limited areas like server racks or control cabinets. Weighs 2.21 lbs. Supports Linux, Windows 10/11, and industrial OS.
- Comprehensive connectivity and expansion: 2x RS-232 COM ports, 4x USB 3.0, 4x USB 2.0, 2x GbE RJ45 (Realtek 8111H), HD+VGA dual display, plus modular add-ons including pre-installed 4G mini slot-perfect for PLCs, CNC systems, and
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
"Industrial Fanless Mini PC with In-tel Core i5-10210U
Please note: This is a barebone only. A system memory, a storage drive and an operating system are needed to complete this item

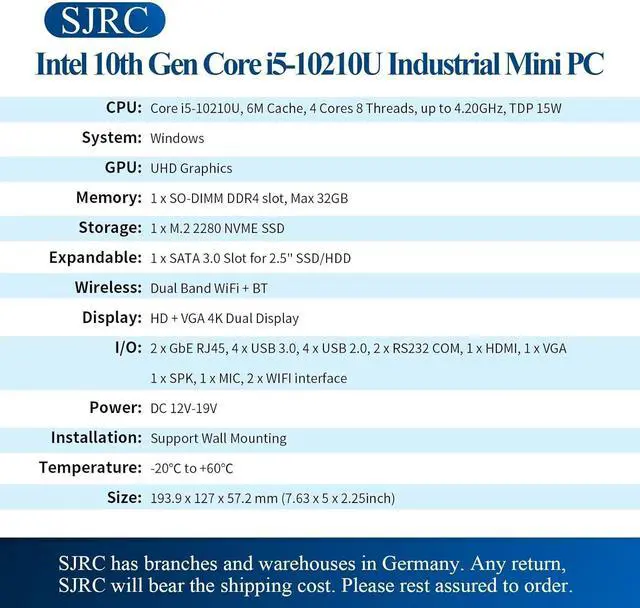

Technical Specifications:
CPU: In-tel Core i5-10210U (4C/8T, 4.2GHz).
System: No OS
Memory: 2x DDR4 SODIMM (32GB Max). Note: It will take 5-10 minutes for the device to detect the RAM for the first time. Please be patient.
Storage: M.2 NVMe 2280 + 2.5"" SATA.
Networking: 2x Gbe.

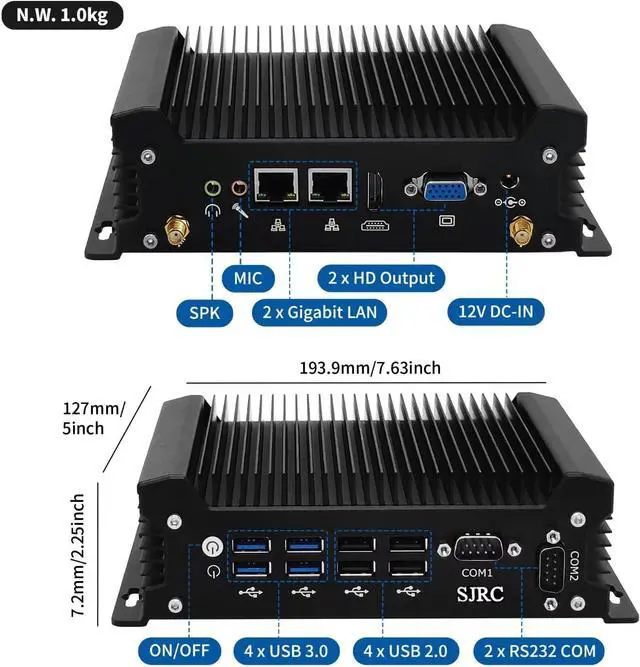

I/O: 2x RS-232 COM ports, 4x USB 3.0, 4x USB 2.0, HDMl 4K, VGA, audio jacks.
Power: 12-19V DC input.
Dimensions: 7.63"" x 5"" x 2.25"" (19.39x12.7x5.72mm).
Weight: 2.21 lbs (1kg).
Operating Temperature: -20°C to +60°C.
Storage Temperature: -30°C to +70°C.
Humidity: 10%~90% non-condensing.
Expansion: 1x full/ half -height Mini-PCIe (Support 3G/4G module).
Why Choose This Industrial PC?

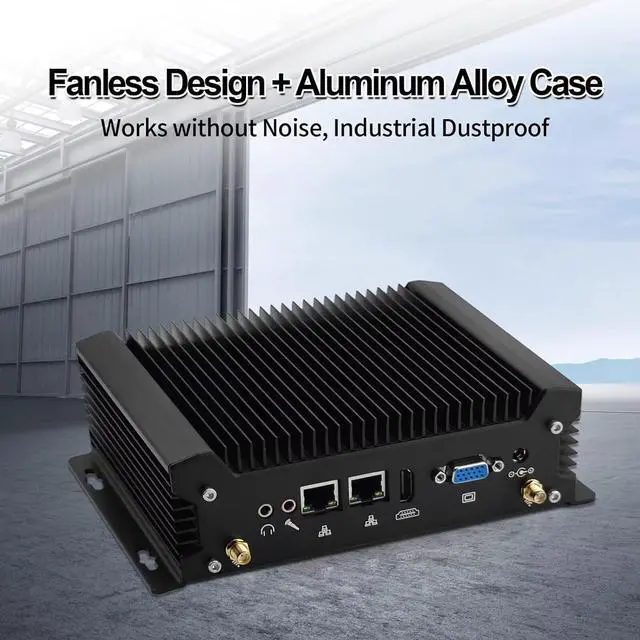

Reliability: Fanless design reduces failure risks in dusty or high-vibration settings.
Scalability: Expand with 4G modules, additional storage, or custom I/O.
Easy Integration: Pre-configured for Win/Linux; UEFI BIOS for quick setup.
Package Includes:
1x Mini PC, 1x power adapter, 1x bracket, 2x antennas, 1x SATA cable.
"
Please note: This is a barebone only. A system memory, a storage drive and an operating system are needed to complete this item
Technical Specifications:
CPU: In-tel Core i5-10210U (4C/8T, 4.2GHz).
System: No OS
Memory: 2x DDR4 SODIMM (32GB Max). Note: It will take 5-10 minutes for the device to detect the RAM for the first time. Please be patient.
Storage: M.2 NVMe 2280 + 2.5"" SATA.
Networking: 2x Gbe.
I/O: 2x RS-232 COM ports, 4x USB 3.0, 4x USB 2.0, HDMl 4K, VGA, audio jacks.
Power: 12-19V DC input.
Dimensions: 7.63"" x 5"" x 2.25"" (19.39x12.7x5.72mm).
Weight: 2.21 lbs (1kg).
Operating Temperature: -20°C to +60°C.
Storage Temperature: -30°C to +70°C.
Humidity: 10%~90% non-condensing.
Expansion: 1x full/ half -height Mini-PCIe (Support 3G/4G module).
Why Choose This Industrial PC?
Reliability: Fanless design reduces failure risks in dusty or high-vibration settings.
Scalability: Expand with 4G modules, additional storage, or custom I/O.
Easy Integration: Pre-configured for Win/Linux; UEFI BIOS for quick setup.
Package Includes:
1x Mini PC, 1x power adapter, 1x bracket, 2x antennas, 1x SATA cable.
"
