Firewall Appliance Mini PC, Inter Core i3-7100U Processor,6*LAN,2cores and 4threads,Support 2*DDR4,2*SATA Interface,1*M-SATA Interface,1*HDMI, 1*RJ45_COM Port (NO RAM NO SSD)
- Excellent performance+fanless design The Mini PC is powered by a 2.4GHz main frequency, 3MB Cache, TDP 15W processor and On-board INTER 82574 Gigabit Ethernet card chip.The fanless design ensures complete noise free and maintenance free operation. Faster CPUs can meet your various needs.
- 6*LAN+1*RJ45_COM port 6×LAN interface,On-board INTER 82574 Gigabit Ethernet card chip and can be used for servers, monitoring equipment, VPN, monitors, projectors, televisions, etc.
- Storage+Memory2x DDR4 260PIN SO-DIMM slot (memory support voltage 1.2V,supports DDR4-2133 at most,memory Maximum support is 32GB,2x SATA interface memory function 1×M-SATA Solid State Disk Interface.
- Packaging content+warranty 1x fanless mini computer, 1x power adapter, 1xSATA data cable and power cable. We provide lifelong technical support and 12 months of satisfactory service. If there are any problems, please feel free to contact us at any time.
- NOTE: It will take a few minutes for the motherboard to read t
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Reminder:
CPU:On-board Inter Core i3-7100U processor, FC-BGA1356, dual-core quad Thread, 2.40GHz frequency, 3MB Smart Cache, TDP15W processor
Memory:2x DDR4 260PIN SO-DIMM slot (memory support voltage 1.2V)
Memory type:supports DDR4-2133 at most,memory Maximum support is 32GB
Memory function:2x SATA interface memory function 1×M-SATA Solid State Disk Interface
Extended bus:1×MINI PCI-E interface
Network function: On-board INTER 82574 Gigabit Ethernet card chip

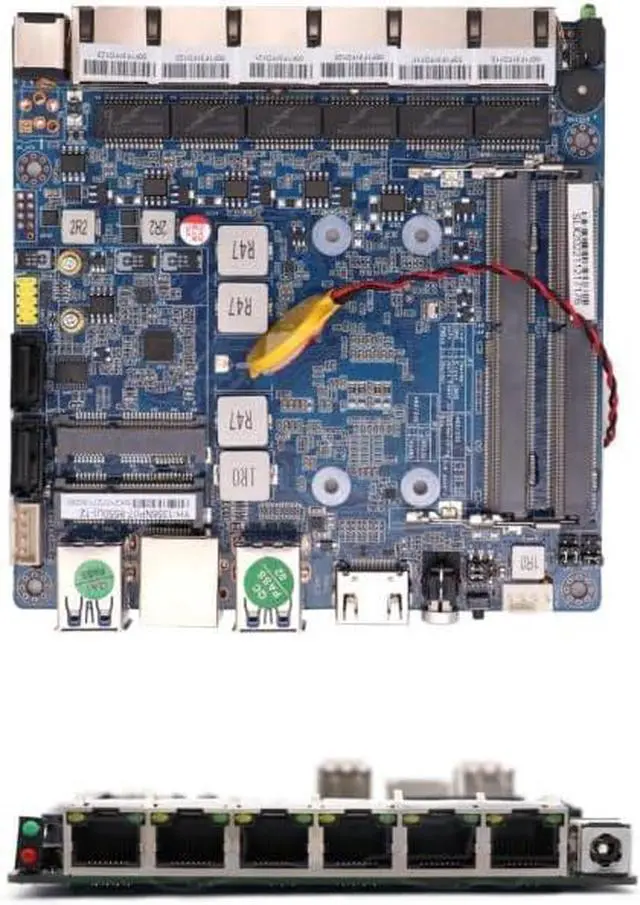

Backplane l/ O:
1*One-key reset button
1×RJ45_COM port
6×LAN interface
1×DC_IN power interface
1×LED lamp
Onboard l/O:
1×CPU fan power supply socket
1×F_USB3.0 interface (one usb3.0 can be connected)
1×SATA power supply interface
Power supply mode:DC_IN 12V
Measure:120mm x 120mm
Working temperature:-20~55
Ambient temperature:5~90 relative humidity without condensation.
CPU:On-board Inter Core i3-7100U processor, FC-BGA1356, dual-core quad Thread, 2.40GHz frequency, 3MB Smart Cache, TDP15W processor
Memory:2x DDR4 260PIN SO-DIMM slot (memory support voltage 1.2V)
Memory type:supports DDR4-2133 at most,memory Maximum support is 32GB
Memory function:2x SATA interface memory function 1×M-SATA Solid State Disk Interface
Extended bus:1×MINI PCI-E interface
Network function: On-board INTER 82574 Gigabit Ethernet card chip
Backplane l/ O:
1*One-key reset button
1×RJ45_COM port
6×LAN interface
1×DC_IN power interface
1×LED lamp
Onboard l/O:
1×CPU fan power supply socket
1×F_USB3.0 interface (one usb3.0 can be connected)
1×SATA power supply interface
Power supply mode:DC_IN 12V
Measure:120mm x 120mm
Working temperature:-20~55
Ambient temperature:5~90 relative humidity without condensation.
