SJRC Fanless Mini PC Core i5-8350U, Micro Firewall Appliance 2 x i211 Gigabit LAN, Barebone NO RAM/SSD/System, Industrial Computer Dual 4K Display, VGA, SIM Slot
- Efficient CPU Performance: Powered by Core i5-8350U (4 Core/8 Thread, up to 3.6GHz, 15W TDP) with HD Graphics 620, optimized for 24/7 industrial automation,VPN servers and firewall applications. Supports PXE boot, Wake-on-LAN, Auto Power On
- Storage & Expansion: 2x DDR4 SO-DIMM slot (support up to 32GB). 1x mSATA SSD slot + 1x SATA3.0 port for 2.5" HDD/SSD for flexible data storage. 1x Mini-PCIe full slot supports 3G/4G with SIM card slot.
- Dual 4K & Serial Control: HD + VGA 4K@60Hz Dual display for high-definition two output. 4x USB3.0 + 4x USB2.0 for external devices, and audio port. 2 x DB-9 COM1&COM2Support RS-232/422/485, ensuring stable connectivity for PLCs, CNC machines, or IoT edge gateways
- Silent Design + Aluminum Alloy Case: passive cooling with aluminum casing for zero noise and Industrial dust resistance. Supports 9\u201336V DC input. Silent, reliable, and ideal for every day use in factories or outdoor telecom environments
- Compact & flexible install: This 9.76× 5.91×
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
SJRC Dual LAN and COM Mini PC
Please note: This is a barebone system. A memory module, storage drive, and operating system are required for full functionality.

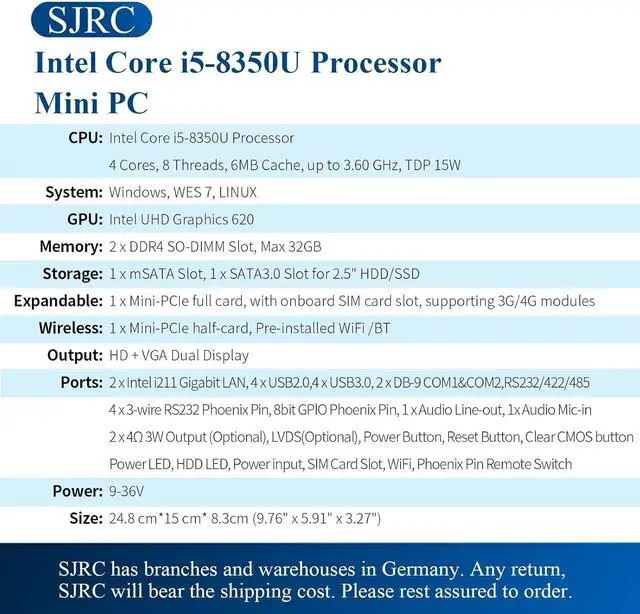

Core Performance
CPU: Core i5-8350U (4C/8T, up to 3.6GHz, 15W TDP) with HD Graphics 620.
Memory: 2x DDR4 SO-DIMM slot (up to 32GB). Note: It will take 5-10 minutes for the device to detect the RAM for the first time. Please be patient.
Storage:
1x mSATA SSD slot.
1x SATA3.0 port (6Gb/s) for 2.5" HDD/SSD drives.
Networking: 2 x In-tel i211 Gigabit LAN ports.
Expansion slot: Mini-PCIe x 1 full card, onboard SIM card slot
Display: 1x HDMI + 1x VGA (4K@60Hz).
I/O Ports: 4x USB3.0, 4x USB2.0, 1x HD, 1x VGA, 2 x DB-9 COM1&COM2, RS232/422/485 ports, 1x DC input, 1x ON/OFF, SIM Card Slot, 1x Power LED, 1 x HDD LED, 1 x Audio Line-out, 1 x Audio Mic-in.
Passive Cooling: Fanless design and aluminum alloy casing.
Operating Range: -20°C to+70°C, 95% @40°C humidity.
Compact & Versatile Design
Size: 24.8 cm*15 cm*8.3 cm (9.76" x 5.91" x 3.27"), 1.9kg (4.19lb).
Mounting:Support Desktop placement or wall-mountable.
Power: DC 9-36V input.
Easy Setup & Compatibility
BIOS: Support Auto Power On/Wake On Lan/PXE.
OS Support: Support Linux/Win.
Package Includes:1x Mini PC, 1x power adapter.
Please note: This is a barebone system. A memory module, storage drive, and operating system are required for full functionality.
Core Performance
CPU: Core i5-8350U (4C/8T, up to 3.6GHz, 15W TDP) with HD Graphics 620.
Memory: 2x DDR4 SO-DIMM slot (up to 32GB). Note: It will take 5-10 minutes for the device to detect the RAM for the first time. Please be patient.
Storage:
1x mSATA SSD slot.
1x SATA3.0 port (6Gb/s) for 2.5" HDD/SSD drives.
Networking: 2 x In-tel i211 Gigabit LAN ports.
Expansion slot: Mini-PCIe x 1 full card, onboard SIM card slot
Display: 1x HDMI + 1x VGA (4K@60Hz).
I/O Ports: 4x USB3.0, 4x USB2.0, 1x HD, 1x VGA, 2 x DB-9 COM1&COM2, RS232/422/485 ports, 1x DC input, 1x ON/OFF, SIM Card Slot, 1x Power LED, 1 x HDD LED, 1 x Audio Line-out, 1 x Audio Mic-in.
Passive Cooling: Fanless design and aluminum alloy casing.
Operating Range: -20°C to+70°C, 95% @40°C humidity.
Compact & Versatile Design
Size: 24.8 cm*15 cm*8.3 cm (9.76" x 5.91" x 3.27"), 1.9kg (4.19lb).
Mounting:Support Desktop placement or wall-mountable.
Power: DC 9-36V input.
Easy Setup & Compatibility
BIOS: Support Auto Power On/Wake On Lan/PXE.
OS Support: Support Linux/Win.
Package Includes:1x Mini PC, 1x power adapter.
