SJRC Fanless Mini PC 12th Gen i5 1235U, 6X i226V 2.5GbE Firewall Appliance Support OPNsense, Office Network Hardware 3X 4K Display, USB C, TF Slot, USB3.2, Barebone (No RAM/SSD/OS)
- 12th Gen i5-1235U CPU: Core i5-1235U (10 Cores, 12 Threads, up to 4.4GHz, 12MB Cache, 15W TDP) with Iris Xe Graphics (80EU). Optimized for 24/7 network security tasks like pf-Sense, OPNsense, and VPN servers. Supports AES-NI encryption and VT-x virtualization
- 6-Port 2.5G High-Speed: Features 6 in-tel i226-V 2.5GbE Ethernet ports, offering ultra-fast, stable connectivity for firewalls, NAS setups. Ideal for offices, labs, or smart homes, ensures seamless traffic routing, threat monitoring, and network segmentation
- DDR5 & PCIe 4.0 Storage: Dual DDR5 4800MHz slots (up to 64GB, supports 5200/5600MHz). 2x M.2 NVMe slots (PCIe 4.0 x4 + PCIe 3.0 x4 (expandable to 4x PCIe 3.0 x1 via adapter)), 2x SATA3.0 ports for 2.5/3.5" HDD/SSD, and M.2 E-key for WiFi6/7/CNVi modules
- Triple 4K & USB4 Multi-Display: HD 2.0 (4K@60Hz) + DP 1.4 (4K@60Hz) + USB4 Type-C (8K display + 40Gbps data/power) for triple screen setups. 2x USB3.2 Gen2 (10Gbps), 3x USB2.0, and TF slot for system boot/storage. BIOS supp
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
SJRC 12th Gen Core Mini PC
Please note: This is a barebone system. A memory module, storage drive, and operating system are required for full functionality.

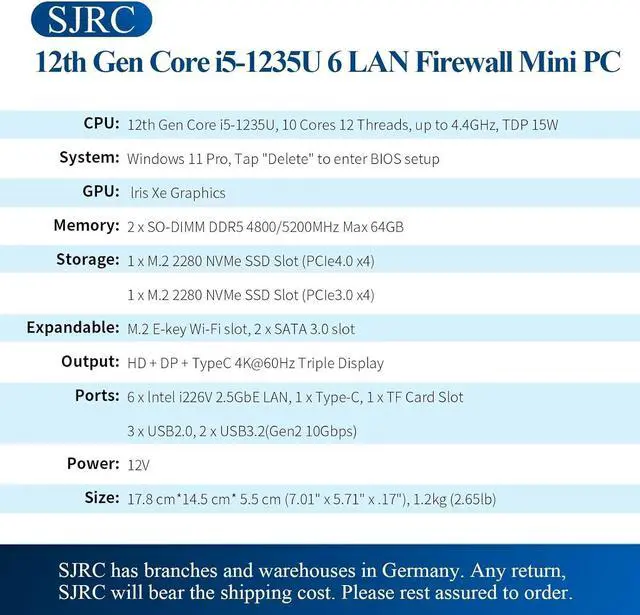

Core Performance
CPU: i5-1235U (10C (2 Performance + 8 Efficiency) /12T, up to 4.4GHz, 15W TDP) with Iris Xe Graphics (80EU).
Memory: Dual DDR5 SODIMM slots (up to 64GB, 4800MHz). Note: It will take 5-10 minutes for the device to detect the RAM for the first time. Please be patient.

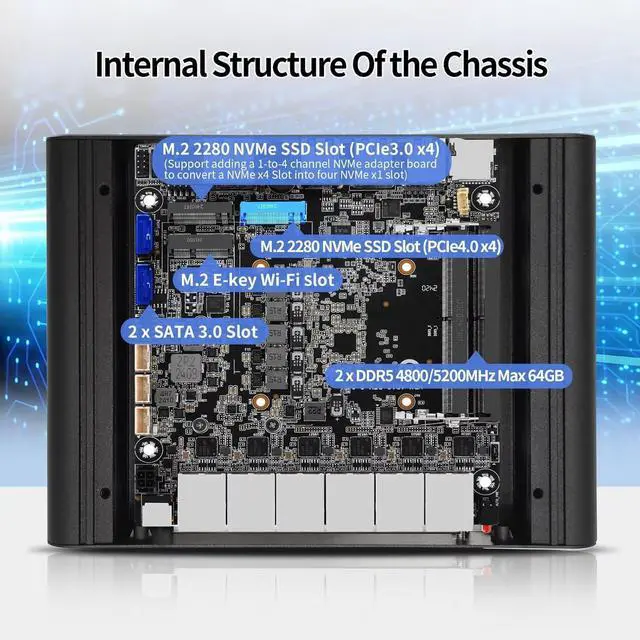

Storage:
1x M.2 PCIe 4.0 x4 NVMe slot (2280, CPU direct).
1x M.2 PCIe 3.0 x4 NVMe slot (2280, expandable to 4x PCIe 3.0 x1 via adapter).
2x SATA 3.0 ports (6Gb/s) for 2.5"/3.5" drives.
1x TF card slot for OS boot/storage.
Networking: 6x In-tel i226-V 2.5GbE LAN ports.
Optional: M.2 E-key slot (PCIe/CNVi) for WiFi6/7/BT modules.
Display: HD 2.0 (4K@60Hz) + DP 1.4 (4K@60Hz) + USB4 Type-C (8K, 40Gbps data/display/power delivery).

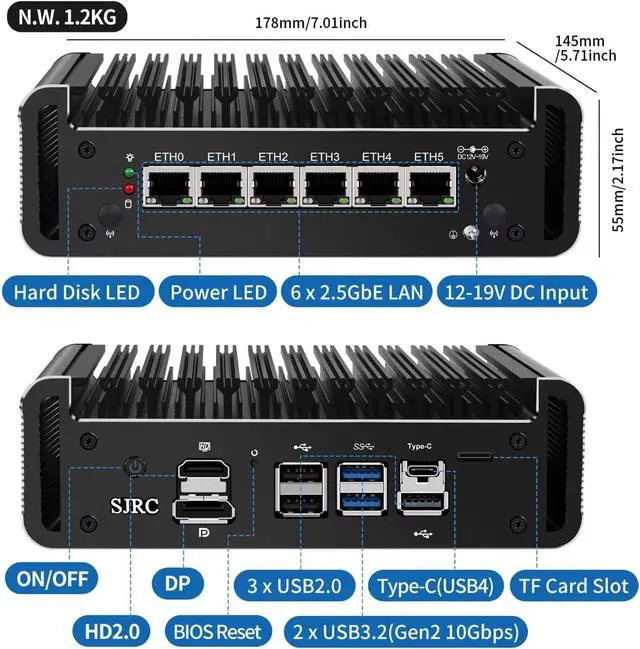

I/O Ports:
Front: 2x USB 3.2 Gen2 (10Gbps), 3x USB 2.0, 1x Type-C (USB4), 1x TF slot, 1x power button.
Rear: 6x 2.5GbE LAN, 1x DC input, 1x HDD activity LED, 1x power LED.
Internal Headers: 1x USB 2.0 header, 1x 4-pin 5V CPU fan header, 1x COM header, 1x GPIO header, 1x F_PANEL header.
Fanless Cooling: Dual copper heat pipes and aluminum alloy casing.
Operating Range: -5°C to+70°C, 5%-95% humidity.
Compact & Versatile Design
Size: 17.8 cm*14.5 cm*5.5 cm (7.01" x 5.71" x 2.17"), 1.2kg (2.65lb).
Mounting: Desktop placement or wall-mountable (bracket included).
Power: DC 12-19V input (5.5x2.5mm) or USB4 Type-C PD (requires 65W+ required).
Easy Setup & Compatibility
BIOS: Supports PXE boot, Wake-on-LAN, and Auto Power On.
OS Support: Support Win System, Linux.
Package Includes:1x Mini PC, 1x power adapter, 1x bracket.
Please note: This is a barebone system. A memory module, storage drive, and operating system are required for full functionality.
Core Performance
CPU: i5-1235U (10C (2 Performance + 8 Efficiency) /12T, up to 4.4GHz, 15W TDP) with Iris Xe Graphics (80EU).
Memory: Dual DDR5 SODIMM slots (up to 64GB, 4800MHz). Note: It will take 5-10 minutes for the device to detect the RAM for the first time. Please be patient.
Storage:
1x M.2 PCIe 4.0 x4 NVMe slot (2280, CPU direct).
1x M.2 PCIe 3.0 x4 NVMe slot (2280, expandable to 4x PCIe 3.0 x1 via adapter).
2x SATA 3.0 ports (6Gb/s) for 2.5"/3.5" drives.
1x TF card slot for OS boot/storage.
Networking: 6x In-tel i226-V 2.5GbE LAN ports.
Optional: M.2 E-key slot (PCIe/CNVi) for WiFi6/7/BT modules.
Display: HD 2.0 (4K@60Hz) + DP 1.4 (4K@60Hz) + USB4 Type-C (8K, 40Gbps data/display/power delivery).
I/O Ports:
Front: 2x USB 3.2 Gen2 (10Gbps), 3x USB 2.0, 1x Type-C (USB4), 1x TF slot, 1x power button.
Rear: 6x 2.5GbE LAN, 1x DC input, 1x HDD activity LED, 1x power LED.
Internal Headers: 1x USB 2.0 header, 1x 4-pin 5V CPU fan header, 1x COM header, 1x GPIO header, 1x F_PANEL header.
Fanless Cooling: Dual copper heat pipes and aluminum alloy casing.
Operating Range: -5°C to+70°C, 5%-95% humidity.
Compact & Versatile Design
Size: 17.8 cm*14.5 cm*5.5 cm (7.01" x 5.71" x 2.17"), 1.2kg (2.65lb).
Mounting: Desktop placement or wall-mountable (bracket included).
Power: DC 12-19V input (5.5x2.5mm) or USB4 Type-C PD (requires 65W+ required).
Easy Setup & Compatibility
BIOS: Supports PXE boot, Wake-on-LAN, and Auto Power On.
OS Support: Support Win System, Linux.
Package Includes:1x Mini PC, 1x power adapter, 1x bracket.
