SJRC Industrial Mini PC Fanless with Core i5-1235U, DDR5, 2.5GbE LAN, 6 RS-232/485 COM, 9-36V DC, HD+VGA, Support Linux/Win/Opnsense, 6 USB, Barebone NO RAM NO SSD NO OS

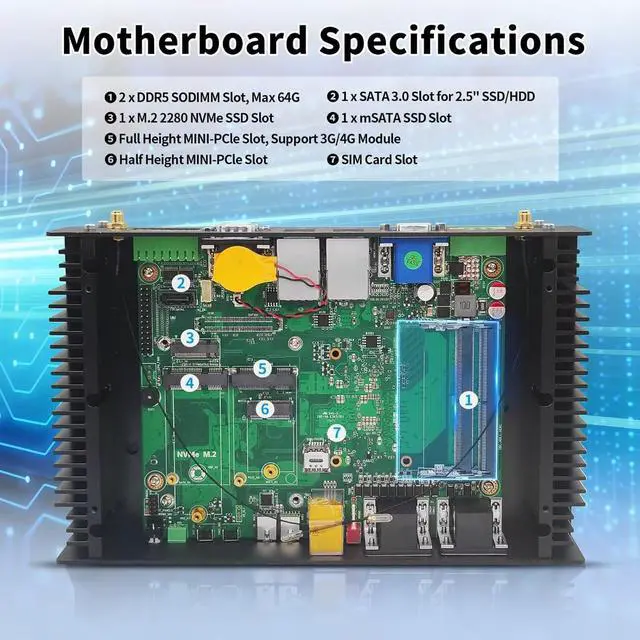

- Expandable DDR5 & Storage: Supports up to 64GB via dual DDR5 SODIMMsoffering faster bandwidth over DDR4. Storage expansion includes M.2 NVMe 2280, mSATA, and 2.5" SATA drive. PXE boot enables diskless operation; watchdog ensures automatic recovery in failures.
- Industrial-Grade CPU Performance: Equipped with In-tel 12th Gen Core i5-1235U, this silent, fanless unit delivers 10-core (2P+8E), 12-thread performance up to 4.4GHz with 12MB cache and 15W TDP, OS not included, Engineered for round-the-clock tasks and edge computing with minimal energy use.

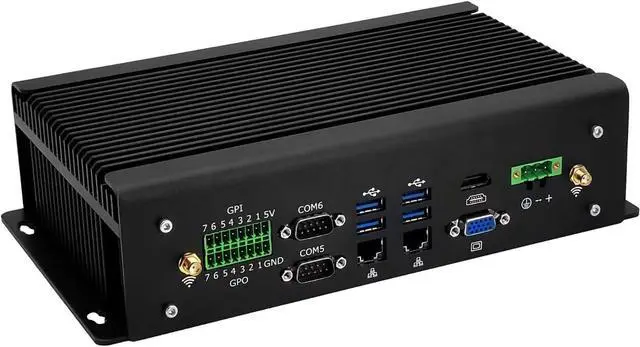

- Robust Connectivity & Expandability: Features 6 RS-232 COM ports (4 with RS485/RS442), 14-pin GPIO, dual i225V 2.5GbE LAN, 4 USB 3.0, 2 USB 2.0, HD + VGA output, plus modular add-ons like 4G SIM slot, Perfect for PLCs, CNC control, and IoT gateway applications

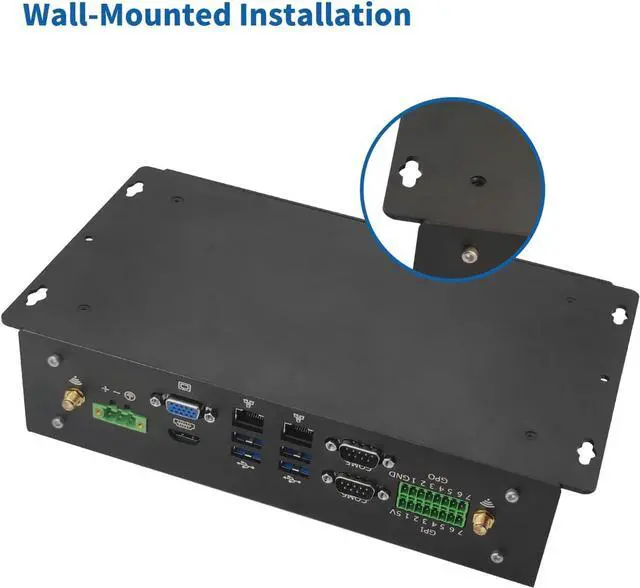

- Compact & Versatile Installation: Measuring just 9.8"x5.9"x3.4" and weighing 4.85 lbs, this PC fits tight spaces and includes a wall-mount bracket. Suitable for desktops, control b
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
"Industrial Fanless Mini PC with Core i5-1235U
Please note: This is a barebone only. A system memory, a storage drive and an operating system are needed to complete this item
Technical Specifications:
System: No OS
CPU: 12th Gen Core i5-1235U (10C/12T, 4.4GHz).
Memory: 2x DDR5 SODIMM (64GB Max). Note: It will take 5-10 minutes for the device to detect the RAM for the first time. Please be patient.
Networking: 2x i225V 2.5GbE (2.4G/5G connection).
Storage: M.2 NVMe 2280 + mSATA + 2.5"" SATA.

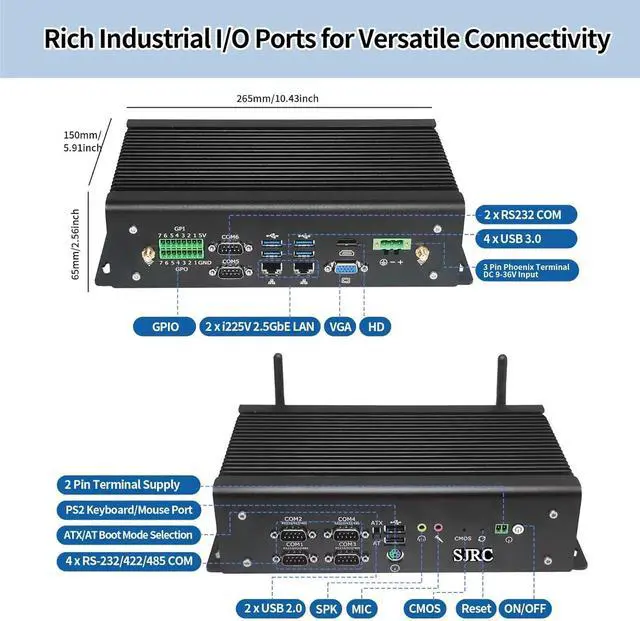

I/O: 6x RS-232 COM ports (4 support RS485/RS442), 14-pin GPIO, 4x USB 3.0, 2x USB 2.0, HDMl 4K, VGA, PS/2, audio jacks.
Power: 9-36V DC input (3-pin Phoenix terminal).
Operating Temperature: -20°C to +60°C.
Storage Temperature: -30°C to +70°C.
Humidity: 10%~90% non-condensing.
Dimensions: 9.8"" x 5.9"" x 3.4"" (249x150x86mm).
Weight: 4.85 lbs (2.2kg).
Package Includes:
1x Mini PC, 1x power adapter, 1x bracket, 2x antennas, 1x SATA cable.
" Expansion: 1x full-height Mini-PCIe (Support 3G/4G moduleT) with SIM slot, 1x half-height Mini-PCIe .
Why Choose This Industrial PC?

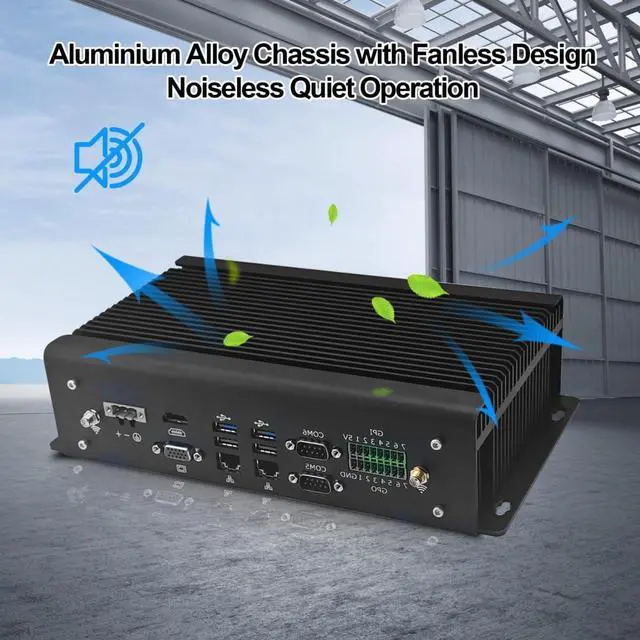

Reliability: Fanless design reduces failure risks in dusty or high-vibration settings.
Scalability: Expand with 4G modules, additional storage, or custom I/O.
Easy Integration: Pre-configured for Win/Linux; UEFI BIOS for quick setup.
Please note: This is a barebone only. A system memory, a storage drive and an operating system are needed to complete this item
Technical Specifications:
System: No OS
CPU: 12th Gen Core i5-1235U (10C/12T, 4.4GHz).
Memory: 2x DDR5 SODIMM (64GB Max). Note: It will take 5-10 minutes for the device to detect the RAM for the first time. Please be patient.
Networking: 2x i225V 2.5GbE (2.4G/5G connection).
Storage: M.2 NVMe 2280 + mSATA + 2.5"" SATA.
I/O: 6x RS-232 COM ports (4 support RS485/RS442), 14-pin GPIO, 4x USB 3.0, 2x USB 2.0, HDMl 4K, VGA, PS/2, audio jacks.
Power: 9-36V DC input (3-pin Phoenix terminal).
Operating Temperature: -20°C to +60°C.
Storage Temperature: -30°C to +70°C.
Humidity: 10%~90% non-condensing.
Dimensions: 9.8"" x 5.9"" x 3.4"" (249x150x86mm).
Weight: 4.85 lbs (2.2kg).
Package Includes:
1x Mini PC, 1x power adapter, 1x bracket, 2x antennas, 1x SATA cable.
" Expansion: 1x full-height Mini-PCIe (Support 3G/4G moduleT) with SIM slot, 1x half-height Mini-PCIe .
Why Choose This Industrial PC?
Reliability: Fanless design reduces failure risks in dusty or high-vibration settings.
Scalability: Expand with 4G modules, additional storage, or custom I/O.
Easy Integration: Pre-configured for Win/Linux; UEFI BIOS for quick setup.
