SJRC Fanless Mini PC Industrial with Core i5-7287U, Micro Desktop Computer, Barebone NO RAM/SSD/OS, Dual Gigabit LAN/RS-232 COM, HD+VGA 4K Dual Display, Support Win/Linux
- Mini Industrie PC CUP Performance: The Fanless Computer with Core i5-7287U of the 7th Generation, 2 cores, 4 threads, up to 3.7 GHz, 4 MB cache, 28 W TDP, No OS by default, Suitable for industrial scenarios with limited space and long-term operation
- Storage & Expansion: 1x DDR4 SO-DIMM slot (support up to 16GB). 1 x M.2 NVMe SSD SIot, 1 x SATA3.0 SIot for 2.5" HDD/SSD, Provides flexible storage and memory expansion capabilities
- Robust connectivity and expandability: 2x RS-232 COM ports, 2 x GbE RJ45 Realtek 8111H, 4x USB 3.0, 4x USB 2.0, HD+VGA dual display and modular expansion ideal For PLCs, CNC machines and IoT gateways

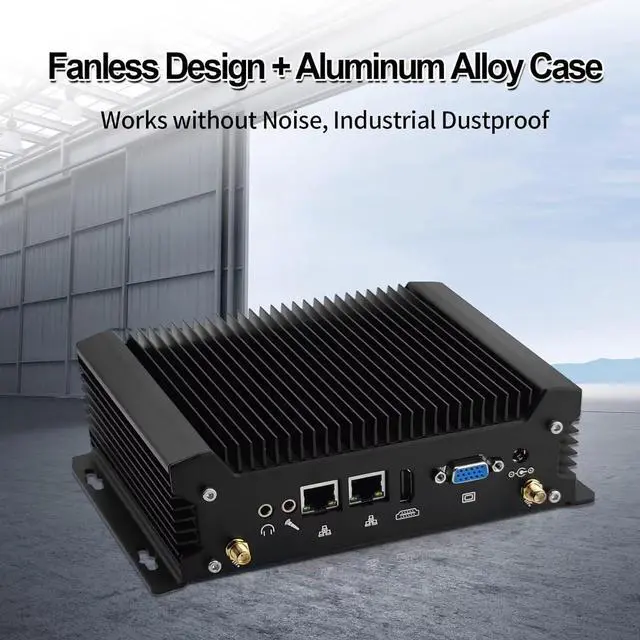

- Fanless durability: Built with rugged aluminum, this PC uses passive cooling to handle -20°C to +60°C, resisting dust and vibration. Supports 1219V DC input. Silent, reliable, and ideal for 24/7 use in factories or outdoor telecom environments
- Compact & flexible install: This 7.63×5×2.25inch(19.39×12.7×5.72cm) Weighs 2.21 lbs(1kg) PC supports wall mounting (br
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Industrial Mini PC Fanless with In-tel Core i5-7287U
Please note: This is a barebone only. A system memory, a storage drive and an operating system are needed to complete this item

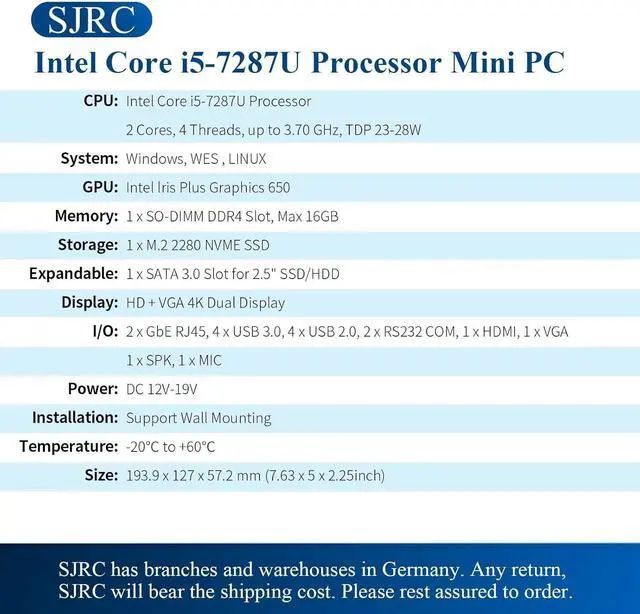

Technical Specifications:

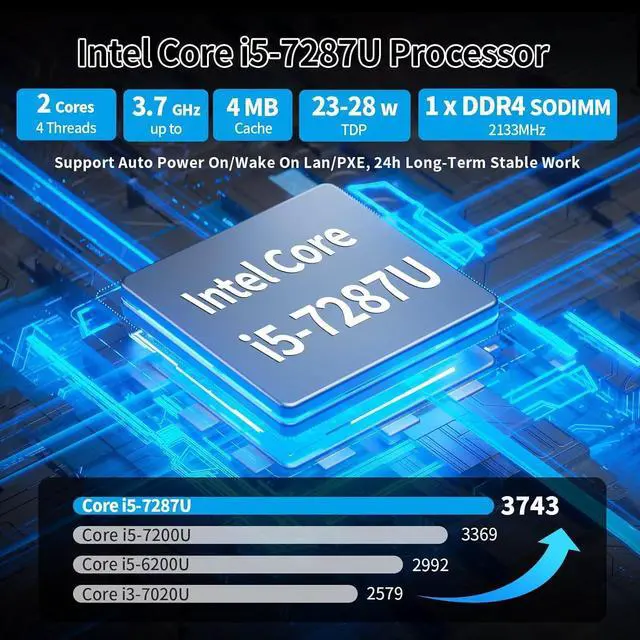

CPU: Core i5-7287U (2C/4T, 3.7GHz).
System: No OS
Memory: 1x DDR4 SODIMM (16GB Max). Note: It will take 5-10 minutes for the device to detect the RAM for the first time. Please be patient.

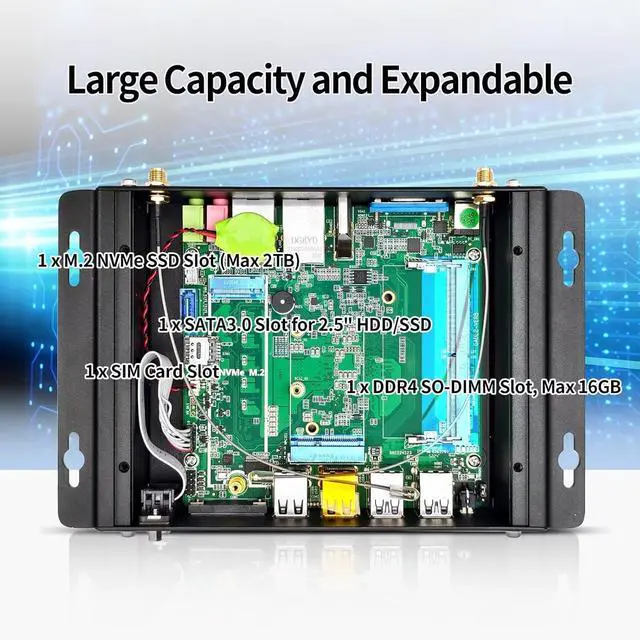

Storage: M.2 NVMe SSD SIotSupport SATA and NVME protocols,1 x SATA3.0 SIot for 2.5" HDD/SSD .
Networking: 2 x Gigabit LAN.

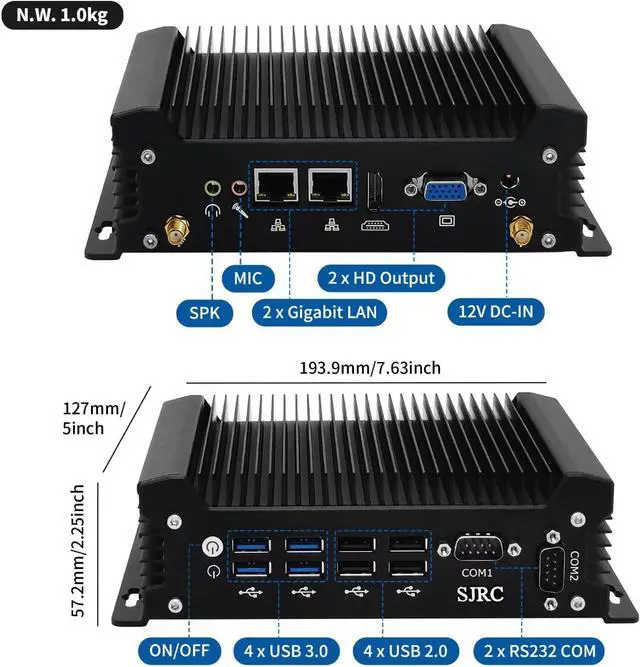

I/O: 2x RS-232 COM ports, 4x USB 3.0, 4x USB 2.0, 1x HDMl 4K, 1x VGA, 1 x Power Button.
Power: 12-19V DC input.
Dimensions: 7.63" x 5" x 2.25" (19.39x12.7x5.72mm).
Weight: 2.21 lbs (1kg).
Operating Temperature: -20°C to +60°C.
Storage Temperature: -30°C to +70°C.
Humidity: 10%~90% non-condensing.
Expansion: 1x full/ half -height Mini-PCIe (Support 3G/4G module).
Why Choose This Embedded PC?
Reliability: Fanless design reduces failure risks in dusty or high-vibration settings.
Package Includes:
1x Mini PC, 1x power adapter, 2x antennas.
Please note: This is a barebone only. A system memory, a storage drive and an operating system are needed to complete this item
Technical Specifications:
CPU: Core i5-7287U (2C/4T, 3.7GHz).
System: No OS
Memory: 1x DDR4 SODIMM (16GB Max). Note: It will take 5-10 minutes for the device to detect the RAM for the first time. Please be patient.
Storage: M.2 NVMe SSD SIotSupport SATA and NVME protocols,1 x SATA3.0 SIot for 2.5" HDD/SSD .
Networking: 2 x Gigabit LAN.
I/O: 2x RS-232 COM ports, 4x USB 3.0, 4x USB 2.0, 1x HDMl 4K, 1x VGA, 1 x Power Button.
Power: 12-19V DC input.
Dimensions: 7.63" x 5" x 2.25" (19.39x12.7x5.72mm).
Weight: 2.21 lbs (1kg).
Operating Temperature: -20°C to +60°C.
Storage Temperature: -30°C to +70°C.
Humidity: 10%~90% non-condensing.
Expansion: 1x full/ half -height Mini-PCIe (Support 3G/4G module).
Why Choose This Embedded PC?
Reliability: Fanless design reduces failure risks in dusty or high-vibration settings.
Package Includes:
1x Mini PC, 1x power adapter, 2x antennas.
