SJRC Firewall Mini PC Fanless Industrial with Core i3-1215U, HD+VGA, Samll Desktop Computer, 2 RS232 COM, DDR5 Barebone NO RAM/SSD/OS, 8 USB, Support Opnsense/Linux/Win
- Industry-level CPU performance: The fanless computer with Core i3-1215U of the 12th Generation, 6 cores, 8 threads, up to 4.4 GHz, 10 MB cache, no operating system by default. Designed for 24/7 automation, edge computing and low-power multitasking
- Expandable DDR5 RAM: Features two DDR5 SODIMM slots (up to 64GB), 1x SIM card slot, 1x M.2 NVMe 2280 SSD slot, and 1x 2.5" SATA bay for HDD/SSD to accommodate large data storage. Supports hard disk-free PXE boot and includes a watchdog timer to ensure reliable operation.
- Robust connectivity and expandability: 2x RS-232 COM ports , 2 x GbE RJ45 Realtek 8111H, 4x USB 3.0, 4x USB 2.0, HD+VGA dual display and modular expansion with pre-installed 4G IMIM slot, ideal For PLCs, CNC machines and IoT gateways
- Compact & flexible install: This 7.63 × 5× 2.25 inch PC supports wall mounting (bracket included) or desktop use\u2014ideal for tight spaces like control cabinets or server racks. Weighs 2.21 lbs. Compatible with Linux, Win10/11, and industri
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
"Industrial Fanless Mini PC with In-tel Core i3-1215U
Please note: This is a barebone only. A system memory, a storage drive and an operating system are needed to complete this item

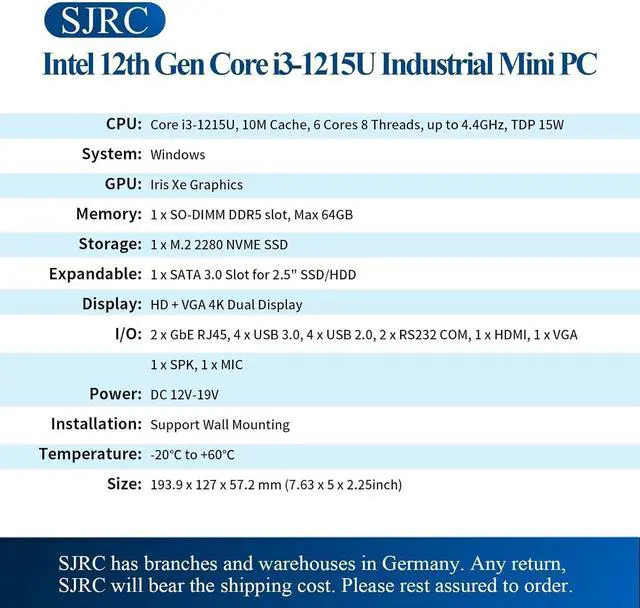

Technical Specifications:
CPU: In-tel Core i3-1215U (6C/8T, 4.4GHz).
System: No OS
Memory: 1x DDR5 SODIMM (64GB Max). Note: It will take 5-10 minutes for the device to detect the RAM for the first time. Please be patient.
Storage: M.2 NVMe 2280 + 2.5"" SATA.
Networking: 2x Gbe.
I/O: 2x RS-232 COM ports, 4x USB 3.0, 4x USB 2.0, HDMl 4K, VGA, audio jacks.
Power: 12-19V DC input.
Dimensions: 7.63"" x 5"" x 2.25"" (19.39x12.7x5.72mm).
Weight: 2.21 lbs (1kg).
Operating Temperature: -20°C to +60°C.
Storage Temperature: -30°C to +70°C.
Humidity: 10%~90% non-condensing.
Expansion: 1x full/ half -height Mini-PCIe (Support 3G/4G module).
Why Choose This Industrial PC?
Reliability: Fanless design reduces failure risks in dusty or high-vibration settings.
Scalability: Expand with 4G modules, additional storage, or custom I/O.
Easy Integration: Pre-configured for Win/Linux; UEFI BIOS for quick setup.
Package Includes:
1x Mini PC, 1x power adapter, 1x bracket, 2x antennas, 1x SATA cable.
"
Please note: This is a barebone only. A system memory, a storage drive and an operating system are needed to complete this item
Technical Specifications:
CPU: In-tel Core i3-1215U (6C/8T, 4.4GHz).
System: No OS
Memory: 1x DDR5 SODIMM (64GB Max). Note: It will take 5-10 minutes for the device to detect the RAM for the first time. Please be patient.
Storage: M.2 NVMe 2280 + 2.5"" SATA.
Networking: 2x Gbe.
I/O: 2x RS-232 COM ports, 4x USB 3.0, 4x USB 2.0, HDMl 4K, VGA, audio jacks.
Power: 12-19V DC input.
Dimensions: 7.63"" x 5"" x 2.25"" (19.39x12.7x5.72mm).
Weight: 2.21 lbs (1kg).
Operating Temperature: -20°C to +60°C.
Storage Temperature: -30°C to +70°C.
Humidity: 10%~90% non-condensing.
Expansion: 1x full/ half -height Mini-PCIe (Support 3G/4G module).
Why Choose This Industrial PC?
Reliability: Fanless design reduces failure risks in dusty or high-vibration settings.
Scalability: Expand with 4G modules, additional storage, or custom I/O.
Easy Integration: Pre-configured for Win/Linux; UEFI BIOS for quick setup.
Package Includes:
1x Mini PC, 1x power adapter, 1x bracket, 2x antennas, 1x SATA cable.
"
