SJRC Mini Gaming PC Core Ultra 7 155H, USB C 40 Gbps, Barebone NO RAM/SSD/System, AI Micro Desktop Computer, HD2.1, DP 2.1, 2 x RJ45 i226V 2.5GbE LAN, Win/Linux Support

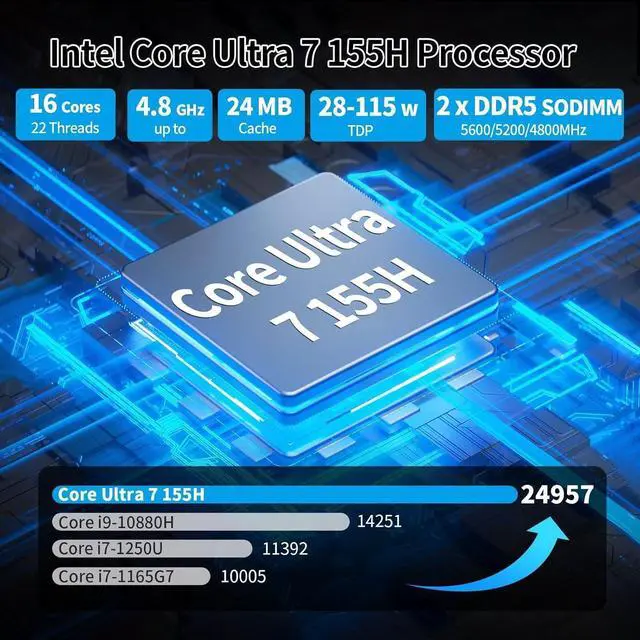

- High Performance AI Processor: The gaming computer with Core Ultra 7 155H, 16 cores, 22 threads, 24M Cache, up to 4.8GHz, no operating system by default. Such powerful performance can meet most entertainment or office needs in daily life
- Dual DDR5 RAM: Two DDR5 SODIMM slots (up to 96GB), Dual M.2 2280 NVMe PCIe4.0 Slot, Support Win/Linux/Opnsense. Store more data for fast and smooth all-round performance
- Robust connectivity and expandability: 2 x i226V 2.5GbE LAN, 3 xUSB 3.2 Gen2 (10Gbps), 1 xUSB-C 40Gbps, 1 x USB2.0, 1xHD2.1, 1xDP 2.1. Triple Display output via DP 2.1/HDM1 2.1/Type-C, which enable you to multi-task easily
- Fast Connectivity: USB4 40Gbps Type-C efficiently packages data (USB data), video signals (DisplayPort or HDMI), and PCIe data into the same high-speed channel for transmission.
- Super mini size&Vertical placement: This ultra-small (3.07x8.46x6.1 inches) AI mini computer has a built-in fan and heat sink, which greatly improves heat dissipation efficiency thro
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Gaming Mini PC with In-tel Core Ultra 7 155H
Please note: This is a barebone only. A system memory, a storage drive and an operating system are needed to complete this item

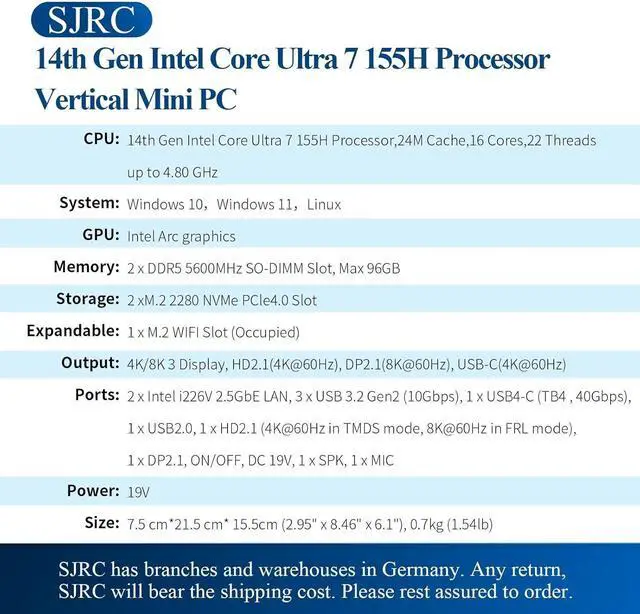

Technical Specifications:
CPU: In-tel Core Ultra 7 155H (16C/22T, 4.8GHz).
Cache:24 MB
System: No OS
Memory: 2x DDR5 SODIMM (96GB Max). Note: It will take 5-10 minutes for the device to detect the RAM for the first time. Please be patient.
Storage: 2x M.2 2280 NVMe PCIe4.0 Slot.
Networking: 2x i226 2.5Gbe LAN.
I/O: 1xDP 2.1, 3 x USB 3.2 Gen2, 1x USB 2.0, 1 x USB Type-C 40 Gbps, 1 x HDM1 2.1 (4K@60Hz in TMDS mode, 8K@60Hz in FRL mode .
Power: 12-19V DC input .
Dimensions: 3.07" x 8.46" x 6.1" (75x215x155mm).
Weight: 1.54 lbs (0.7kg).
Operating Temperature: -20°C to +60°C.
Storage Temperature: -30°C to +70°C.
Humidity: 10%~90% @30 non-condensing.
Supportive: Support Auto Power On/Wake On Lan/PXE, etc
Please note: This is a barebone only. A system memory, a storage drive and an operating system are needed to complete this item
Technical Specifications:
CPU: In-tel Core Ultra 7 155H (16C/22T, 4.8GHz).
Cache:24 MB
System: No OS
Memory: 2x DDR5 SODIMM (96GB Max). Note: It will take 5-10 minutes for the device to detect the RAM for the first time. Please be patient.
Storage: 2x M.2 2280 NVMe PCIe4.0 Slot.
Networking: 2x i226 2.5Gbe LAN.
I/O: 1xDP 2.1, 3 x USB 3.2 Gen2, 1x USB 2.0, 1 x USB Type-C 40 Gbps, 1 x HDM1 2.1 (4K@60Hz in TMDS mode, 8K@60Hz in FRL mode .
Power: 12-19V DC input .
Dimensions: 3.07" x 8.46" x 6.1" (75x215x155mm).
Weight: 1.54 lbs (0.7kg).
Operating Temperature: -20°C to +60°C.
Storage Temperature: -30°C to +70°C.
Humidity: 10%~90% @30 non-condensing.
Supportive: Support Auto Power On/Wake On Lan/PXE, etc
