4 Port, Firewall Micro Appliance/Mini PC- Quad Core Celeron J6412 Fanless Router PC Barebone, Support OPNsense P-F-Sense AES NI
- Firewall Micro Appliance Mini PC: Micro Firewall Hardware with Celeron J6412 Processor, 4 Cores 4 Threads, 4M Cache, Max Turbo Frequency 2.60 GHz, TDP 10W. Press "Delete" key to enter BIOS setup, support AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc
- RAM & SSD: The Firewall Mini PC Offers 1x M.2 NVMe/PCIe3.0x1 + 1 x 2.5 inch SATA3.0 7mm SSD/HDD, catering to diverse storage needs; 2 x DDR4 SODIMM non-ecc ram slots, support 2400/2666/3200MHz.
- 4 x i226-V 2.5GbE RJ45 LANs: Mini Computer with 4 x i226-V network card chip, 2.5x faster than common Gigabit Ethernet for firewalls/VPNs/routers. Soft Router can monitor network data, improve network security and powerful
- Rich interfaces: 4 x 2.5G i226V-LAN, 2 x USB3.0, 2 x USB2.0, 1 x RJ45 COM console, 1 x HDMI + 1 x DP dual display interfaces support 4K@60Hz, 1x 4G/3G SIM slot(SIM slot and MPCIE wireless slot, support WiFi/4G/3G(only USB protocol, 3 choose 1), enabling versatile 4G LTE connectivity options).
- Effic
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Model Number: HAICOTECH X2B
CPU: Celeron 6305
Cores & Threads: 2 cores, 2 threads
Cache: 4M
Base Frequency: 1.80 GHz
TDP: 15W
CPU: Celeron J6412
Cores & Threads: 4 cores, 4 threads
Cache: 4M
Max Turbo Frequency: 2.60 GHz
TDP: 10W
CPU: Pentium J5005
Cores & Threads: 4 cores, 4 threads
Cache: 4M
Max Turbo Frequency: 2.80 GHz
TDP: 10W
Chassis: Aluminum alloy
AES-NI Supported: Yes
Memory: 2 x DDR4 SODIMM non-ecc ram slots, up to 32GB, support 2400/2666/3200MHz.
Support 2 storage: 1 x M.2 NVMe/PCIe3.0x1 2280 SSD + 1x 2.5-inch SATA3.0 7mm SSD/HDD.

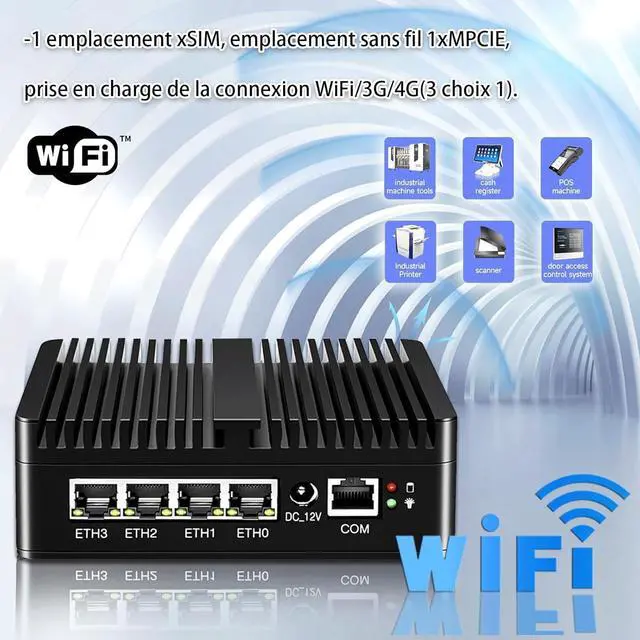

1xSIM slot, 1xMPCIE wireless slot, support WiFi/4G/3G(only USB protocol, 3 choose 1) connection(optional).
Network Card:4xi226-V 2.5G network ports

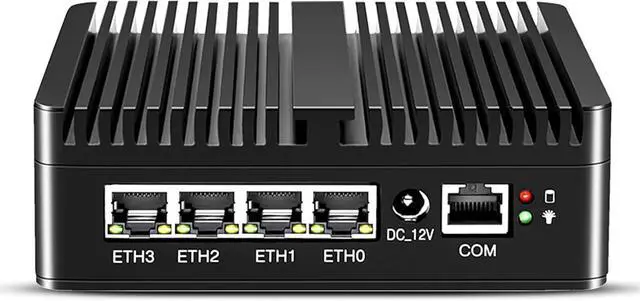

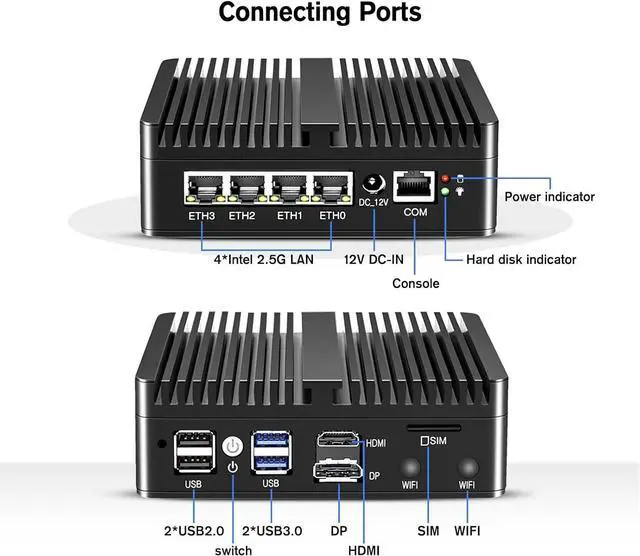

I/O Interface: 4 x i226-V 2.5G RJ45 LANs, 2 x USB3.0, 2 x USB2.0, 1 x RJ45 COM console, 1 x 4G/3G SIM slot
Dual display: 1 x HDMI2.0 + 1 x DP Supports dual 4K UHD video display.
Support AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.
Fanless system with longer fins has better cooling efficiency with a temperature 10-15 lower and performance 20-25% higher than regular versions on the market. It has a longer working life time, noiseless and durable to work as long as 7x24 hours.
Low consumption TDP and can be mounted back of monitor by VESA bracket(optional).
Power: DC 100-240V AC/50-60hz, Support wide voltage 12V input
Operating Temperature: 0°c~70°c
Storage Temperature: 0°c~70°c
Relative Humidity: 5%~85% (non-condensing)
Cooling system: Fanless

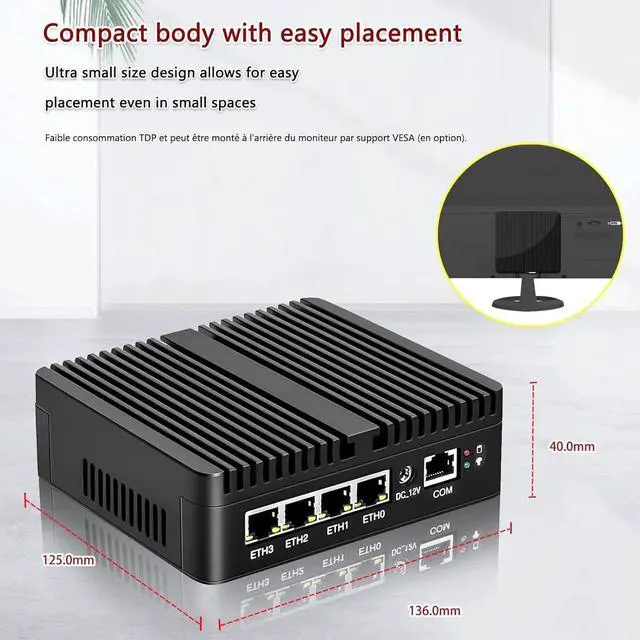

Size: 13.6 x 12.5 x 4.0 cm
Weight: 1.5kg
Compatibility: firewalls for pf sense, OPNsense and other popular open-source software solutions
Package List:
1xMini PC
1xPower Adapter
1xPower Cord
1xSATA Cable
CPU: Celeron 6305
Cores & Threads: 2 cores, 2 threads
Cache: 4M
Base Frequency: 1.80 GHz
TDP: 15W
CPU: Celeron J6412
Cores & Threads: 4 cores, 4 threads
Cache: 4M
Max Turbo Frequency: 2.60 GHz
TDP: 10W
CPU: Pentium J5005
Cores & Threads: 4 cores, 4 threads
Cache: 4M
Max Turbo Frequency: 2.80 GHz
TDP: 10W
Chassis: Aluminum alloy
AES-NI Supported: Yes
Memory: 2 x DDR4 SODIMM non-ecc ram slots, up to 32GB, support 2400/2666/3200MHz.
Support 2 storage: 1 x M.2 NVMe/PCIe3.0x1 2280 SSD + 1x 2.5-inch SATA3.0 7mm SSD/HDD.
1xSIM slot, 1xMPCIE wireless slot, support WiFi/4G/3G(only USB protocol, 3 choose 1) connection(optional).
Network Card:4xi226-V 2.5G network ports
I/O Interface: 4 x i226-V 2.5G RJ45 LANs, 2 x USB3.0, 2 x USB2.0, 1 x RJ45 COM console, 1 x 4G/3G SIM slot
Dual display: 1 x HDMI2.0 + 1 x DP Supports dual 4K UHD video display.
Support AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.
Fanless system with longer fins has better cooling efficiency with a temperature 10-15 lower and performance 20-25% higher than regular versions on the market. It has a longer working life time, noiseless and durable to work as long as 7x24 hours.
Low consumption TDP and can be mounted back of monitor by VESA bracket(optional).
Power: DC 100-240V AC/50-60hz, Support wide voltage 12V input
Operating Temperature: 0°c~70°c
Storage Temperature: 0°c~70°c
Relative Humidity: 5%~85% (non-condensing)
Cooling system: Fanless
Size: 13.6 x 12.5 x 4.0 cm
Weight: 1.5kg
Compatibility: firewalls for pf sense, OPNsense and other popular open-source software solutions
Package List:
1xMini PC
1xPower Adapter
1xPower Cord
1xSATA Cable
