4 Port i226 2.5G Firewall Micro Appliance, Firewall Mini PC Pentium Gold 8505, AM4 4 * 1G SFP, HDMI, DP, 4xUSB, Type-C USB2.0, AES-NI VPN Router Support pfsense Openwrt, WiFi Slot, Barebone

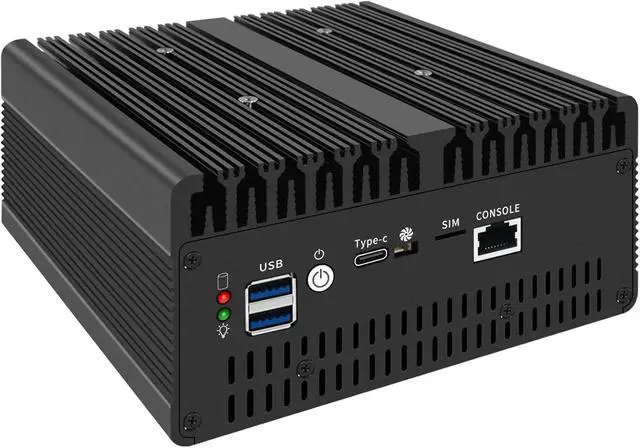

- 4K Mini PC & Firewall Appliance:This Micro Appliance is made of full aluminum alloy high quality solid-built shell, secure your network with a compact, fan firewall, the size of this machine is 150 mm * 143 mm * 84 mm, and the chassis has been lengthened to increase heat dissipation performance, just add a mouse, keyboard, display, it can serve as a working sation station for 7x24 hours home mini PC
- Efficient Processor: equipped with Pentium Gold 8505 processors, 5 cores, 6 threads, 64 bit, up to 4.4GHz, Support AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc
- Stable Firewall Lan: designed with 4* Intel i226-V 2.5G RJ45 LANs+4* Intel I350-AM4 1G SFP module, this hard hardware tested compatible with pfSense, untangle, OPNsense and other popular open-source software solutio
- Ram & SSD Design: support 2xDDR5 SODIMM non-ecc laptop ram slot, support max 64GB 4800MHz, Support 1xM.2 NVME/PCIEx4 2280 SSD+1xSATA3.0
- I/ O Port & Wifi Slot: 2xUSB, 2xUSB3.2
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product Name: 4 Lan Fan Firewall Mini PC Pentium Gold 8505
CPU: Pentium Gold 8505 ( 5C/ 6T, up tp 4.4Ghz)
Size: 150* 143* 84 cm
Weight: 1.5kg
Color: Black
PC box material: Aluminum alloy
USB: 2xUSB3.0, 2xUSB2.0

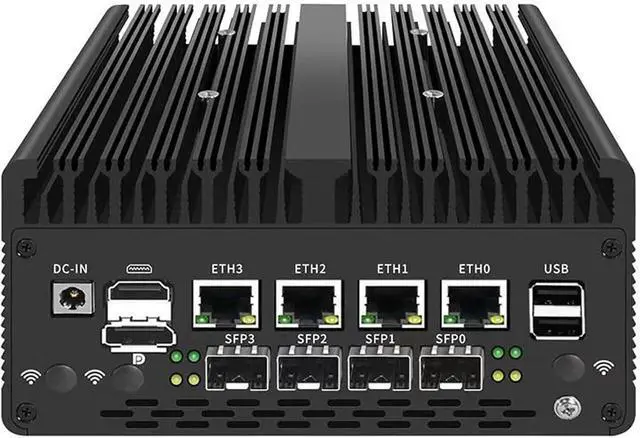

Lan: 4x Intel i226-V 2.5G RJ45 LANs

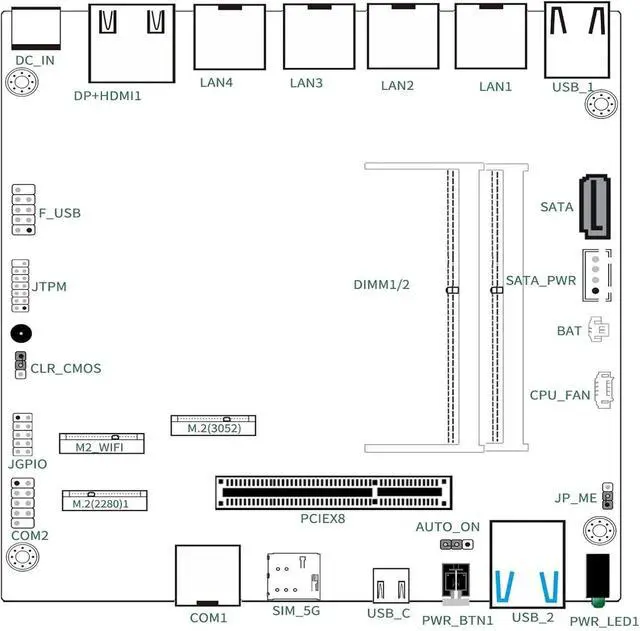

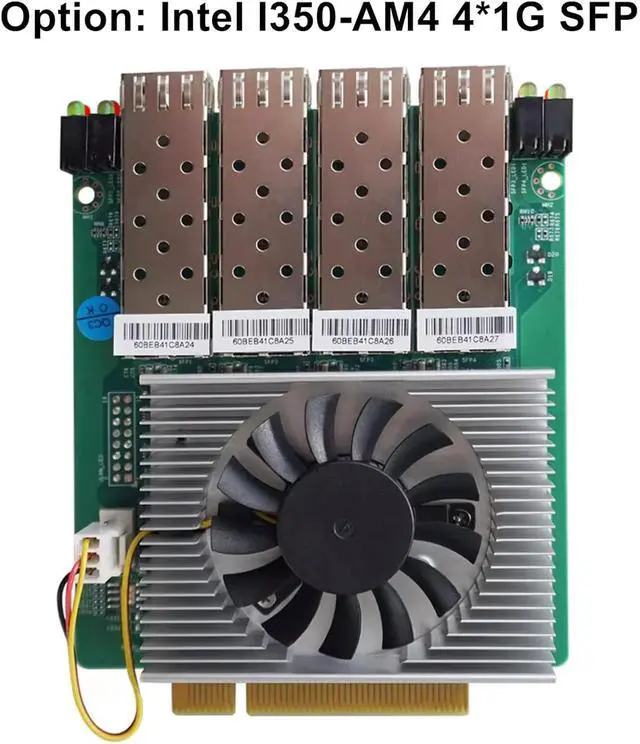

1*PCle x8 expansion slot PCIE3.0x4 signal: Intel 82599ES 2*10G SFP+ module / Intel I350-AM4 4*1G SFP module
Ram: 2xDDR5 SODIMM non-ecc laptop ram slot, support max 64GB 4800MHz
SSD: Support two storage: 1xM.2 NVME/PCIEx4 2280 SSD+1xSATA3.0
Wifi: 1xM.2 2230 slot, support PCIE3.0/USB/CNVI signal, 1xM.2 3052 slot, support PCIE3.0/USB signal

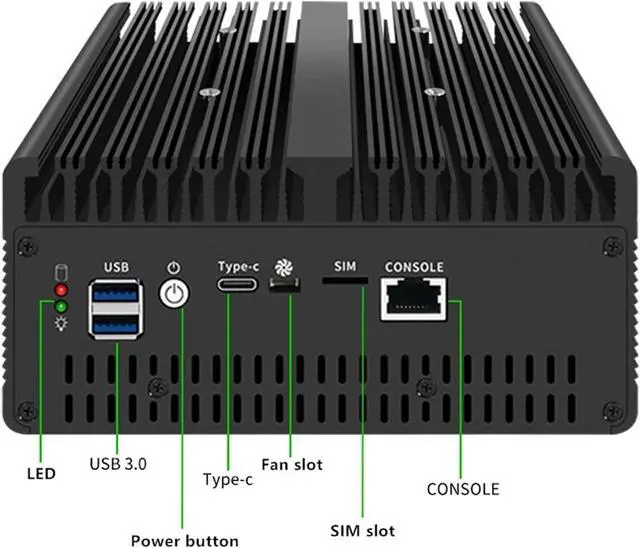

Other Port: 1xType-C USB2.0, 1xSIM_5G slot, 1xRJ45 CONSOLE
Video output:1xHDMI and 1xDP support dual 4K@60Hz UHD video display
Support AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc
Low consumption TDP and can be mounted back of monitor by VESA bracket
Heat Dissipation: Fan
Package List
1x Mini PC
1x Power Adapter
1x Power Cord
1x SATA Cable
1x Screws Bag
