SJRC Fanless Mini PC Core i5-1135G7, 6x2.5GbE LAN Barebone Firewall Hardware OPNsense, Office/Home Network Security Appliance HD 2.0, 4X USB 3.0, RJ45 Console (No RAM/SSD/System)
- Powerful 11th Gen CPU: Core i5-1135G7 4 Cores, 8 Threads, up to 4.2GHz, 8MB Cache, Iris Xe Graphics (80EU) for multitasking, 4K streaming, and light gaming. Supports AES-NI encryption and VT-x virtualization, ideal for pf-Sense, OPNsense, or VPN servers
- 6-Port 2.5G High-Speed: 6 in-tel i225-V/i226-V 2.5GbE Ethernet ports, offering ultra-fast, stable connectivity for firewalls, NAS setups. Ideal for offices, labs, or smart homes, ensures seamless traffic routing, threat monitoring, and network segmentation
- HD 2.0 & I/O Expansion: HD 2.0 supports 4K@60Hz video output, 4x USB 3.0 ports provide versatile peripheral connectivity, a RJ45 Console port for industrial devices, inside extra USB 2.0, GPIO, and COM headers offering flexible options for custom control
- Expandable DDR4 & Storage: Dual SO-DIMM DDR4 3200MHz slots (up to 64GB) + 1x M.2 NVMe slot (2280, PCIe 3.0 x1) + 1x SATA 3.0 port. SIM card slot for 4G module. BIOS supports APO/PXE/WOL/GPIO. Includes wall-mount kit for of
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
SJRC 6 LAN Core i5-1135G7 with RJ45 Console Mini PC
Please note: This is a barebone system. A memory module, storage drive, and operating system are required for full functionality.

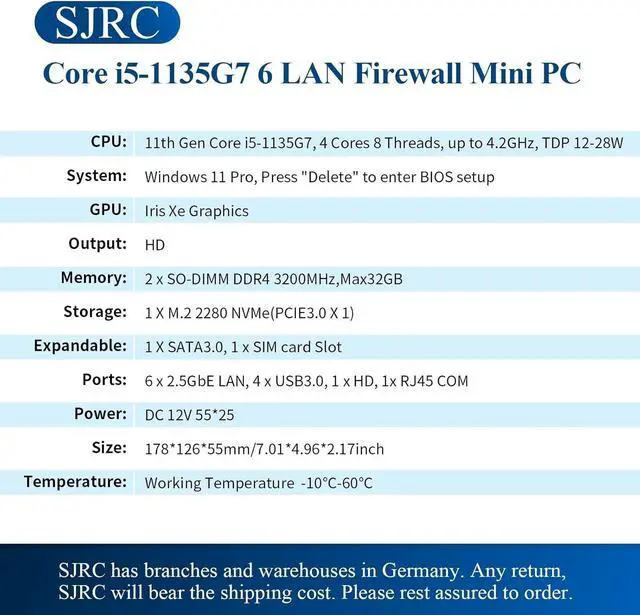

Core Performance
CPU: Core i5-1135G7 (4C/8T, up to 4.2GHz, 12-28W TDP) with Integrated Iris Xe Graphics (80EU).
Memory: Dual DDR4 SODIMM slots (up to 64GB, 3200MHz). Note: It will take 5-10 minutes for the device to detect the RAM for the first time. Please be patient.

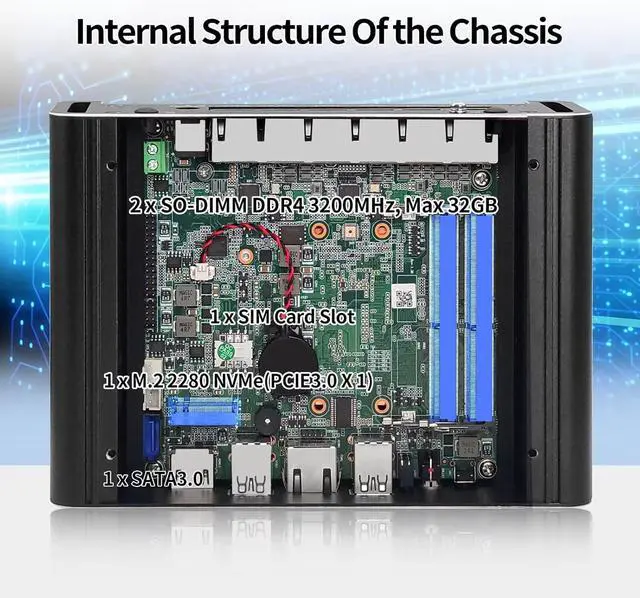

Storage: 1x 2280 M.2 NVMe (PCIe 3.0 x1) slot+ 1x SATA 3.0 slot
Networking: 6x 2.5GbE LAN ports.
COM Port: RJ45 Console port for PLCs, sensors, or legacy industrial equipment.
Optional: The SIM card slot for 4G module.
Internal Headers: 1x USB 2.0 header, 1x 4-pin 5V CPU fan header, 1x COM header, 1x GPIO header.
Display: HD 2.0 (4K@60Hz).

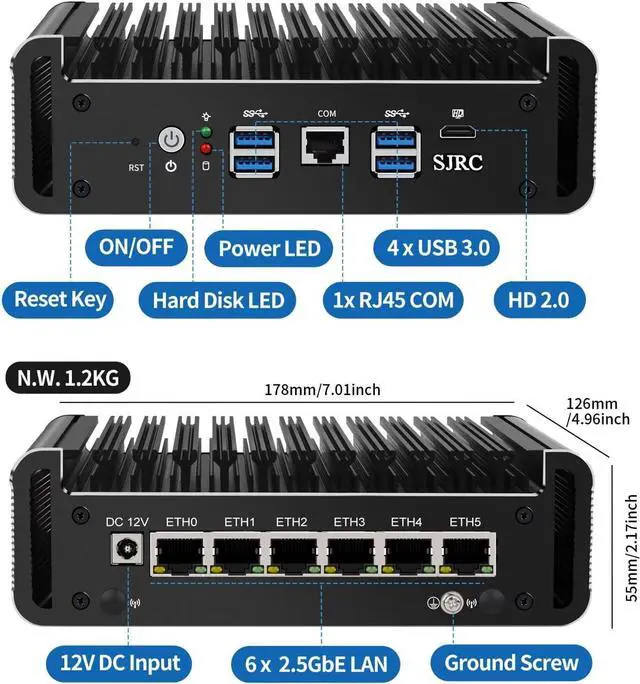

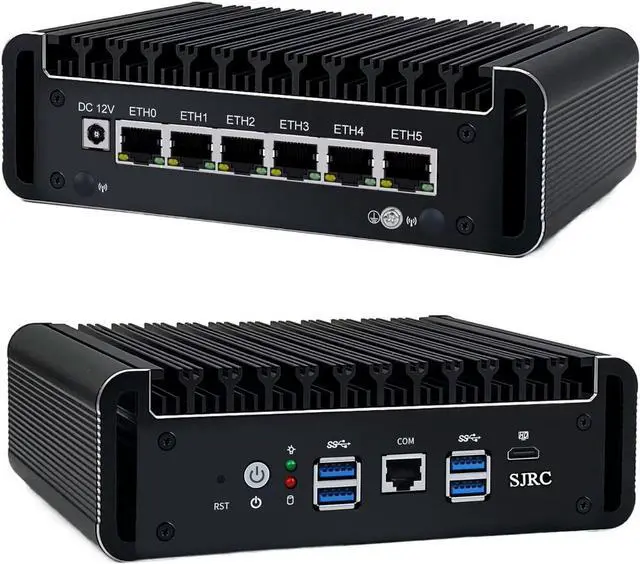

I/O Ports: 6 x LAN, 1 x Console, 4x USB 3.0, 1 x HD, 1 x ON/OFF, 1 x DC In.
Fanless Cooling: Copper block + aluminum casing.
Operating Range: -10°C to+60°C, 5%-95% humidity.
Compact & Versatile Design
Size: 17.8 cm*12.6 cm*5.5 cm (7.01" x 4.96" x 2.17"), 1.2kg (2.65lb).

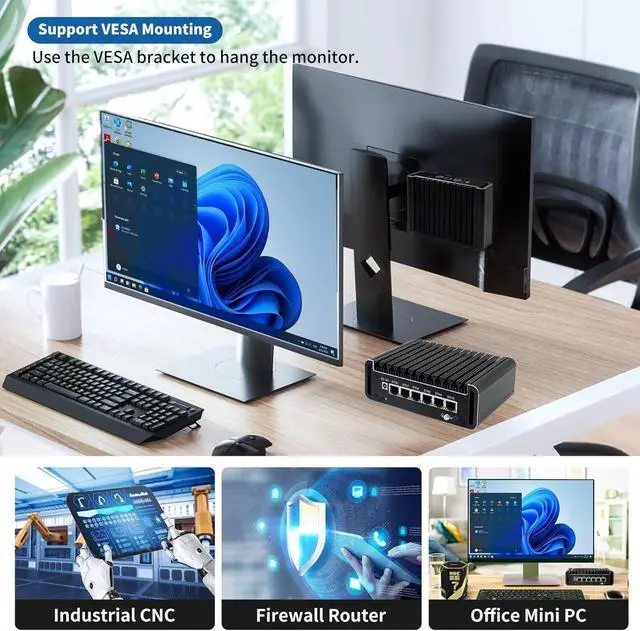

Mounting: Desktop placement or wall-mountable (bracket included).
Power: 12V DC input (55*25).
Easy Setup & Compatibility
BIOS: Supports PXE boot, Wake-on-LAN, and Auto Power On.
OS Support: Support Win, Linux.
Package Includes:1x Mini PC, 1x power adapter, 1x bracket.
Please note: This is a barebone system. A memory module, storage drive, and operating system are required for full functionality.
Core Performance
CPU: Core i5-1135G7 (4C/8T, up to 4.2GHz, 12-28W TDP) with Integrated Iris Xe Graphics (80EU).
Memory: Dual DDR4 SODIMM slots (up to 64GB, 3200MHz). Note: It will take 5-10 minutes for the device to detect the RAM for the first time. Please be patient.
Storage: 1x 2280 M.2 NVMe (PCIe 3.0 x1) slot+ 1x SATA 3.0 slot
Networking: 6x 2.5GbE LAN ports.
COM Port: RJ45 Console port for PLCs, sensors, or legacy industrial equipment.
Optional: The SIM card slot for 4G module.
Internal Headers: 1x USB 2.0 header, 1x 4-pin 5V CPU fan header, 1x COM header, 1x GPIO header.
Display: HD 2.0 (4K@60Hz).
I/O Ports: 6 x LAN, 1 x Console, 4x USB 3.0, 1 x HD, 1 x ON/OFF, 1 x DC In.
Fanless Cooling: Copper block + aluminum casing.
Operating Range: -10°C to+60°C, 5%-95% humidity.
Compact & Versatile Design
Size: 17.8 cm*12.6 cm*5.5 cm (7.01" x 4.96" x 2.17"), 1.2kg (2.65lb).
Mounting: Desktop placement or wall-mountable (bracket included).
Power: 12V DC input (55*25).
Easy Setup & Compatibility
BIOS: Supports PXE boot, Wake-on-LAN, and Auto Power On.
OS Support: Support Win, Linux.
Package Includes:1x Mini PC, 1x power adapter, 1x bracket.
