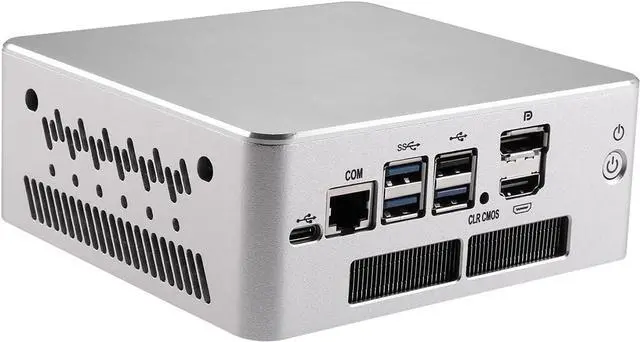

Micro Firewall Appliance, Mini PC, OPNsense, VPN, Router PC, Pentium Gold 8505, RS54, 6 x Intel 2.5GbE LAN, DP, HDMI, Type-C, with Fan, 0 RAM, 0 Storage, Barebone No System
- HUNSN RS54 equipped with intel pentium gold 8505 processor, compatible with many freebsd based router systems, linux distros, or win.os supported, easy configuration and management, support intel aes new instructions, uefi only
- Please note, this is a barebone only. A system memory, a storage drive and an operating system are needed to complete this system
- Compact aluminum, 12v5a power supply, with power cord, make sure to use a big brand memory and ssd/hdd with quality assurance
- Designed with type_c, com, 3 x usb3.0, usb2.0, clr cmos, dp, hdmi, power on/off, dc_in, 6 x lan, size at 133 x 126 x 55mm
- Original industry network motherboard, low power consumption, low heat, use dedicated turbo silent cooling fan to ensure long-term operation
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Please note:This is a barebone only. A system memory, a storage drive and an operating system are needed to complete this system
Model Number:HUNSN RS54
Chassis:Full aluminum
CPU:Intel Pentium Gold Processor 8505 8M Cache, up to 4.40 GHz
AES-NI Supported:Yes
Memory:2 x SODIMM DDR5 4800 MT/s, MAX. 96GB
Storage:2 x M.2 2280 NVME PCIE4.0 x4 SSD, 1 x 2.5 Inch SATA SSD/HDD
Network Card:6 x Intel I226-V 2.5GbE LAN

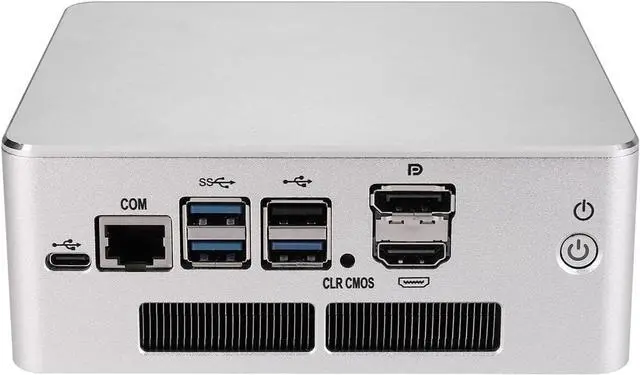

I/O Interface:Type_C, COM, 3 x USB3.0, USB2.0, CLR CMOS, DP, HDMI, Power ON/OFF, DC_IN, 6 x LAN
Expansion:1 x M2_2230 E key PCIE3.0 x1 slot for CNVI, USB2.0 signal, N/A SIM slot
Power:DC100-240V AC/50-60hz, 12V5A
Working Environment:-20°C~60°C
Relative Humidity:0%~95% non-condensing
TDP:15W
Cooling system:Turbo fan with all-copper heat pipe
Size:133 x 126 x 55mm
Weight:1.0kgs
Packing List:HUNSN RS54 firewall appliance, power supply, power cord, warranty card
Function:Supports hardware auto power on, network wake-up, system power management, temperature management
System Compatibility:5.10.x and above core-based freebsd router systems, linux distros, or win.os supported.UEFI support only
Compatibility:firewalls for pfsense, opnsense and other popular open-source software solutions
4-12 LAN/WAN Ports, Different CPU, 1U/2U Rackable, Desktop Type, are available in our shop,
Bookmark HUNSN store, for customization needs and other needs, we shall be glad to supply,contact us to get a timely reply
Model Number:HUNSN RS54
Chassis:Full aluminum
CPU:Intel Pentium Gold Processor 8505 8M Cache, up to 4.40 GHz
AES-NI Supported:Yes
Memory:2 x SODIMM DDR5 4800 MT/s, MAX. 96GB
Storage:2 x M.2 2280 NVME PCIE4.0 x4 SSD, 1 x 2.5 Inch SATA SSD/HDD
Network Card:6 x Intel I226-V 2.5GbE LAN
I/O Interface:Type_C, COM, 3 x USB3.0, USB2.0, CLR CMOS, DP, HDMI, Power ON/OFF, DC_IN, 6 x LAN
Expansion:1 x M2_2230 E key PCIE3.0 x1 slot for CNVI, USB2.0 signal, N/A SIM slot
Power:DC100-240V AC/50-60hz, 12V5A
Working Environment:-20°C~60°C
Relative Humidity:0%~95% non-condensing
TDP:15W
Cooling system:Turbo fan with all-copper heat pipe
Size:133 x 126 x 55mm
Weight:1.0kgs
Packing List:HUNSN RS54 firewall appliance, power supply, power cord, warranty card
Function:Supports hardware auto power on, network wake-up, system power management, temperature management
System Compatibility:5.10.x and above core-based freebsd router systems, linux distros, or win.os supported.UEFI support only
Compatibility:firewalls for pfsense, opnsense and other popular open-source software solutions
4-12 LAN/WAN Ports, Different CPU, 1U/2U Rackable, Desktop Type, are available in our shop,
Bookmark HUNSN store, for customization needs and other needs, we shall be glad to supply,contact us to get a timely reply
