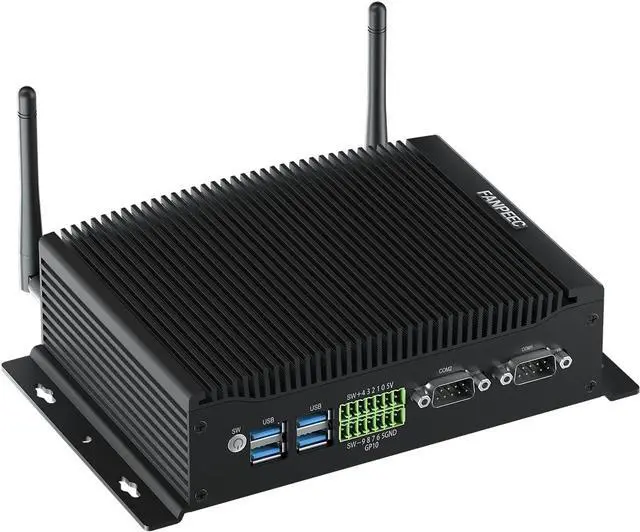

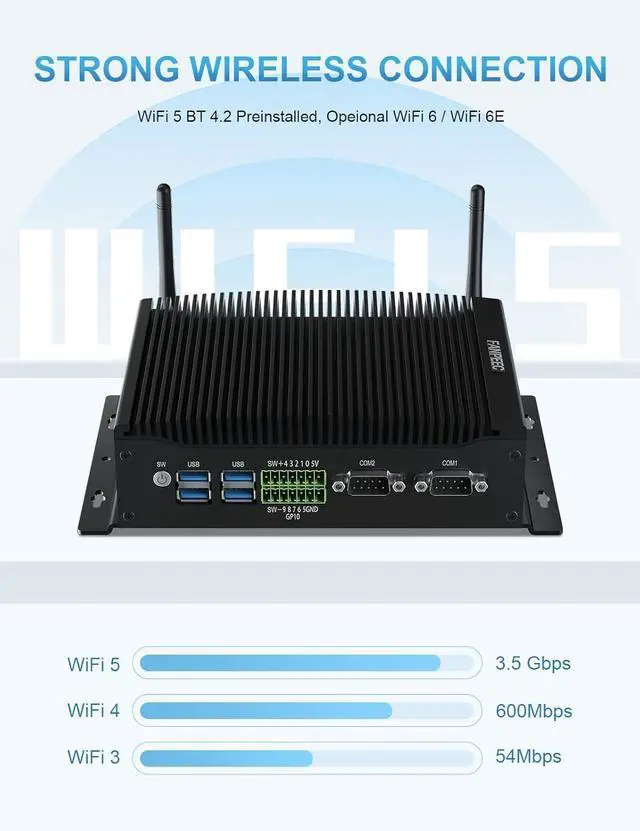

FANPEEC Industrial PC Core i7-10810U, Fanless Mini Computer 16GB DDR4 RAM 512GB M.2 SSD, WiFi5 BT4.2, Fanless Mini PC Dual LAN, 2 x RS232 COM, Industrial Computer Win11 Pro GPIO, Wake On LAN

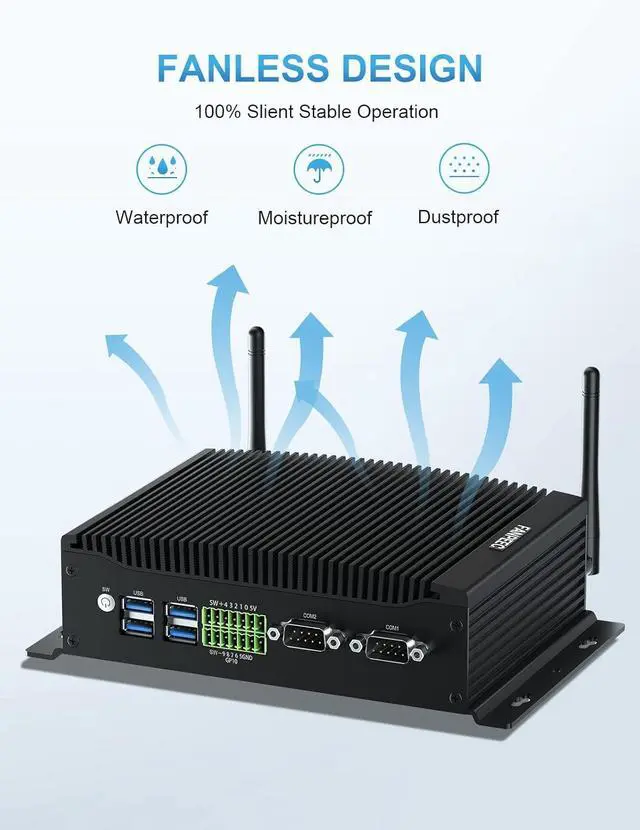

- Fanless Design for Quiet High PerformanceThis industrial mini PC features a Core i7-10810U processor (6 cores, 12 threads, up to 4.90GHz), more than capable of handling demanding industrial software and multitasking. Its innovative fanless design and aluminum alloy heatsink ensure quiet, stable operation and zero dust intrusion even under high loads, making it perfect for control rooms, laboratories, and offices requiring quiet and reliable performance.
- High speed RAM and SSD for lightning fast response This fanless PC uses DDR4 RAM, supporting up to 64GB, and is equipped with an M.2 SATA SSD to ensure smooth operation even with complex industrial software and multitasking, eliminating lag. It also provides an additional SATA 3.0 interface, allowing for easy installation of a 2.5-inch SSD/HDD to expand your storage capacity significantly. Speed and capacity, both at the same time.
- Abundant Industrial-Grade InterfacesThis industrial PC is designed for comprehensive connectivity
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Cooling systemChassis+Heat sink auxiliary heat dissipationTDP15WPhotolithography14NMMotherboard chipsetNo independent chipset, CPU integrationMemory module slot2 * DDR4 260Pin, maximum support 64G, highest
frequency: 2666MHzSound cardUSB onboard sound cardWired network card2*RJ45 LAN Realtek 8168/8111 (1000M) USB2*USB 2.04 *USB 3.0COM 2 * DB 9-pin serial port, default RS232 mode, supports switching RS422/RS485Graphics card modelUHD

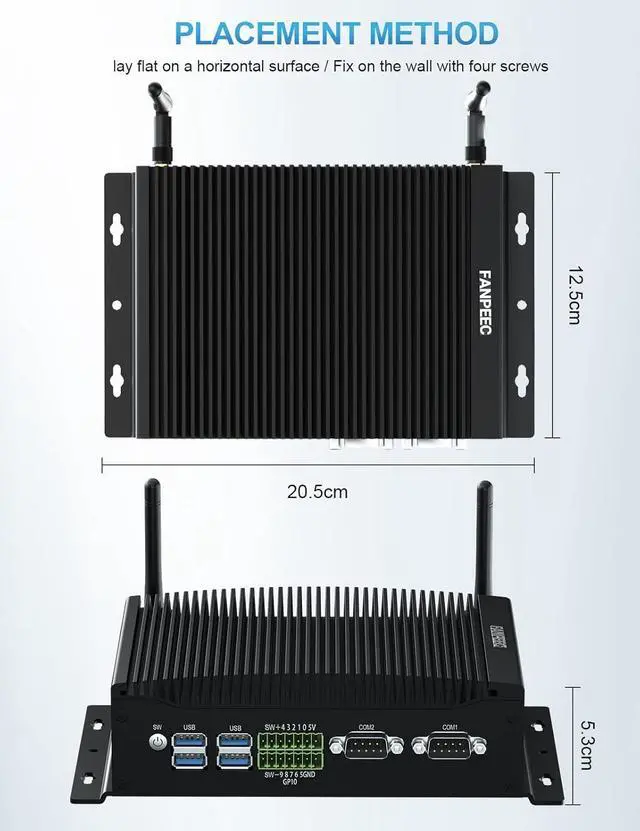

Graphics 620 VRAM: 1GBStorage port1 * M. 2 2280 slot, supporting M. 2 SATA channel SSD; 1 * SATA 3.0, supports 2.5 -inch SSD or HDD, no capacity limit but hard disk thickness cannot exceed 15MMPower input12V 6ASupported systemsSupports Win 11 Pro, compatible with Win 10 / Linux (Ubuntu, Centos, Opnsense, etc. )Installation methodSupports desktop and wall mountingWorking temperature-10 to 60 Chassis materialAluminium alloy Industrial Mini PC H6 i7-10810U FANPEC H6 Fanless Mini PC Specification Table
frequency: 2666MHzSound cardUSB onboard sound cardWired network card2*RJ45 LAN Realtek 8168/8111 (1000M) USB2*USB 2.04 *USB 3.0COM 2 * DB 9-pin serial port, default RS232 mode, supports switching RS422/RS485Graphics card modelUHD
Graphics 620 VRAM: 1GBStorage port1 * M. 2 2280 slot, supporting M. 2 SATA channel SSD; 1 * SATA 3.0, supports 2.5 -inch SSD or HDD, no capacity limit but hard disk thickness cannot exceed 15MMPower input12V 6ASupported systemsSupports Win 11 Pro, compatible with Win 10 / Linux (Ubuntu, Centos, Opnsense, etc. )Installation methodSupports desktop and wall mountingWorking temperature-10 to 60 Chassis materialAluminium alloy Industrial Mini PC H6 i7-10810U FANPEC H6 Fanless Mini PC Specification Table
