Fanless Mini PC, Industrial Computer, TPM2, I5 7260U 7360U, BX04, 2 x COM, SIM Slot, 2 x LAN, DP, HDMI, Vesa Mount, WOL, PXE, Watchdog, 32G RAM, 1TB SSD
- Compact, fully functional, stylish chassis, powered by Intel i5 7260u / 7360u processor. TDP is around 15w, if 8 hours one day, only 1-2 kWh electricity WEEKLY, power saving and space saving
- Windows 11 pro (64 bit) installed, set up is effortless and it's ready to run straight out of the box
- Fanless passive cooling design, silent solution that\u2019s ultra energy-efficient, applicable to a wide range of industrial applications, 7 x 24 hours of stable work, strong computing power, and can better meet industrial needs
- HUNSN BX04 designed with sw, 4 x usb 3.0, 2 x com com1 com2 for rs232/rs485, sim slot, audio, 2 x lan, dp, hdmi, 2 x usb2.0, dc_in, industrial aesthetic design and reasonable interface layout, support automatically power on after power failure
- Size at 166 x 127 x 55.5mm, 1.16kgs, 12v5a power supply, with power cord, all use a big brand memory and ssd/hdd with quality assurance, very powerful fanless mini pc
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Model Number:HUNSN BX04
Material:Aluminum
CPU:Intel I5 7260U/7360U Processor
Security:TPM2.0
Memory:1 x SODIMM DDR4-2133, Max. 32GB
Storage:1 x M.2 2280 SATA/NVME SSD, 1 x 2.5 Inch SATA SSD/HDD, support RAID 0/1
Network Card:Intel 2.5GbE I225-V B3/I226-V
WiFi:802.11ac 2.4 and 5Ghz
Bluetooth:4.0/4.2
Expansion:Mini PCIE for WiFi/4G, contact us to customize the 4G module

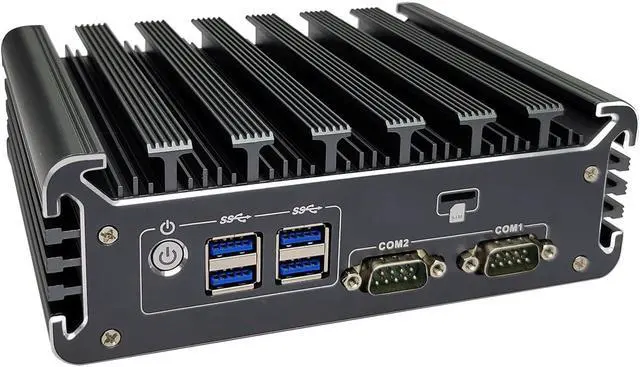

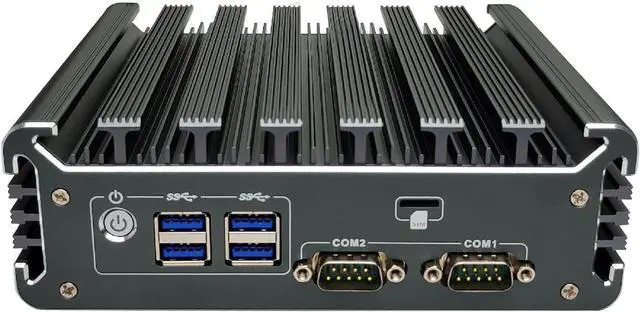

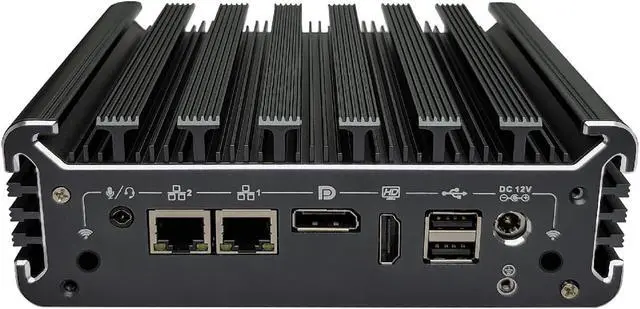

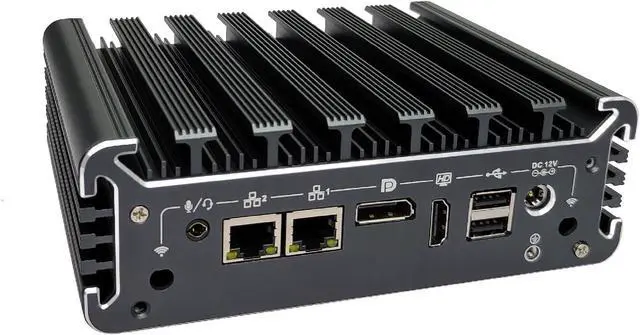

I/0 Port:SW, 4 x USB 3.0, 2 x COM COM1 COM2 for RS232/RS485, SIM Slot, Audio, 2 x LAN, DP, HDMI, 2 x USB2.0, DC_IN
Power:DC100-240V AC/50-60Hz, 12V5A
Work Temperature:0°C ~ 40°C Commercial HDD, -20°C ~ +50°C Industrial SSD, surface air flow
Work Humidity:0%~95% non-condensing
Measurement:166 x 127 x 55.5mm
Weight:1.16kgs
TDP:15W
Cooling System:Fanless
Packing List:HUNSN BX04 mini pc, power supply, power cord, WiFi antennas, vesa mount, warranty card
Function:Supports hardware auto power on, Timing boot, WOL, PXE boot, Watchdog 0~255 level
System Support:Windows 10/11, Linux Ubuntu
Hardware supports kodi, virtual system as proxmox/vmware esxi server etc
Default System:Windows 11 pro in English
ATTENTION: Other options, Linux or other system, other system language, do leave HUNSN message on the order, thank you
Material:Aluminum
CPU:Intel I5 7260U/7360U Processor
Security:TPM2.0
Memory:1 x SODIMM DDR4-2133, Max. 32GB
Storage:1 x M.2 2280 SATA/NVME SSD, 1 x 2.5 Inch SATA SSD/HDD, support RAID 0/1
Network Card:Intel 2.5GbE I225-V B3/I226-V
WiFi:802.11ac 2.4 and 5Ghz
Bluetooth:4.0/4.2
Expansion:Mini PCIE for WiFi/4G, contact us to customize the 4G module
I/0 Port:SW, 4 x USB 3.0, 2 x COM COM1 COM2 for RS232/RS485, SIM Slot, Audio, 2 x LAN, DP, HDMI, 2 x USB2.0, DC_IN
Power:DC100-240V AC/50-60Hz, 12V5A
Work Temperature:0°C ~ 40°C Commercial HDD, -20°C ~ +50°C Industrial SSD, surface air flow
Work Humidity:0%~95% non-condensing
Measurement:166 x 127 x 55.5mm
Weight:1.16kgs
TDP:15W
Cooling System:Fanless
Packing List:HUNSN BX04 mini pc, power supply, power cord, WiFi antennas, vesa mount, warranty card
Function:Supports hardware auto power on, Timing boot, WOL, PXE boot, Watchdog 0~255 level
System Support:Windows 10/11, Linux Ubuntu
Hardware supports kodi, virtual system as proxmox/vmware esxi server etc
Default System:Windows 11 pro in English
ATTENTION: Other options, Linux or other system, other system language, do leave HUNSN message on the order, thank you
