Mini PC Barebone, Ryzen 5 7535U Desktop Computer, 4x2.5GbE i226-V LAN Micro PC Win-11 Pro, 6 USB, Dual 4K, HDMI, DP, DB9 COM, No RAM NO SSD NO WI-FI
- Barebone Mini PC: Ryzen 5 7535U, 6 core 12 thread, 16M Cache, frequency 2.9GHz-4.6GHz, AMD Radeon 660M Graphics, 6 core 1900MHz, TDP 28W, 6nm Zen3+ architecture
- Ram: 2 x SO-DIMM DDR5 ram slots, 4800MHz
- SSD: Support 2xM.2 2280 NVME/PCIE4.0/3.0x4
- Ports: 4 x USB 3.2, 2 x USB 2.0, 4 x RJ45 2.5G LANs, 1 x HDMI2.1, 1 x DP2.1, 1 x DB9 COM, 1 x Switch, 1 x Audio, 1 x DC-IN
- Feature: The fan is blowing directly on the shell fins, it can stop running and be completely silent when the CPU's temperature is below 45, fan's highest Speed is 2000 rpm with maximum noise about 28dB.
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Material: Full Aluminum
CPU: Ryzen 5 8645HS, 6 core 12 thread, 16M Cache, frequency 4.3GHz-5.0GHz, AMD Radeon 760M Graphics, 8 core 2600MHz, TDP 45W, 4nm Zen4 architecture
CPU: Ryzen 5 7535U, 6 core 12 thread, 16M Cache, frequency 2.9GHz-4.6GHz, AMD Radeon 660M Graphics, 6 core 1900MHz, TDP 28W, 6nm Zen3+ architecture
Ram: 2 x SO-DIMM DDR5 laptop ram slots, 5600MHz(Ryzen 5 8645HS), 4800MHz(Ryzen 5 7535U)
SSD: Support 2xM.2 2280 NVME/PCIE4.0/3.0x4
WiFi: M.2 2230 slot supports Wi-Fi6 module(Not included, optional to buy)

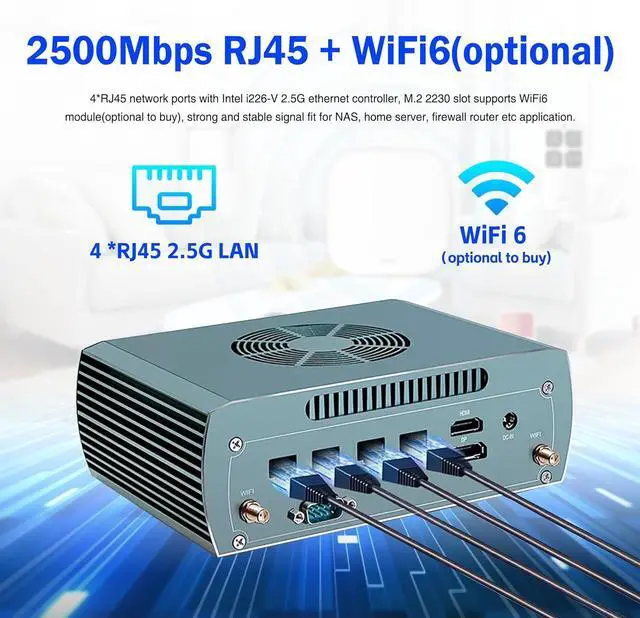

RJ45: 4 x i226-V 2.5G

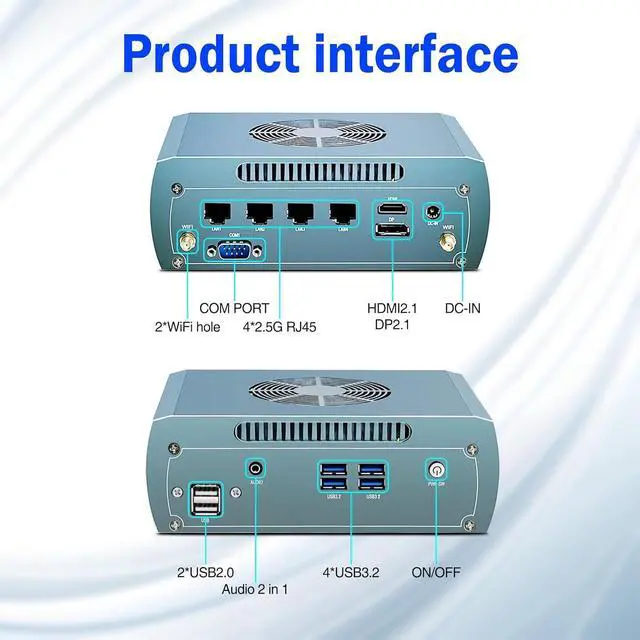

Front I/O: 4 x USB 3.2, 2 x USB 2.0, 1 x Audio, 1 x Switch

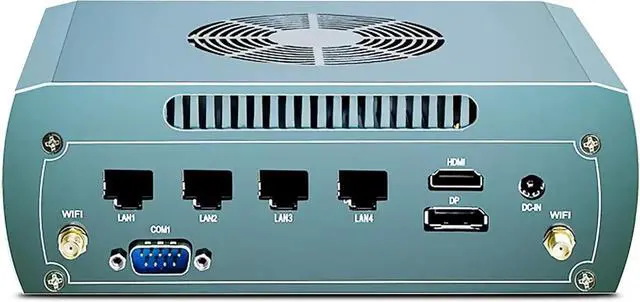

Rear I/O: 4 x RJ45 2.5G LANs, 1 x HDMI2.1, 1 x DP2.1, 1 x DB9 COM, 1 x DC-IN
OS: Support Win-11, Ubuntu, pf-Sense, OPNsense, Proxmox, ESXi etc new Linux kernel system supporting Intel i226-V ethernet controller
Dimension: 18.0 x 12.65 x 6.5 cm(LxWxH)
All aluminum shell fins passive heat-sink + intelligent fan cooling, using fan and motherboard isolation technology to achieve dust and corrosion prevention. The fan is blowing directly on the shell fins, it can stop running and be completely silent when the CPU's temperature is below 45, fan's highest Speed is 2000 rpm with maximum noise about 28dB.
Package List:
1 x Mini PC
1 x Power Adapter
1 x Power Cable
2 x Antenna
CPU: Ryzen 5 8645HS, 6 core 12 thread, 16M Cache, frequency 4.3GHz-5.0GHz, AMD Radeon 760M Graphics, 8 core 2600MHz, TDP 45W, 4nm Zen4 architecture
CPU: Ryzen 5 7535U, 6 core 12 thread, 16M Cache, frequency 2.9GHz-4.6GHz, AMD Radeon 660M Graphics, 6 core 1900MHz, TDP 28W, 6nm Zen3+ architecture
Ram: 2 x SO-DIMM DDR5 laptop ram slots, 5600MHz(Ryzen 5 8645HS), 4800MHz(Ryzen 5 7535U)
SSD: Support 2xM.2 2280 NVME/PCIE4.0/3.0x4
WiFi: M.2 2230 slot supports Wi-Fi6 module(Not included, optional to buy)
RJ45: 4 x i226-V 2.5G
Front I/O: 4 x USB 3.2, 2 x USB 2.0, 1 x Audio, 1 x Switch
Rear I/O: 4 x RJ45 2.5G LANs, 1 x HDMI2.1, 1 x DP2.1, 1 x DB9 COM, 1 x DC-IN
OS: Support Win-11, Ubuntu, pf-Sense, OPNsense, Proxmox, ESXi etc new Linux kernel system supporting Intel i226-V ethernet controller
Dimension: 18.0 x 12.65 x 6.5 cm(LxWxH)
All aluminum shell fins passive heat-sink + intelligent fan cooling, using fan and motherboard isolation technology to achieve dust and corrosion prevention. The fan is blowing directly on the shell fins, it can stop running and be completely silent when the CPU's temperature is below 45, fan's highest Speed is 2000 rpm with maximum noise about 28dB.
Package List:
1 x Mini PC
1 x Power Adapter
1 x Power Cable
2 x Antenna
