Mini PC Fanless Industrial PC N100(up to 3.4 GHz),Mini Desktop Computer Dual 2.5G LAN,4K 3xDisplays(2HD+DP), 2COM RS232, USB3.0 WiFi Type-C,Auto Power On,NO RAM NO SSD (NO RAM NO SSD)
- Powerful N100 Processor: N100 Processor, 4 Cores 4 Threads, 6M Cache, Max Turbo Frequency 3.4 GHz, TDP 6 W. Compatible with OPNsense, Linux, Windows,ESXI, OpenWrt and other systems. AMI 128M BIOS (Winbond 25Q128JVSQ), supports Call Auto - Activation, PXE, WOL
- Dual 2.5G LAN: Mini Router PC with 2 x i226-V network card chip full UDE 2.5G with filter connector. Soft Router can monitor network data, improve network security, powerful and widely used. 1 * MINI-PCIE (Supports USB WIFI/4G USB protocol (optional PCIE protocol same as M.2_WIFI - PCIE)),1*M.2_WIFI (E_KEY) 2230 sub - PCIE protocol, supports CNVI;1*Mini SIM compatible with Nano SIM.
- DDR4 Memory & Large Storage Capacity: Firewall box computer with 1 x DDR4 SO-DIMM memory 3200MHz, 1*SATA 3.0 6Gb/s1× M.2 SSD 2280 (NGFF/PCIEx2 Adaptive)
- UHD Graphics & Triple Display: N100 processor integrated UHD Graphics, 2HD and DP triple display interfaces support [email protected]:The memory can be expanded up to 32GB, but due
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

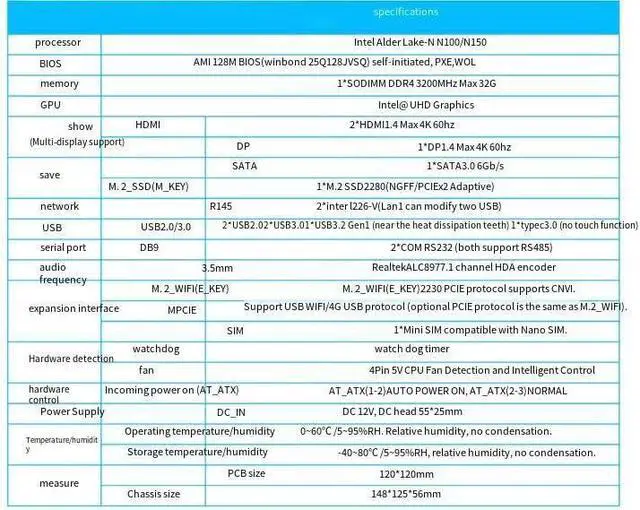

Product Highlight

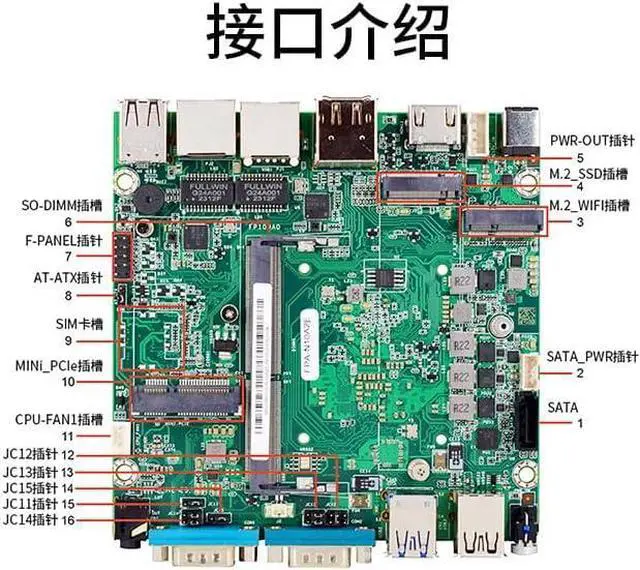

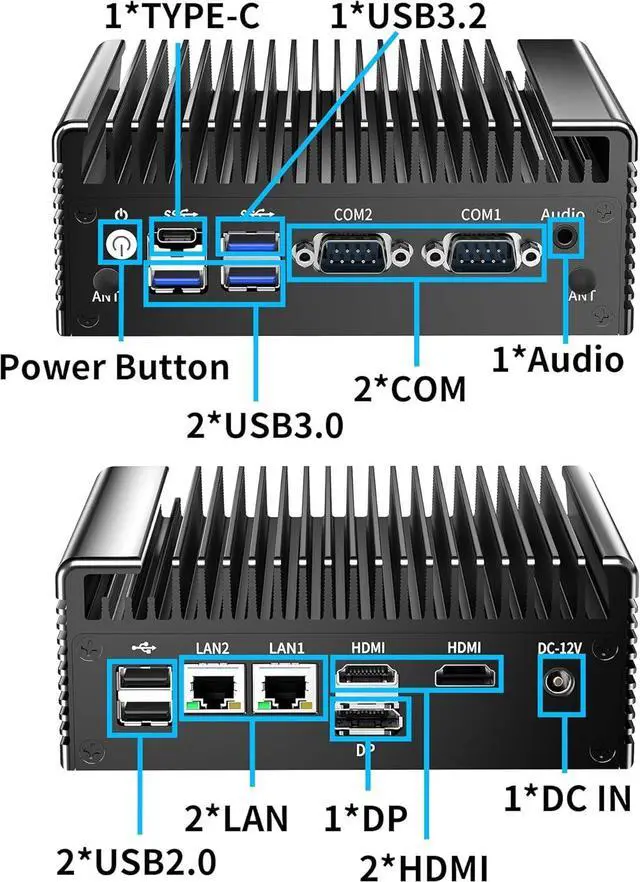

-2× Inte li226 - V (Lan1 can be modified to two USB ports)
-2*USB2.0,2*USB3.0,1*USB3.2 Gen1 (near the heat dissipation teeth) ,1*typec3.0 (no touch function),2*COM RS232 (both support RS485), .
-1 * SODIMM slot, single channel 3200MHz DDR4 memory, maximum support 32GB
--Support two storage: 1*SATA 3.0 6Gb/s1× M.2 SSD 2280 (NGFF/PCIEx2 Adaptive)
-Support 2*HDMI1.4 and 1x DP1.4 Triple display
-Expansion interface:1 * MINI-PCIE (Supports USB WIFI/4G USB protocol (optional PCIE protocol same as M.2_WIFI - PCIE)),1*M.2_WIFI (E_KEY) 2230 sub - PCIE protocol, supports CNVI;1*Mini SIM compatible with Nano SIM.
Power Supply: DC 12V(2.5 55*25mm)
Audio:Realtek ALC897 7.1 - channel HDA encoder
-Operating system:Windows 10/Windows 11/Linux
GPU:Intel UHD Graphics
Operating temperature/humidity: -0~60 /5~95%RH, relative humidity, no condensation.
Temperature/humidity Storage temperature/humidity: -40~80 /5~95%RH, relative humidity, no condensation.
PCB size 120*120mm
-2× Inte li226 - V (Lan1 can be modified to two USB ports)
-2*USB2.0,2*USB3.0,1*USB3.2 Gen1 (near the heat dissipation teeth) ,1*typec3.0 (no touch function),2*COM RS232 (both support RS485), .
-1 * SODIMM slot, single channel 3200MHz DDR4 memory, maximum support 32GB
--Support two storage: 1*SATA 3.0 6Gb/s1× M.2 SSD 2280 (NGFF/PCIEx2 Adaptive)
-Support 2*HDMI1.4 and 1x DP1.4 Triple display
-Expansion interface:1 * MINI-PCIE (Supports USB WIFI/4G USB protocol (optional PCIE protocol same as M.2_WIFI - PCIE)),1*M.2_WIFI (E_KEY) 2230 sub - PCIE protocol, supports CNVI;1*Mini SIM compatible with Nano SIM.
Power Supply: DC 12V(2.5 55*25mm)
Audio:Realtek ALC897 7.1 - channel HDA encoder
-Operating system:Windows 10/Windows 11/Linux
GPU:Intel UHD Graphics
Operating temperature/humidity: -0~60 /5~95%RH, relative humidity, no condensation.
Temperature/humidity Storage temperature/humidity: -40~80 /5~95%RH, relative humidity, no condensation.
PCB size 120*120mm
