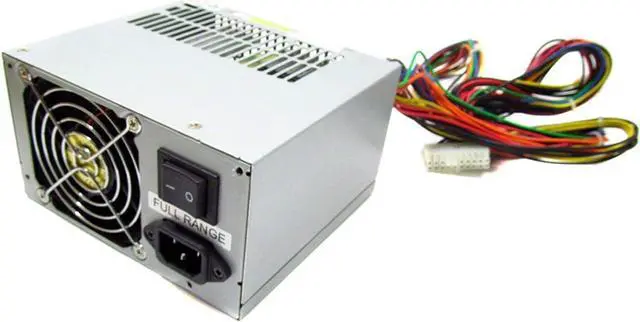

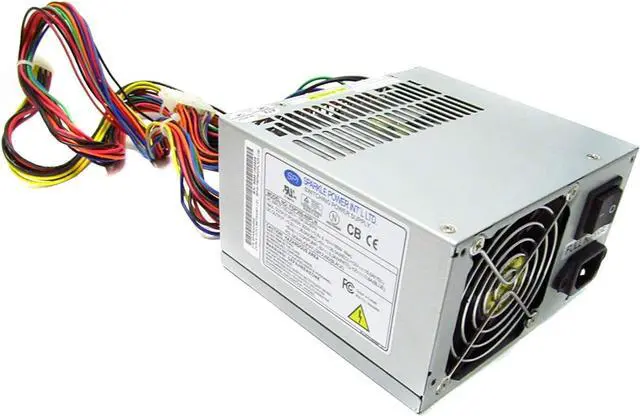

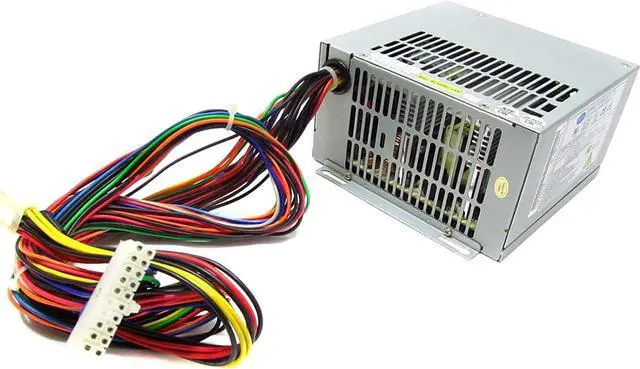

SPI FSP300-60PLN Power Supply ATX 12v 300 Watt Size 150x140x86mm PSU

Specifications - Mfr Part Number: FSP300-60PLNR- Features: - 20pin Main Power connector - Complied with ATX and ATX12V standard - Active Power factor correction (PFC) meet EN61000-3-2 - High efficiency and reliability - Remote On/Off function - Internal 12V DC fan included - Noise Killer (Thermal fan speed control function) - Low noise and ripple - Complies with FCC part 15 subpart J class B and CISPR 22 Class B - Output over voltage, short circuit, and over current protection - 100% Hi-pot, ATE, and burn-in tested - Re-settable power shut down - Approved by UL 1950, CSA C22.2 Level 3, TUV EN60950, NEMKO (CB Report), and CE - Input: - Input Range: 90 ~ 264 V AC, Full Input Range - Frequency: 47 ~ 63 Hz - Input Current: 6A (RMS) @115V AC, 3A (RMS) @230VAC - Inrush Current: 60A Max for 115V AC, 90A Max for 230V AC - Output: - Total Watts: 300 W - +5V and +3.3V total output not exceed 180W - +3.3V, +5V, and +12V total output not exceed 280W - Dielectric Withstand: Primary to frame ground 1800V AC for 1 second- Efficiency: 65% at minimum measured at nominal AC main voltage and frequency with maximum load on all output- Rise Time: Less than 20ms- Hold-up Time: 17ms minimum at nominal input voltage- Power Good Signal: Power on delay time 100 ms to 500 ms, off delay 1ms minimum (TTL and CMOS compatible)- Leakage Current: Less than 0.75mA at 115V AC/60Hz- MTBF: 100,000 hours on maximum load at +25°C degree- Dimension (WxLxH): 5.9 x 5.5 x 3.4 inch / 150 x 140 x 86 mm
