R1 Optical Firewall Mini PC,Alder Lake N100/i3-N305,Dual 10G Optical Ports,Dual 2.5G RJ45 Ports,Four Network Ports,DDR5 RAM,M.2 NVMe SSD,Dual HDMI2.0 (CPU/N150, NO RAM/NO SSD)

Alder Lake-N:N100/i3-N305.TDP of N100 is 6W and i3-N305 for 15W. N100 has 4 cores and 4 threads, with a clockspeed of 0.8GHz and a turbo speed up to 3.4GHz; i3-N305 has 8 cores and 8 threads, with a clockspeed of 1.8GHz and a turbo speed up to 3.8GHz. Meanwhile, the GPU models of these two CPUs are both intel UHD Graphics. N100 is 24EU;i3-N305 is 32EU.

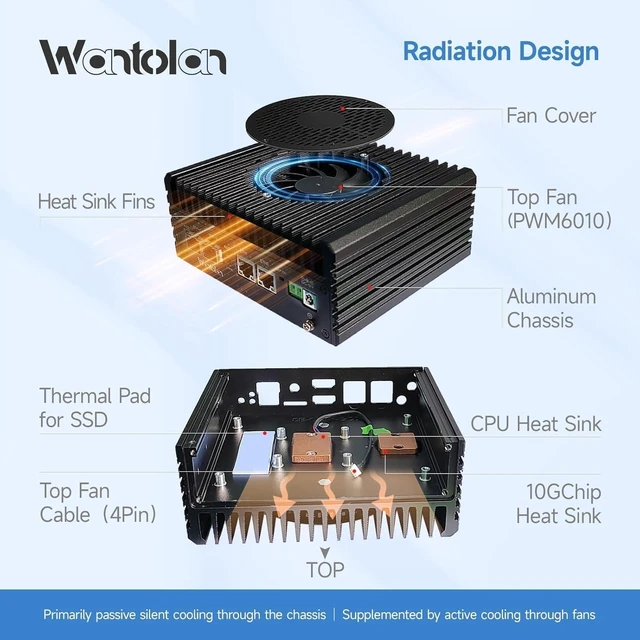

CPU intel Alder Lake N100/i3-N305 RAM Single SO-DIMM DDR5 4800MHz SSD Single M.2 NVMe PCIe3.0*1 Network Ports Dual 10G Optical Ports,Dual 2.5G RJ45 Ports Display Dual HDMI2.0 USB 4*USB2.0,1*USB3.2 Gen1,1*Type-C(USB2.0,No Display,No Power) Expand interfaces M.2 E-Key PCIe3.0*1,4Pin SATA3.0,COM Size and Weight 5.83 inch*5 inch*2.36 inch,1.1Kg Radiation Design Primarily passive silent cooling through the chassis,Supplemented by active cooling through fans OS Default pfsense(support Windows and Linux) Wantolan R1 Optical Firewall Mini PC,intel 12Gen Alder Lake N100/i3-N305,Dual 10G Optical Ports,Dual 2.5G RJ45 Ports,DDR5 RAM,M.2 NVMe SSD This is a 10G firewall mini PC. The dual SFP+ and dual RJ45 2.5G configurations provide us with more intelligent routing and firewall applications. Parameter List
