AMD Mini PC Ryzen 2200U 2700U 3550H Windows 10 Pro, Mini Gaming Computer 16GB DDR4 512GB M.2 NVME SSD, HDMI DP Type-C AC WiFi BT(16GB DDR4 RAM, 512GB NVME SSD, AC WiFi, AMD Ryzen 7 2700U)

CPU: There are 3 kinds of processor parameters for your selection below.
1. 14nm AMD Ryzen 3 2200U 2 cores 4 threads 2.5GHz up to 3.4GHz 4MB cache TDP 15W Radeon Vega 3 Graphics 3 Cores 1100MHz
2. 14nm AMD Ryzen 7 2700U 4 cores 8 threads 2.2GHz up to 3.8GHz 4MB cache TDP 15W Radeon Vega 10 Graphics 10 Cores 1300MHz.
3. 12nmAMD Ryzen 5 3550H 4 cores 8 threads 2.1GHz up to 3.7GHz 4MB cache TDP 35W Radeon Vega 8 Graphics 8 Cores 1200MHz.
Memory/RAM: 2 x SODIMM DDR4 memory slot up to 32GB.
Network: Support 1 x RJ45 10/100M/1000M+2.4G/5G AC WiFi&Bluetooth.
Storage: Support 1 x M.2 22x80 NVME/PCIE3.0x4 SSD+1 x 2.5'' SATA HDD.
Display: Support 3 displays with DP, Type-C and HDMI 2.0 interfaces, Enjoy 4K Ultra HD videos.
Functions: Support SenseMI Technology/DirectX 12/Wake on lan/ PXE/Auto restart when lost power.
Switch: 1 x Power On/Off Switch
Power: 1 x 19V DC In
LED: 1 x LED
USB: 3 x USB3.0, 2 x USB2.0
Display: 1 x DP, 1 x HD2.0, 1 x Type-C(DP and type-C request Activate cable for display, not Passive type)
LAN: 1 x RJ45 LAN
Audio: 1 x MIC, 1 x SPK
Operating System Support Windows 10/ Linux, default Windows 10 Pro 64bit CPU AMD Ryzen 5 3550H / AMD Ryzen 7 2700U / AMD Ryzen 3 2200U(optional) GPU Depends on the CPU RAM 2 x SO-DIMM Slot, up to 32GB DDR4 Dual Channel, up to DDR4-2400MHz WiFi 1 x M.2 NGFF 2230(Key E) slot for Wi-Fi module (WIFI 802.11 b/g/n/ac+BT 4.1), built-in Realtek 8821 WiFi module M.2 SSD 1 x M.2 slot for M.2 NVME 22*80(Key M), up to 2TB(Only NVME PCIe3.0x4) SATA HDD/SSD 1 x SATA3.0 slot for 9.5mm SATA HDD or SSD, up to 2TB, support 6Gb/s Interfaces 3USB3.0, 2USB2.0, MIC, SPK, RJ45 Gigabit LAN, HDMI2.0 DP Type-C three display output ports(DP and Type-C request activate cable for display) Power Input Vol/Adapter Input 100-240V AC/50-60Hz, DC 19V/3.42A Supported Technology SenseMI Technology/DirectX 12 Dimensions and Weight 129 .2x130.2x50mm, Black color PVP top and aluminum alloy body, Net 1kg(only A1 device without Ram/M.2 SSD/WiFi module), Gross 1.5kg(A1 device with Ram/M.2 SSD/WiFi module incl. 19V power adapter) Network Realtek 8821CE Wireless PCIe GbE Family Controller, 10/100Mbps/1000Mbps BaseT LAN Audio Realtek ALC269 @ AMD K17.1 - Audio Processor - High Definition Audio Controller Additional Function PXE, Auto Power on, Wake on LAN Cooling Mode Turbo cooler Pakage Content 1 x Mini PC , 1 x Power Adapter(Power cable with US plug), 1 x Power and Data Cables(for 2.5'' SATA HDD), 1 x Screws Bag, 1 x Brief user manual If you are looking for a Mini PC, picked for you that our AMD Mini PC A1 with HD2.0, DP, Type-C three display ports, please pay attention that the DP and Type-C ports request Activate cable for display, it doesnt support "Passive" display cable.
We advise you connect the display outports well by the display cable before you connect the mini pc A1 with the power.
The Ryzen Mini PC A1 supports HD2.0, DP, Type-C three display ports 4K@60Hz HD(3840 x 2160) ultra-high-definition content, you can enjoy 4K Web surfing, video playback, watching TV, home theater, and enjoy the entertainment with your family.
When connecting 4K monitor/TV, you shall use the high-quality and proper HDMI2.0 cable for 4K display.

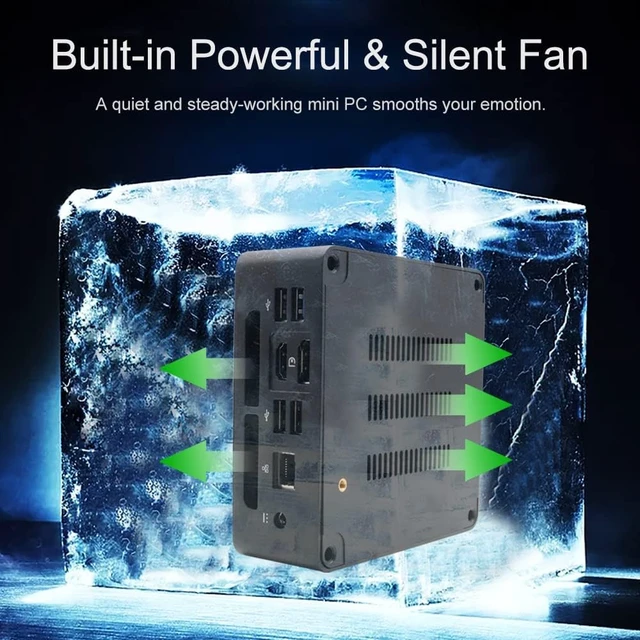

Smart, cute and miniature designed on this Mini PC A1 which build-in a powerful silent turbo cooler and aluminum alloy body for heat dissipation can keep steady working long time.
Fan system, the cooling fan constantly runs, you cant setup it from BIOS. Our technical team setup it well according to the speed of fan and heat dissipation before coming out.
The AMD Mini PC Ryzen A1 is equipped with Realtek 8821 WiFi module - fast speed wireless network and provide your stable wireless experience. And the computer with one Gigabit Ethernet port can surf the internet fast and smoothly connecting the cable.
The AMD Ryzen Mini PC A1 supports 1xM.2 NVME 22*80(Key M), up to 2TB(Only NVME PC
