FakestarPC Firewall Micro Appliance Core 3 i3-N300,6X i226-V 2.5G with Fan Mini PC,4*USB,HDMI,DP,1*RJ45 COM, Industrial PC,No RAM No SSD
- Powerful CPU: Equipped with Core 3 i3-N300 CPU, 8 cores,8 threads, and up to 3.80 GHz, ensuring smooth operation for industrial applications.
- 6 Port Firewall Lan: The firewall pc is i226-V 2.5G RJ45 LANs and this hard hardware tested compatible with pf-Sense, untangle, OPNsense and other popular open-source software solutions
- Ram&SSD1xDDR5 SODIMM ram slot, support max 16GB 4800MHz.Support three storage: 2xM.2 2280 NVMe/PCIE3.0x1 SSD(one on each side of motherboard)+1x2.5''SATA3.0 7mm SSD/HDD.
- Dual 4K@60Hz display & rich functions 1xHDMI2.0 and 1xDP1.4 support dual 4K@60Hz UHD video display. Compatible with AES-NI, ESXI, PVE, PXE boot, Wake-on-LAN, suitable for virtualization and industrial use.
- Dual-mode cooling All-aluminum finned shell with isolated dual cooling system, switchable between low-noise fan mode and silent fanless mode, dust-proof and anti-corrosion. Low TDP and optional VESA mount save desktop space.
+
+
Overview
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Product Highlight:
-Core 3 100U,6 cores,8 threads,up to 4.70 GHz,10M L3 Cache,TDP 15W.
-Core i3-N300,8 cores,8 threads,up to 3.80 GHz,6M L3 Cache,TDP 7W.
Core i3-N300 model:
-1xDDR5 SODIMM ram slot, support max 16GB 4800MHz.

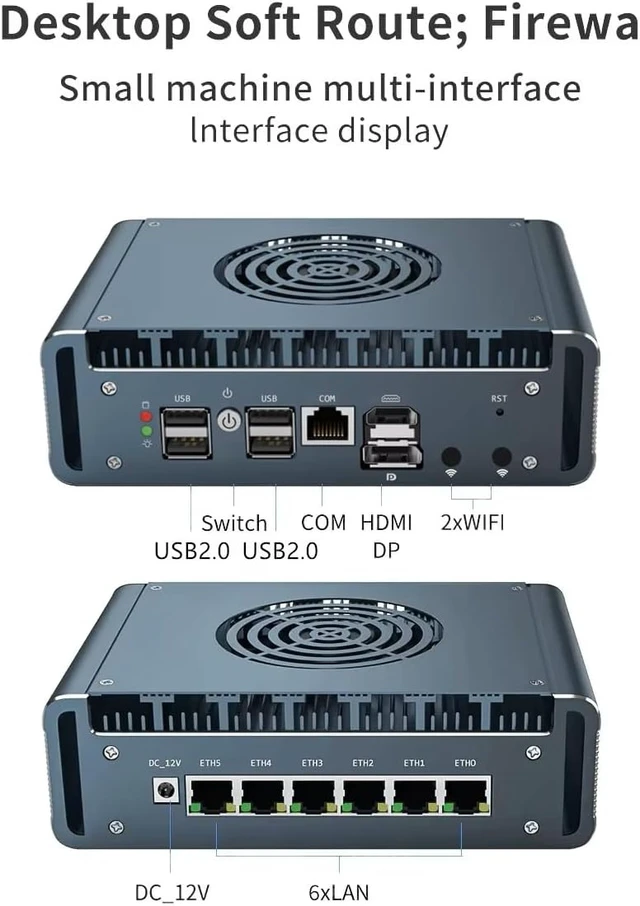

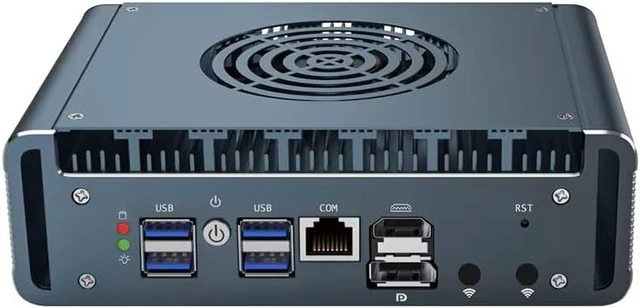

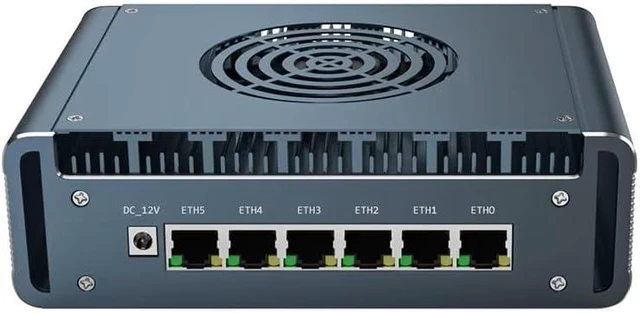

-6x i226-V 2.5G RJ45 LANs, 4xUSB2.0, 1xRJ45 COM console.
-Support three storage: 2xM.2 2280 NVMe/PCIE3.0x1 SSD(one on each side of motherboard)+1x2.5''SATA3.0 7mm SSD/HDD.
-1xSIM slot, 1xMPCIE slot, support WiFi/4G(2 choose 1) connection.
Core 3 100U model:
-2xDDR5 SODIMM ram slots, support max 64GB 4800MHz.
-6x i226-V 2.5G RJ45 LANs, 4xUSB3.0, 1xRJ45 COM console.
-Support two storage: 1xM.2 2280 NVMe/PCIEx4 SSD+1x7mm 2.5'' SATA SSD/HDD.
-1xSIM slot, 1xM.2 2230 WiFi slot(CNVI/PCIE signal), 1xMPCIE slot, support WiFi/4G(2 choose 1) connection.
-1xHDMI2.0 and 1xDP1.4 support dual 4K@60Hz UHD video display.
-Support AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.
-Innovation: All aluminum shell fins passive heat-sink + intelligent fan cooling, using fan and motherboard isolation technology to achieve dust and corrosion prevention. It is flexible to change between fanless system and fan system. A fan built in solid aluminum case with cooling fins gets much better heat dissipation to release CPU performance totally, sound of the fan is low. You can unplug fan pin off motherboard to make it fanless system if you want silence totally.
-Low consumption TDP and can be mounted back of monitor by VESA bracket(optional).
