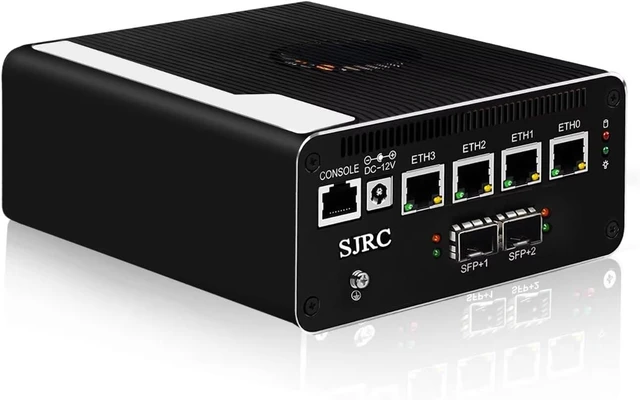

Main image of SJRC Mini PC Firewall Appliance U300 5-Core, Dual 10GbE SFP+, 4x2.5GbE RJ45

Alt view image 2 of 7 - SJRC Mini PC Firewall Appliance U300 5-Core, Dual 10GbE SFP+, 4x2.5GbE RJ45

Alt view image 3 of 7 - SJRC Mini PC Firewall Appliance U300 5-Core, Dual 10GbE SFP+, 4x2.5GbE RJ45

Alt view image 4 of 7 - SJRC Mini PC Firewall Appliance U300 5-Core, Dual 10GbE SFP+, 4x2.5GbE RJ45

Alt view image 5 of 7 - SJRC Mini PC Firewall Appliance U300 5-Core, Dual 10GbE SFP+, 4x2.5GbE RJ45

Alt view image 6 of 7 - SJRC Mini PC Firewall Appliance U300 5-Core, Dual 10GbE SFP+, 4x2.5GbE RJ45

Alt view image 7 of 7 - SJRC Mini PC Firewall Appliance U300 5-Core, Dual 10GbE SFP+, 4x2.5GbE RJ45

Shop All NaSR Products | Visit XinjintongLimited Store

SJRC Mini PC Firewall Appliance U300 5-Core, Dual 10GbE SFP+, 4x2.5GbE RJ45

Be the first to review this product...

S4 OPNsense Micro Computer with DDR5 16GB RAM & 256GB M.2 NVMe SSD, supports AES-NI, USB-C, TF, SIM, 4 Display
13th Gen U300 Raptor Lake Processor: SJRC Mini PC equipped efficient performance with 5 cores and 6 threads (1P + 4E), up to 4.40GHz boost, 8MB cache and 12W base power. Supporting up to 20 PCIe lanes with Gen4, it's hybrid architecture enables smooth multitasking and dependable 24/7 operation for firewalls, software routers and edge networking applications
10GbE + 2.5GbE Network Connectivity: Built for demanding firewall and edge networking, this system combines 2 × 10GbE SFP+ interfaces using 82599ES controllers with 4 × 2.5GbE i226-V RJ45 ports. The 10GbE interfaces connect through a PCIe x8 expansion, support PCIe passthrough. SFP+ ports work with optical modules and DAC cables and are compatible with FreeBSD

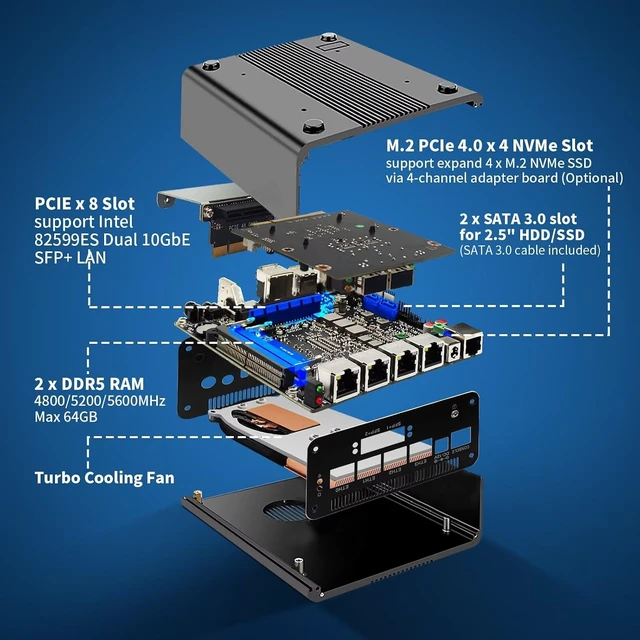

Dual DDR5 RAM + PCIe 4.0 Expansion: 2 × DDR5 SO-DIMM slots support up to 64GB at 4800MHz, 5200MHz with 13th Gen CPUs, and 5600MHz modules at reduced speed. 1 × M.

Overview

Reviews

Any questions? Ask Celeste^SM will help you find out quickly.

Try me now

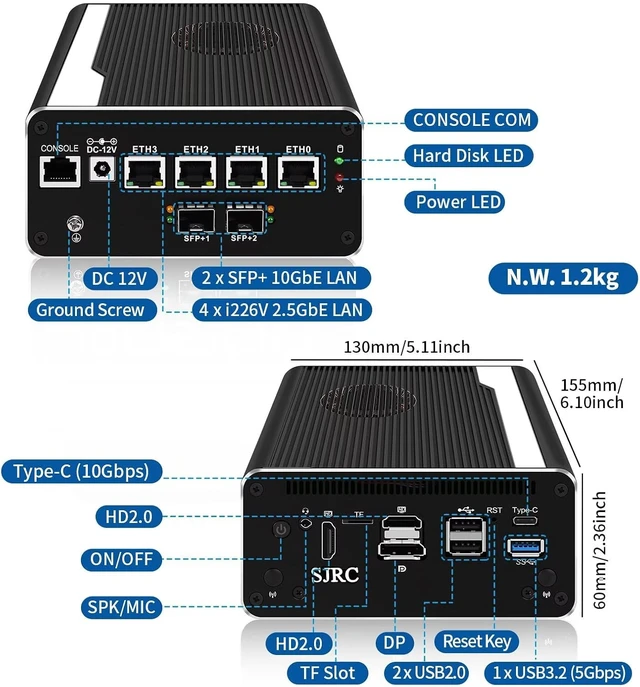

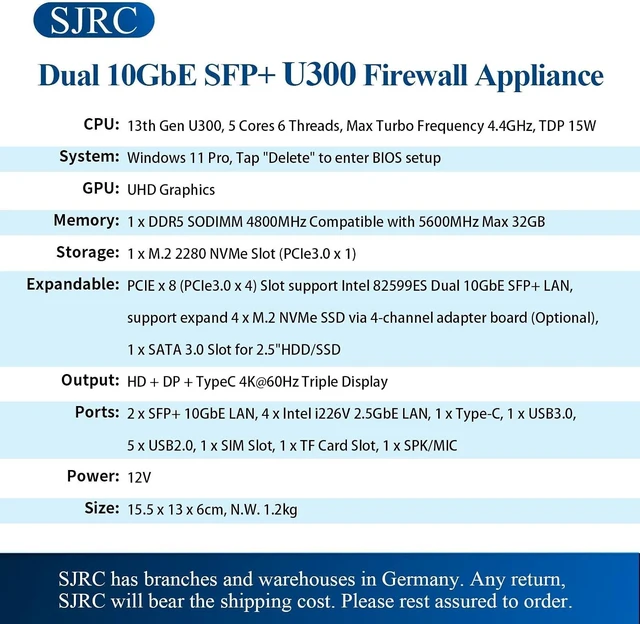

SJRC S4 Dual 10GbE + 4 × 2.5GbE LAN Port Mini PC
Processor Options: 13th Gen U300 / 12th Gen Core i5-1250P
Memory: 2 × SO-DIMM DDR5 RAM slots, supporting up to 64GB. Memory speeds of 4800/5200/5600MHz depend on the installed CPU.
Storage: 1 × M.2 M-Key 2280/22110 NVMe SSD slot (PCIe 4.0 x4) + 2 × SATA 3.0 ports for 2.5-inch SSDs. SATA drives can be externally mounted through the bottom openings.
Network: 2 × 10GbE SFP+ LAN with 82599ES controllers via PCIe x8 expansion, supporting PCIe passthrough, + 4 × 2.5GbE i226-V RJ45 LAN ports.
Display: 2 × HD 2.0 + 1 × DP 1.4 + 1 × Type-C with DP Alt Mode. Supports up to 4 displays at 4K@60Hz.
USB: 1 × USB Type-C with 10Gbps data transfer and DP Alt Mode + 1 × USB 3.2 (5Gbps) + 2 × USB 2.0.
Console: 1 × RJ45 console port for system maintenance.
Internal Headers: 2 × 7-pin TPM (2.00mm), 2 × 5-pin F_PANEL (2.54mm), and 2 × 5-pin GPIO (2.00mm, 4-channel GPIO).
Housing & Cooling: Full metal housing with an intelligent CPU fan. Active cooling with automatic fan speed adjustment.
VESA Mount: Supported, with bottom mounting holes for VESA installation.
Power Input: DC 1219V
Dimensions: 15.5 × 13.0 × 6.0 cm / 6.1 × 5.11 × 2.36 inches
Weight: 1.2 kg / 2.65 lb
Box Contents: SJRC S4 Mini PC, power adapter, SATA cable, fan adapter cable and screws.
Supported Operating Systems & Applications: FreeBSD, PVE VMs, Hyper-V, Win Server, Linux, software routers and virtual network applications.
Support: English electronic manual included.
