Industrial Fanless PC i7 10510U Industrial Mini PC 6xCOM, 4K Triple Display

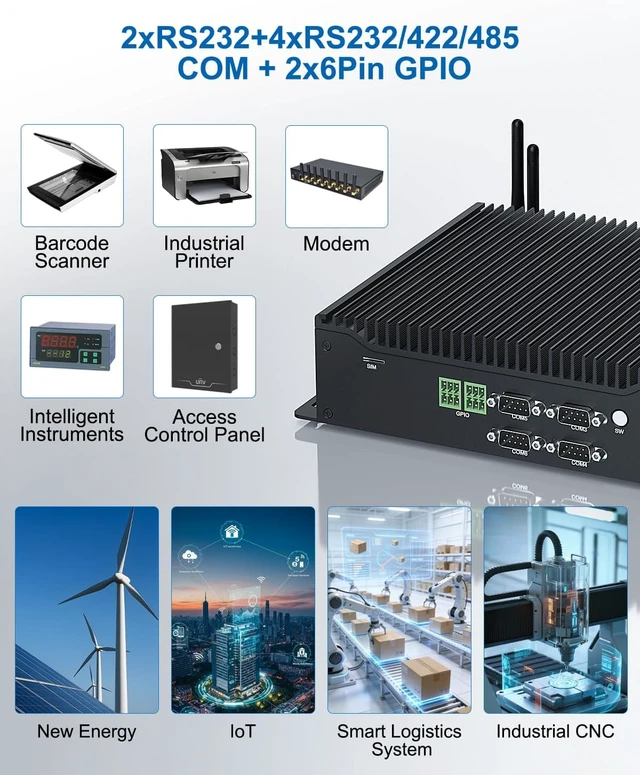

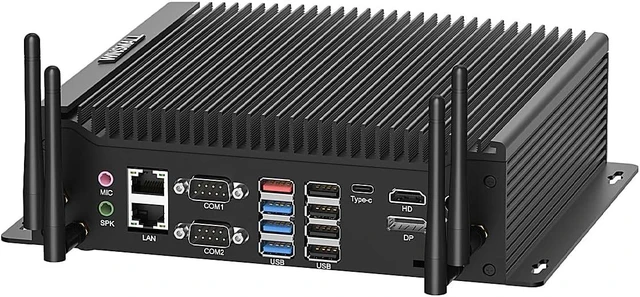

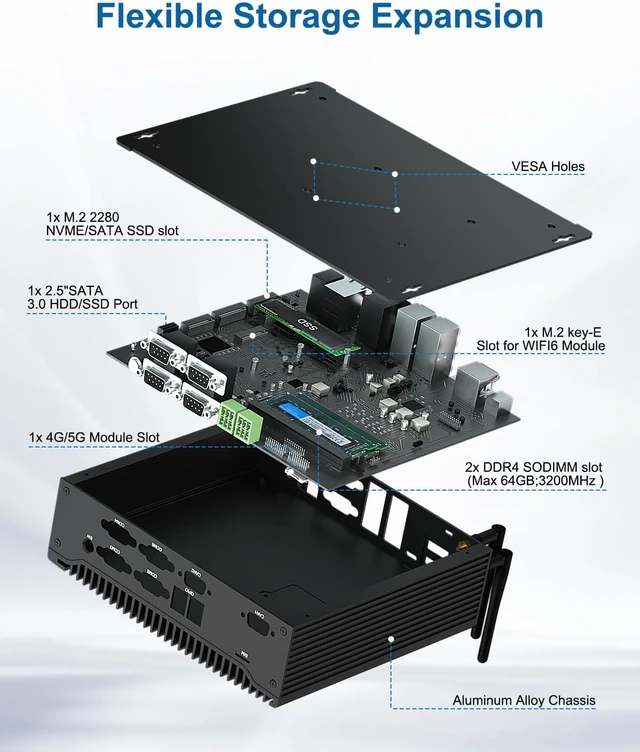

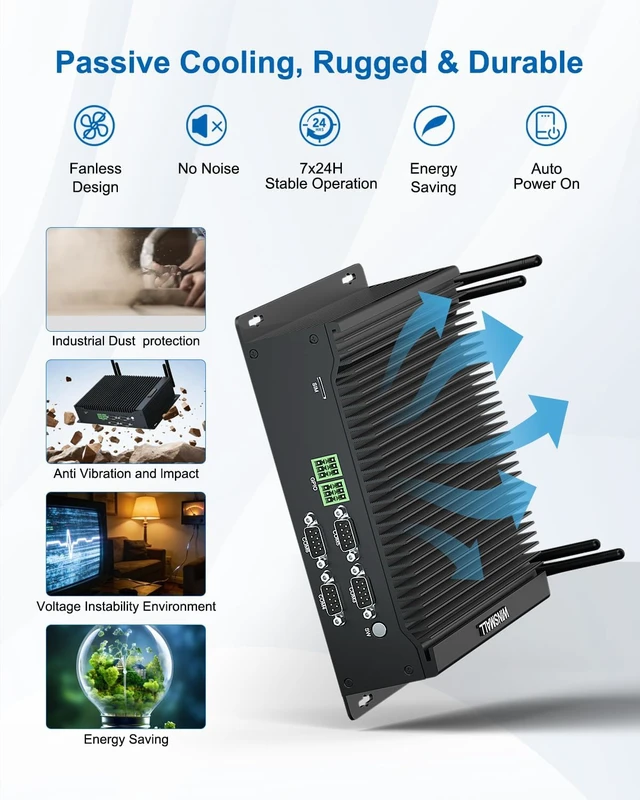

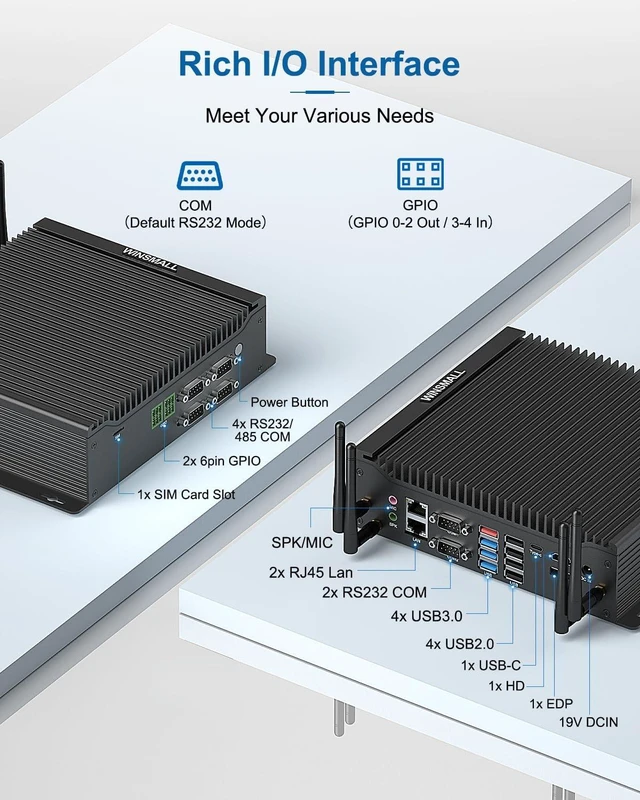

CPU & GPU 10th Gen Core i7-10510U Processor, 4 Cores 8 Threads, 1.8GH z- 4.9GH z, UHD Graphics Memory (RAM) Support 2 x M. 2 NVME PCIE 4.0 SSD, and 1 x SATA 3.0 slot for 2.5 '' HDD / SSD Storage(SSD/HDD) 1 x M. 2 3.0 NVME/SATA Pci-E 3.0 x 4 SSD (2280) and 1 x 2.5 inch SATA 3.0 HDD/SSD WiFi WIFI 6, BT 5.2, (1 x M. 2 key-E, 22*30MM Output HD 1.4 (4K@30Hz) + EDP (4K@60Hz, Pas de sortie audio) + USB-C (4K@60Hz) Gigabit Lan Port 2 x Gigabit Lan Port, i210/211 (1000M) Other I/O 4 x USB 2.0, 4 x USB 3.0, 4 x DB9 RS232/422/485 COM, 2 x DB9 RS232 COM, 2 x 6 pin GPIO, 3.5 mm SPK/MIC, 19V DCIN Operating System Support Win 10 pro/Win 11 Pro/Win 11 Pro IOT/Linux Ubuntu/Debain Full Functions Auto Power On (realized via jumper connection on motherboard), Wake On Lan (enabled by default), RAID0/1, PXE, RTC, TPM 2.0, Watchdog Material & Noise Full aluminum alloy, fanless design, silent and dust-proof Operating Environment -10°C to 55°C, features thermal shock resistance and aging resistance Size/Weight 23 x 18.2 x 6.5 cm, NW: 1.9KG Power Adapter 19V 4.74A, 90W (DC 5.5 * 2.5MM ) SIM Slot 1 x onboard Nano SIM card slot, support 4G/5G SIM card ( 12.3 * 8.8 mm) SIM LTE Module 1 x M. 2 KEY-B slot for expanding 4G/5G modules (42x30/52x30mm). LTE module needs self-installation CAN Bus expansion 1 x Full-size mPCIe slot ( 51.0 × 30.0 mm) for expanding CAN Bus converters. CAN Bus converter needs self-installation and is not included. 1Industrial Grade2RS232/RS485 & GPIO34K 60Hz Triple Display4Packing list00 $ 590.00 $ 590.00 $ 768.20 $ 768.20 $ 425.04 $ 425.04 $ 814.34 $ 814.34 $ 988.00 $ 988.00 $1, 022.00 $1, 022.00 CPU N95 (4 C/4 T, up to 3.4G hz) N100 (4 C/4 T, up to 3.4G hz) core i7 8550U(4C/8T, 4.0G hz) core i5 8250U(4C/8T, 3.4G hz) core i5 1235U(10C/12T, 4.4G hz) core i5 1235U(10C/12T, 4.4G hz) core i7 10510U(4C/8T, 4.9G hz) RAM 8GB DDR4 (Max 32GB) 16GB DDR4 (Max 32GB) 16GB DDR4 (Max 64GB) 16GB DDR4 (Max 64GB) 16GB DDR4 (Max 64GB) 16GB DDR5 (Max 64GB) 32GB DDR4 (Max 64GB) Hard Disk 256GB NVME SSD (Max 2TB) 256GB NVME SSD (Max 2TB) 512GB NVME SSD (Max 2TB) 256GB SSD (Max 2TB) 512GB NVME SSD (Max 2TB) 512GB NVME SSD (Max 2TB) 512GB NVME SSD (Max 2TB) Display Port 2 x HD + 1 x DP, 3 Display 2 x HD + 1 x DP, 3 Display 1 x HD + 1 x VGA, 2 Display 1 x HD + 1 x VGA, 2 Display 2 x HD + 1 x DP, 3 Display 2 x HD + 1 x DP, 3 Display 2 x HD, 2 Display Lan Port 2 x RJ45 Lan Port 2 x RJ45 Lan Port 2 x 2.5G be Lan Port 2 x 2.5G be Lan Port 2 x RJ45 Lan Port 2 x 2.5G be Lan Port 2 x RJ45 Lan Port COM Port 2 x RS232 COM 2 x RS232 COM 6 x RS232 COM 6 x RS232 COM 2x RS232/422/485 COM 4x RS232, 2x RS232/422/485 COM 2 x RS232 COM Other Port 4 x USB, SPK/MIC 4 x USB, SPK/MIC 6 x USB, SPK/MIC 6 x USB, SPK/MIC 6 x USB, SPK/MIC 8 x USB, SPK/MIC 8 x USB, SPK/MIC Support SIM Card NO NO support 3G/4G SIM support 3G/4G SIM support 3G/4G SIM support 3G/4G SIM support 3G/4G SIM OS WIN 11 Pro WIN 11 Pro WIN 11 Pro WIN 11 Pro WIN 11 Pro WIN 11 Pro WIN 11 Pro WIFI6 & 2.5G be Lan Deploy Anywhere WH4T 5G Industrial Micro PC Technical

Specifications
