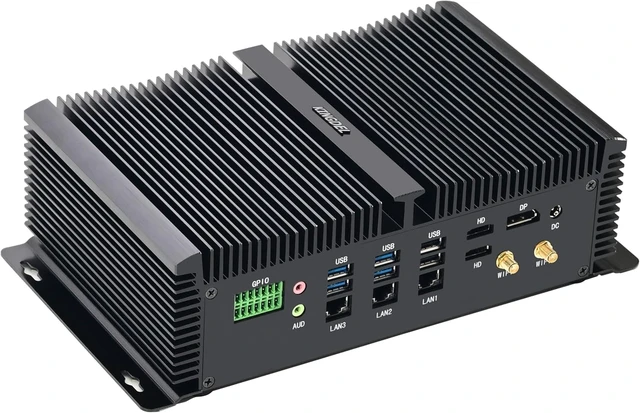

Mini Desktop PC Core i5-1235U, 16GB DDR5 RAM 1TB NVMe SSD USB3.0/2.5G i226V LAN/8K/COM RS232 Fanless Small Computer Support 8K Triple Display
- CPU ProcessorMini Fanless PC comes with Core i5-1235U Processor (12th Generation Core i5 Processors), 10 Cores, 12 Threads, 4.40GHz Max Turbo Frequency, 3.30 GHz Efficient-core Max Turbo Frequency, 12MB Smart Cache.
- StorageThe Fanless Mini PC pre-installed 16GB DDR5 4800MHz RAM, 1TB M.2 NVMe 2280 SSD.
- Processor GraphicsThe Powerful Industrial PC is equipped with Iris Xe Graphics eligible, Max Resolution(HD)4096x2304@60Hz, Max Resolution(DP)7680x4320@60Hz, 1.20GHz Graphics Max Dynamic Frequency. Support 8K.
- Rich I/O InterfacesMini computer includes 4xUSB3.0, 4xUSB2.0, 1xDP, 2xHD, 3xi226 2.5G LAN, 8xRS232 COM, 1x Audio input/output, 1xGPIO, 1xKB/MS, 1xDC IN, 1xSW.
- Fanless Cooling DesignThe Faster Mini Desktop Computer featured by zero noise, fanless design and full metal case.
+
+
Overview
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
KINDLY BE ADVISED
There are 2 types of DP cables available: "Active" and "Passive".
The DP port from the computer works with "Active" type DP cable, if yours is "Passive", it won't display.
SPECIFICATION
Processor: Core i5-1235U Processor
CPU Specifications: 10 Cores2 of Performance-cores+8 of Efficient-cores), 12 Threads, 12MB Smart Cache.
4.40GHz Max Turbo Frequency, 4.40GHz Performance-core Max Turbo Frequency, 3.30 GHz Efficient-core Max Turbo Frequency.
GPU: Iris Xe Graphics eligible, Max Resolution (HD) 4096x2304@60Hz, Max Resolution (DP) 7680x4320@60Hz. 1.20GHz Graphics Max Dynamic Frequency.
BIOS: AMI BIOS, ACPI supported.
Memory: Dual RAM slots support DDR5, Max 32GB*2.
Storage: 2*M.2 2280 NVME SSD slots support PCIE4.0X4, 1x2.5 inches HDD
Network Card: Onboard 3*i226 2.5G LAN.
1*MINI PCIE interface 4G module, onboard SIM card slot.
Sound Card: USB sound card chip and HD simulates 6-channel sound effects.
USB interface: 8*USB, including 4*USB 3.0 and 4*USB 2.0
Cooling Mode: Air (Fanless)
Power Supply: Input: AC100-240V, 50-60Hz; Output: DC 19V
Operating Temperature: -10°C~60°C; Storage Temperature: -20°C~80°C; Relative Humidity: 10%~90% (non-condensing)
FEATURE:
8*COM port, of which COM1&COM2 support RS232 RS422 RS485 soft handoff;
8-bit GPIO meets more industrial equipment needs;
Supports 4G network module, SIM card can be directly inserted into the motherboard;
Support triple display,2*HD2.1+1*DP1.4, max support 8K
Support Restore AC Power Loss, Power-On by Alarm, Wake On Lan and PXE.
There are 2 types of DP cables available: "Active" and "Passive".
The DP port from the computer works with "Active" type DP cable, if yours is "Passive", it won't display.
SPECIFICATION
Processor: Core i5-1235U Processor
CPU Specifications: 10 Cores2 of Performance-cores+8 of Efficient-cores), 12 Threads, 12MB Smart Cache.
4.40GHz Max Turbo Frequency, 4.40GHz Performance-core Max Turbo Frequency, 3.30 GHz Efficient-core Max Turbo Frequency.
GPU: Iris Xe Graphics eligible, Max Resolution (HD) 4096x2304@60Hz, Max Resolution (DP) 7680x4320@60Hz. 1.20GHz Graphics Max Dynamic Frequency.
BIOS: AMI BIOS, ACPI supported.
Memory: Dual RAM slots support DDR5, Max 32GB*2.
Storage: 2*M.2 2280 NVME SSD slots support PCIE4.0X4, 1x2.5 inches HDD
Network Card: Onboard 3*i226 2.5G LAN.
1*MINI PCIE interface 4G module, onboard SIM card slot.
Sound Card: USB sound card chip and HD simulates 6-channel sound effects.
USB interface: 8*USB, including 4*USB 3.0 and 4*USB 2.0
Cooling Mode: Air (Fanless)
Power Supply: Input: AC100-240V, 50-60Hz; Output: DC 19V
Operating Temperature: -10°C~60°C; Storage Temperature: -20°C~80°C; Relative Humidity: 10%~90% (non-condensing)
FEATURE:
8*COM port, of which COM1&COM2 support RS232 RS422 RS485 soft handoff;
8-bit GPIO meets more industrial equipment needs;
Supports 4G network module, SIM card can be directly inserted into the motherboard;
Support triple display,2*HD2.1+1*DP1.4, max support 8K
Support Restore AC Power Loss, Power-On by Alarm, Wake On Lan and PXE.
