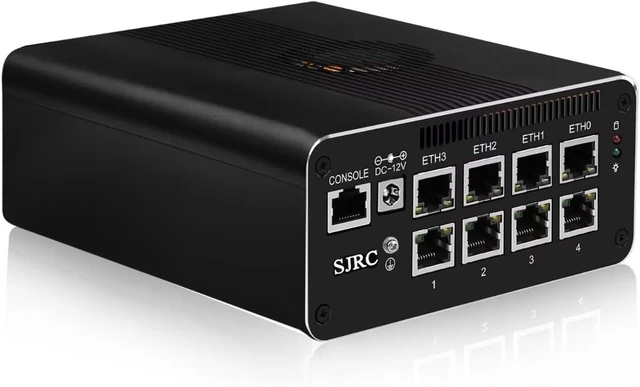

SJRC Mini PC Firewall Micro Appliance, 12th Gen Pentium Gold 8505, 8 x i226V 2.5GbE LAN, DDR5 16GB RAM 256GB NVMe SSD, Support OPNsense, USB3.2, Type-C, TF Slot, 4 Display, Console
- SJPC firewall appliance Mini PC with 12th Gen Alder Lake Pentium Gold 8505 with integrated UHD Graphics 48EUs, 1 Performance-core + 4 Efficient-cores, 6 threads, 8 MB Cache, up to 4.4GHz, TDP 15-55W, support AES-NI, Wake-on-LAN, Auto power on, etc
- SJRC Mini OPNsense appliance with 8 x i226-V 2.5G RJ45 LAN, pre-installed win 11 pro, press "Delete" to enter BIOS setup, compatible with Linux, OPNsense and other system

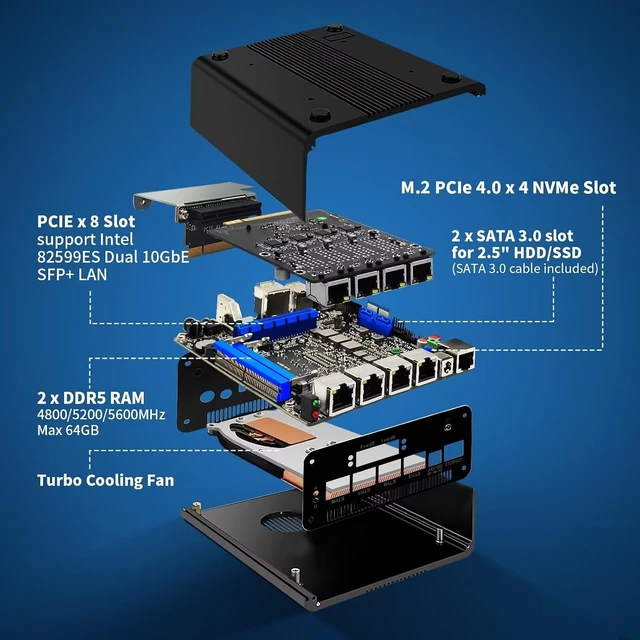

- 8 port lan firewall Mini PC with 2 x SO-DIMM DDR5 slot, up to 64GB RAM (compatible 4800/5200/5600 MHz). 1 x M.2 2280 NVMe slot (PCIe 4.0 x 4), 1 x PCIE x8 slot support 82599ES dual 10GbE SFP+ LAN, 2 x SATA 3.0 slot for 2.5" HDD/SSD (SATA 3.0 cable included)
- SJRC firewall hardware with 2 x HD2.0 + DP1.4 + Type C support 4K@60Hz 4 displays (Type-C requires resolution 4096x2160@60Hz to support the display), 1 x TF card slot, 1 x USB3.2 (5Gbps), 2 x USB2.0, 1 x ON/OFF, 1 x SPK/MIC, 1 x Reset Key, 1 x Console COM
- The Micro Appliance is made of full aluminum alloy chassis and
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

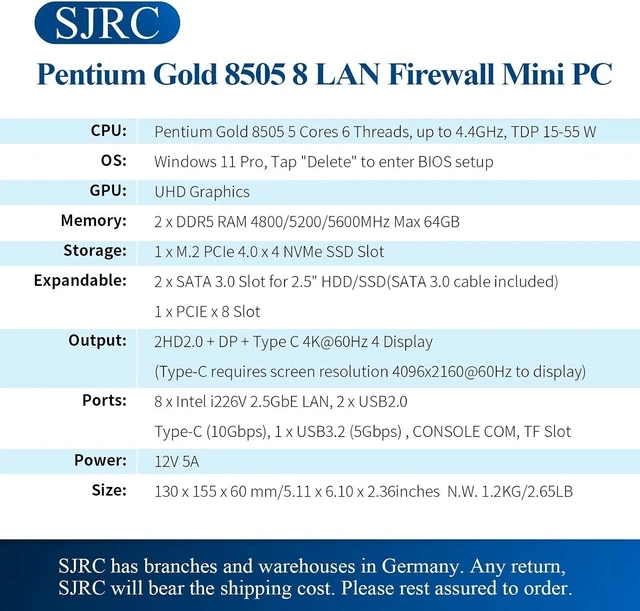

SJRC 8 LAN 12th Gen Pentium Gold 8505 Firewall Mini PC
CPU: In-tel 12th Gen Pentium Gold 8505, 1 Performance-core + 4 Efficient-cores, 6 threads, 8MB Cache, up to 4.4 GHz.
GPU: UHD graphics with 48 EUs.
TDP: 12-55 W.
System: Windows 11 Pro
RAM: 2 x DDR5 SODIMM Slot, max 64 GB.
SSD: 1 x M.2 2280 NVMe ( Pcie4.0 x 4) Slot.
Expand: 2 x SATA3.0 slot for 2.5"HDD/SSD.
LAN Port: 8 x 2.5GbE I226-V
TF Slot: TF card holder support system boot or data storage.
Display: 2 x HD2.0 + DP1.4 + Type C support 4K@60Hz 4 displays (Type-C requires resolution 4096x2160@60Hz to support the display).
FAN: 1 x Turbo cooling fan.
Feature: Support AES-NI, Wake-on-LAN, Auto power on, etc.

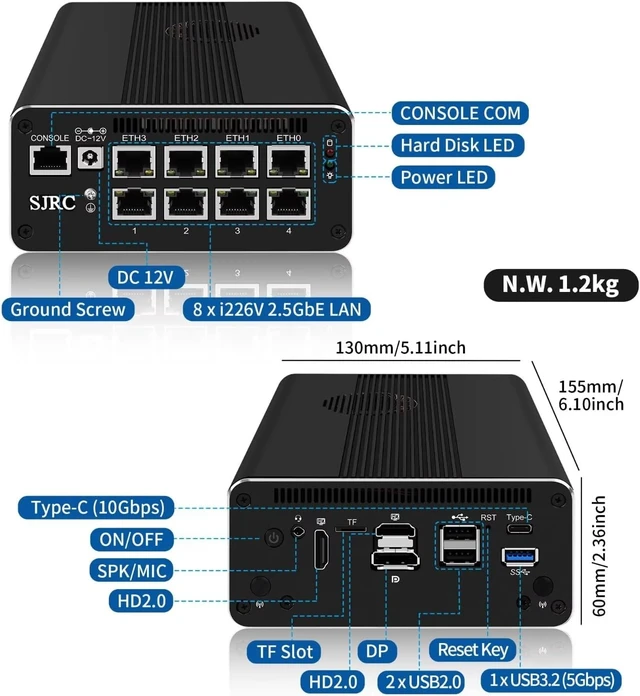

I/O: 8 x LAN, 2 x HD, 1 x DP, 1 x Type-C, 1 x DC power input, 1 x TF card slot, 1 x USB3.2 (5Gbps), 2 x USB2.0, 1 x ON/OFF, 1 x SPK/MIC, 1 x Reset Key, 1 x Console COM.
Firewall Case: Aluminum alloy
Operating Temperature: 0°c~70°c
Storage Temperature: 0°c~70°c
Relative Humidity: 5%~85% non-condensing
Power: DC 12-19V
Packing List: 1 x SJRC 8 Ethernet Ports Mini PC, 1 x Power Adapter, 1 x SATA Cable, 1 x VESA Mount.
Weight: 1.2 KG/2.65 LB Size: 15.5 x 13 x 6 CM/5.11 x 6.10 x 2.36 IN
CPU: In-tel 12th Gen Pentium Gold 8505, 1 Performance-core + 4 Efficient-cores, 6 threads, 8MB Cache, up to 4.4 GHz.
GPU: UHD graphics with 48 EUs.
TDP: 12-55 W.
System: Windows 11 Pro
RAM: 2 x DDR5 SODIMM Slot, max 64 GB.
SSD: 1 x M.2 2280 NVMe ( Pcie4.0 x 4) Slot.
Expand: 2 x SATA3.0 slot for 2.5"HDD/SSD.
LAN Port: 8 x 2.5GbE I226-V
TF Slot: TF card holder support system boot or data storage.
Display: 2 x HD2.0 + DP1.4 + Type C support 4K@60Hz 4 displays (Type-C requires resolution 4096x2160@60Hz to support the display).
FAN: 1 x Turbo cooling fan.
Feature: Support AES-NI, Wake-on-LAN, Auto power on, etc.
I/O: 8 x LAN, 2 x HD, 1 x DP, 1 x Type-C, 1 x DC power input, 1 x TF card slot, 1 x USB3.2 (5Gbps), 2 x USB2.0, 1 x ON/OFF, 1 x SPK/MIC, 1 x Reset Key, 1 x Console COM.
Firewall Case: Aluminum alloy
Operating Temperature: 0°c~70°c
Storage Temperature: 0°c~70°c
Relative Humidity: 5%~85% non-condensing
Power: DC 12-19V
Packing List: 1 x SJRC 8 Ethernet Ports Mini PC, 1 x Power Adapter, 1 x SATA Cable, 1 x VESA Mount.
Weight: 1.2 KG/2.65 LB Size: 15.5 x 13 x 6 CM/5.11 x 6.10 x 2.36 IN
