SJRC Mini PC Core i3 1115G4, Micro Firewall Appliance 8 x i226-V 2.5GbE LAN, Home/Office Hardware Support OPNsense/Win 11, Console, Triple 4K HD/DP/USB C, Barebone (No RAM/SSD/OS)
- High-Efficient Performance: Core i3 1115G4, 2 Cores, 4 Threads, up to 4.1GHz, TDP 12W-28W for multitasking, 4K streaming. Integrated UHD Graphics (48EU) for smooth visuals. Supports AES-NI, VT-x virtualization, ideal for pf-Sense, OPNsense, or VPN servers
- 8-Port 2.5G High-Speed: features 8 in-tel i226-V 2.5GbE Ethernet ports, offering ultra-fast, stable connectivity for firewalls, NAS setups. Ideal for offices, labs, or smart homes, ensures seamless traffic routing, threat monitoring, and network segmentation
- Connectivity & Triple 4K: Ports include 2x USB 3.0, 2x USB 2.0, Console COM port, Drive triple displays via HDMl 1.4 + DP + USB-C for 4K multi-screen productivity or surveillance dashboards. Pre-installed Win 11 Pro, BIOS supports Auto Power on/PXE/WOL
- Expandable DDR4 & Storage: Dual DDR4 3200MHz slots (up to 64GB), 1x M.2 NVMe (2280, PCIe 3.0 x4) slot, 2 x SATA3.0 (6Gb/s) ports. Expand further with PCIe x8 slot add 4x NVMe drives via adapter or 10GbE SFP+ (need to subtract 4
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
SJRC 11th Gen Core Firewall Mini PC with 8 LAN
Please note: This is a barebone system. A memory module, storage drive, and operating system are required for full functionality.

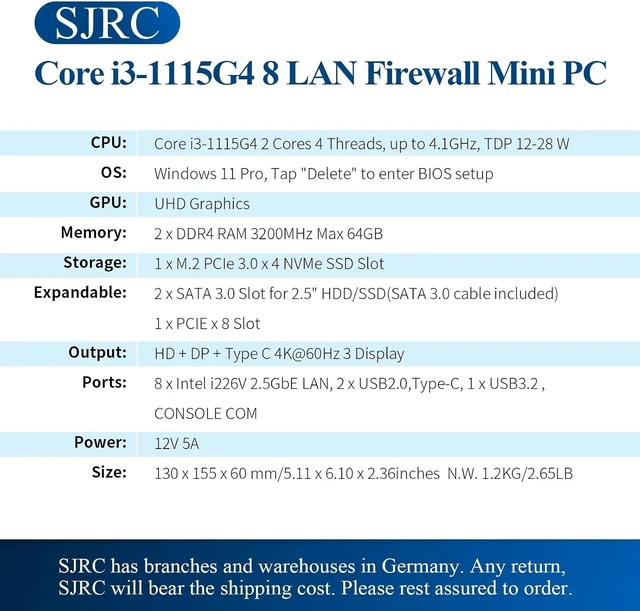

Core Performance
CPU: i3-1115G4 (2C/4T, up to 4.1GHz, 12-28W TDP) with UHD Graphics (48EU).
Memory: Dual DDR4 SODIMM slots (up to 64GB, 3200MHz). Note: It will take 5-10 minutes for the device to detect the RAM for the first time. Please be patient.
Storage: 1x 2280 M.2 NVMe SSD slot (PCIe 3.0 x4), 2x SATA3.0 slots
Networking: 8x In-tel i226-V 2.5GbE LAN ports.
Optional: a PCIe x8 slot (PCIe 3.0 x4) add up to 4x NVMe drives via adapter or 10GbE SFP+ (requires to subtract 4 of the 8 network ports for expansion), 1x RS232 header, 1x TPM header.
Display: Triple output via HD 1.4 (4K@30Hz) + DP 1.2 (4K@60Hz) + USB-C (4K@60Hz).
I/O Ports: 8 x LAN, 2x USB 3.0, 2x USB 2.0, 1x Type-C, 1 x HD, 1 x DP, 1 x ON/OFF, 1 x Reset Key, 1 x DC In.
Cooling: Copper heat spreader with turbo fan cooling.
Operating Range: -0°C to+70°C, 5%-85% humidity.
Compact & Versatile Design
Size: 15.5 cm*13 cm*6 cm (6.1" x 5.11" x 2.36"), 1.2kg (2.65lb).
Mounting: Desktop placement and VESA/wall-mountable.
Power: 12V DC input (55*25).
Easy Setup & Compatibility
BIOS: Supports PXE boot, Wake-on-LAN, and Auto Power On.
OS Support: Support Win System, Linux.
Package Includes: 1x Mini PC, 1x power adapter.
Please note: This is a barebone system. A memory module, storage drive, and operating system are required for full functionality.
Core Performance
CPU: i3-1115G4 (2C/4T, up to 4.1GHz, 12-28W TDP) with UHD Graphics (48EU).
Memory: Dual DDR4 SODIMM slots (up to 64GB, 3200MHz). Note: It will take 5-10 minutes for the device to detect the RAM for the first time. Please be patient.
Storage: 1x 2280 M.2 NVMe SSD slot (PCIe 3.0 x4), 2x SATA3.0 slots
Networking: 8x In-tel i226-V 2.5GbE LAN ports.
Optional: a PCIe x8 slot (PCIe 3.0 x4) add up to 4x NVMe drives via adapter or 10GbE SFP+ (requires to subtract 4 of the 8 network ports for expansion), 1x RS232 header, 1x TPM header.
Display: Triple output via HD 1.4 (4K@30Hz) + DP 1.2 (4K@60Hz) + USB-C (4K@60Hz).
I/O Ports: 8 x LAN, 2x USB 3.0, 2x USB 2.0, 1x Type-C, 1 x HD, 1 x DP, 1 x ON/OFF, 1 x Reset Key, 1 x DC In.
Cooling: Copper heat spreader with turbo fan cooling.
Operating Range: -0°C to+70°C, 5%-85% humidity.
Compact & Versatile Design
Size: 15.5 cm*13 cm*6 cm (6.1" x 5.11" x 2.36"), 1.2kg (2.65lb).
Mounting: Desktop placement and VESA/wall-mountable.
Power: 12V DC input (55*25).
Easy Setup & Compatibility
BIOS: Supports PXE boot, Wake-on-LAN, and Auto Power On.
OS Support: Support Win System, Linux.
Package Includes: 1x Mini PC, 1x power adapter.
