SJRC Industrial Fanless Mini PC with Core i7-1195G7, 6 RS-232/485 COM DDR4, 2.5GbE LAN, HD+VGA, 6 USB, Opnsense/Linux Support, Barebone NO RAM/SSD/OS,14pin GPIO
- Industry-level CPU performance: The fanless computer with Core i7-1195G7 of the 11th Generation, 4 cores, 8 threads, up to 5 GHz, 8 MB cache, 12-28 W TDP, no operating system by default. Designed for 24/7 automation, edge computing and low-power multitasking
- Robust connectivity and expandability: 6x RS-232 COM ports (4 support RS485/RS442), 2 x i225V 2.5GbE LAN, 14-pin GPIO, 4x USB 3.0, 2x USB 2.0, HD+VGA dual display and modular expansion with pre-installed 4G IMIM slot, ideal For PLCs, CNC machines and IoT gateways

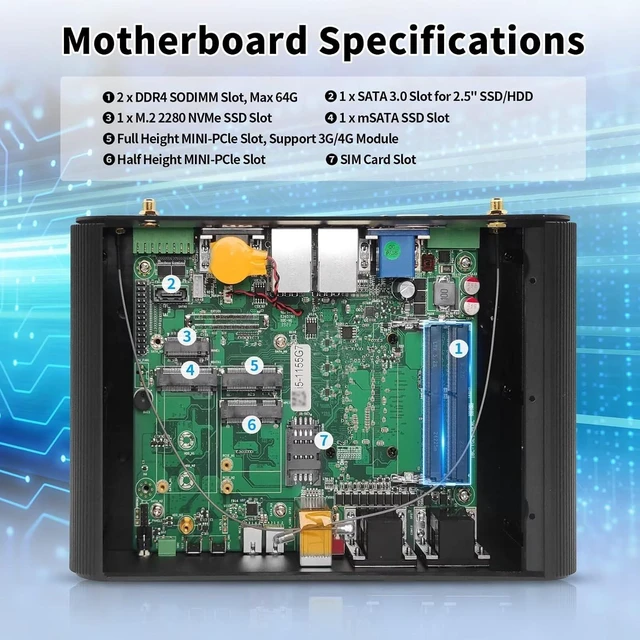

- Expandable DDR4 and memory: 2 x DDR4 SODIMM slots (up to 64GB) for faster data transfer compared to DDR4, 1x M.2 NVMe 2280 SSD, 1x sim card slot,1x mSATA, 1x 2.5" SATA HDD/SSD bay for large data storage. Supports hard driveless boot via PXE and watchdog timer for fail-safe operation
- Robust design without fans: The aluminum alloy body with passive cooling works silently from -20°C to +60°C and is dust and vibration resistant. 9-36V wide voltage input (Phoenix 3 pin conn
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
"Industrial Fanless Mini PC with In-tel Core i7-1195G7
Please note: This is a barebone only. A system memory, a storage drive and an operating system are needed to complete this item
Technical Specifications:
CPU: In-tel Core i7-1195G7 (4C/8T, 5GHz).
System: No OS
Memory: 2x DDR4 SODIMM (64GB Max). Note: It will take 5-10 minutes for the device to detect the RAM for the first time. Please be patient.
Storage: M.2 NVMe 2280 + mSATA + 2.5"" SATA.
Networking: 2x i225V 2.5GbE, dual-band module (2.4G/5G connection).

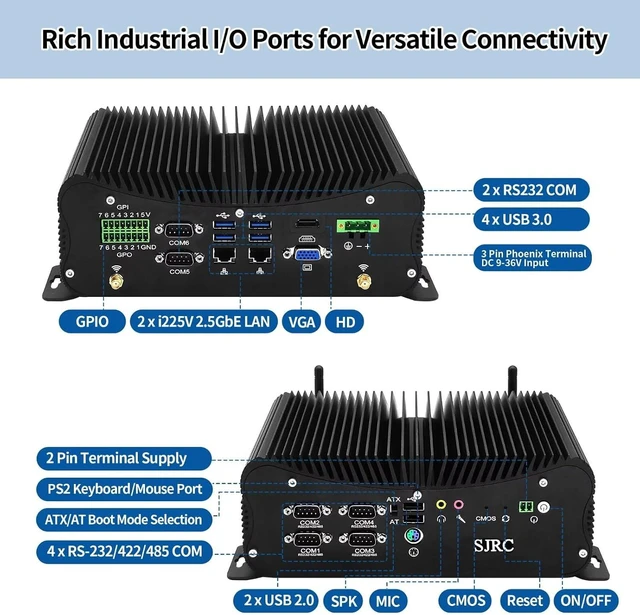

I/O: 6x RS-232 COM ports (4 support RS485/RS442), 14-pin GPIO, 4x USB 3.0, 2x USB 2.0, HDMl 4K, VGA, PS/2, audio jacks.
Power: 9-36V DC input (3-pin Phoenix terminal).
Dimensions: 9.8"" x 5.9"" x 3.4"" (249x150x86mm).
Weight: 4.85 lbs (2.2kg).
Operating Temperature: -20°C to +60°C.
Storage Temperature: -30°C to +70°C.
Humidity: 10%~90% non-condensing.
Expansion: 1x full-height Mini-PCIe (Support 3G/4G module) with SIM slot, 1x half-height Mini-PCIe.
Why Choose This Industrial PC?
Reliability: Fanless design reduces failure risks in dusty or high-vibration settings.
Scalability: Expand with 4G modules, additional storage, or custom I/O.
Easy Integration: Pre-configured for Win/Linux; UEFI BIOS for quick setup.
Package Includes:
1x Mini PC, 1x power adapter, 1x bracket, 2x antennas, 1x SATA cable.
"
Please note: This is a barebone only. A system memory, a storage drive and an operating system are needed to complete this item
Technical Specifications:
CPU: In-tel Core i7-1195G7 (4C/8T, 5GHz).
System: No OS
Memory: 2x DDR4 SODIMM (64GB Max). Note: It will take 5-10 minutes for the device to detect the RAM for the first time. Please be patient.
Storage: M.2 NVMe 2280 + mSATA + 2.5"" SATA.
Networking: 2x i225V 2.5GbE, dual-band module (2.4G/5G connection).
I/O: 6x RS-232 COM ports (4 support RS485/RS442), 14-pin GPIO, 4x USB 3.0, 2x USB 2.0, HDMl 4K, VGA, PS/2, audio jacks.
Power: 9-36V DC input (3-pin Phoenix terminal).
Dimensions: 9.8"" x 5.9"" x 3.4"" (249x150x86mm).
Weight: 4.85 lbs (2.2kg).
Operating Temperature: -20°C to +60°C.
Storage Temperature: -30°C to +70°C.
Humidity: 10%~90% non-condensing.
Expansion: 1x full-height Mini-PCIe (Support 3G/4G module) with SIM slot, 1x half-height Mini-PCIe.
Why Choose This Industrial PC?
Reliability: Fanless design reduces failure risks in dusty or high-vibration settings.
Scalability: Expand with 4G modules, additional storage, or custom I/O.
Easy Integration: Pre-configured for Win/Linux; UEFI BIOS for quick setup.
Package Includes:
1x Mini PC, 1x power adapter, 1x bracket, 2x antennas, 1x SATA cable.
"
