Industrial PC Fanless Mini PC Core i5 8250U 6x RS232 COM, 8GB RAM 128GB SSD
- HD, VGA, WIFI, Dual 2.5G Lan Embedded Industrial Computer i5, 4G SIM Slot, Din-rail, VESA, indsutrial Pc Server

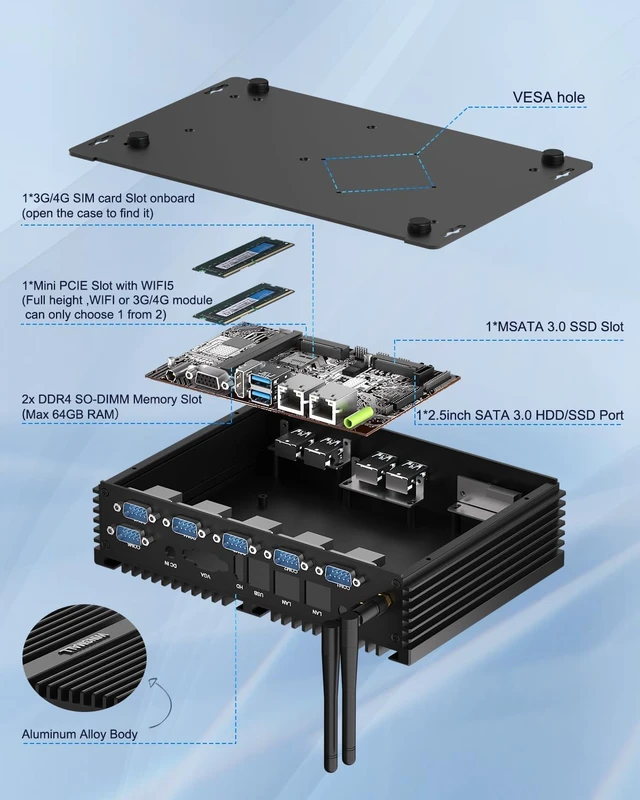

- Rapid Processing & Scalable Storage: WINSMALL WK4 Industrial Mini PC onboard Core i5-8250U Processor (4 Core/8 Thread, 6M Cache, 1.6 GHz-3.4 GHz), support Win 11 Pro/Win10/Linux, 2x 260 Pin DDR4 SO-DIMM Memory Slots(max 64 GB, 2x 32 GB), 1x MSATA 3.0 SSD and 1x 2.5" SATA 3.0 HDD/SSD, Embedded computer support multitasking and easily expand storage devices

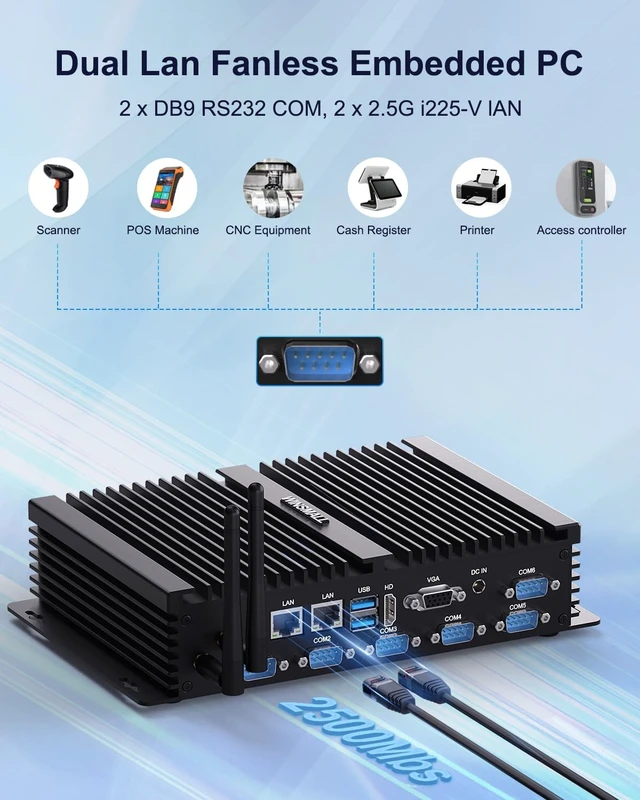

- Industrial I/O & Modular Expansion: The Industrial computer i5 offers 2x I225-V 2.5GbE LAN, 4x USB 3.0, 2x USB 2.0, 6x DB9 RS232 COM, 1x Spk/Mic, 2x Display Ports (HD, VGA)1x 12V 5A DCIN, The mini itx Pc server has an onboard 1x 3G/4G SIM card slot, 1x full-size Mini-PCIe slot for WIFI/3G/4G Module(Choose 1 out of 3)The rugged embedded pc support Auto Power On, Wake On Lan, RTC, TPM2.0, PXE
- Industrial Control Solutions: The fanless pc i5 adopts a fanless design, with a closed aluminum alloy shell that is resistant to h
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

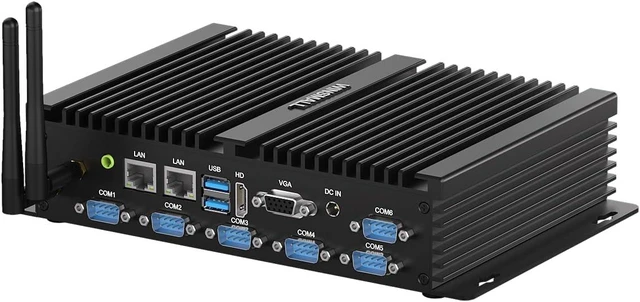

WINSMALL dual Lan Fanless Industrial Mini PC

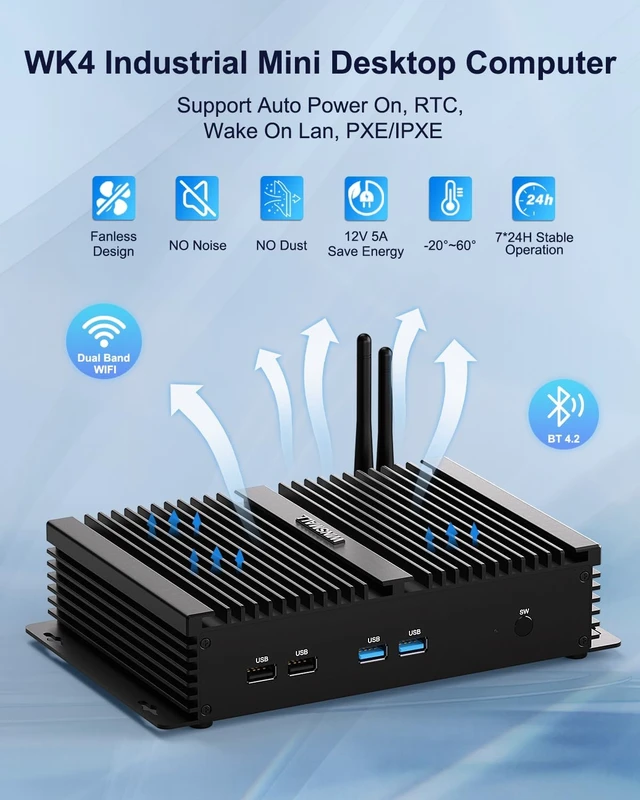

Fanless industrial PC bring you the additional advantage of consuming less energy than similar consumer grade products, with low-power embedded processors. This reduction in power consumption not only reduces the overall heat generated by the computer and achieves efficient operation through passive cooling heat sink technology, but also lowers the overall operating cost of the PC. The compact and lightweight design of industrial fanless computers allows them to be easily installed in extremely narrow places, such as the bottom of cabinets, enclosures, or tables. Applications that use silent fanless mini PC include digital signage, operating rooms, and in car vehicles.
CPU:
Core i5 8250U: 1.6 GHz up to 3.4 GHz, 4 Core 8 thread, UHD Graphics.
RAM: 2*DDR4 SODIMM Ram Slot, Max 64GB RAM
Storage: Support 1*MSATA3.0 SSD+1*2.5" SATA HDD/SSD
Network Card: Support 2* Gigabit lan port
WiFi: 1*Mini-PCIE(support WiFi / BT is optional )+1*SIM card slot for 3G/4G card

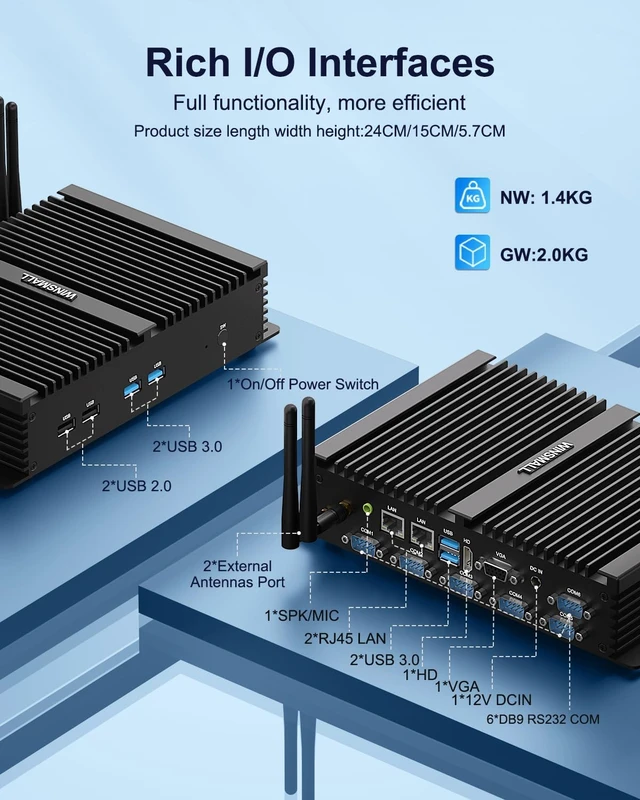

I/0 Port: HD + VGA + 6*USB port + 2*LAN + 6*RS232 COM + SPK/MIC + 1*Power switch;
Power: DC-IN 12V 5A
Dimension: 240*150*57mm
System: Support WIN11, WIN10, Linux Ubuntu,
Noise: Fanless System
Temperature: -10~60degC
Humidity: 5%~95% non-condensing
What's in the package
1x Mini PC indsutrial i5
1x Power supply & cable
1x HD cable
1x User Manul
1x VESA
1x SATA power & data cables
Fanless industrial PC bring you the additional advantage of consuming less energy than similar consumer grade products, with low-power embedded processors. This reduction in power consumption not only reduces the overall heat generated by the computer and achieves efficient operation through passive cooling heat sink technology, but also lowers the overall operating cost of the PC. The compact and lightweight design of industrial fanless computers allows them to be easily installed in extremely narrow places, such as the bottom of cabinets, enclosures, or tables. Applications that use silent fanless mini PC include digital signage, operating rooms, and in car vehicles.
CPU:
Core i5 8250U: 1.6 GHz up to 3.4 GHz, 4 Core 8 thread, UHD Graphics.
RAM: 2*DDR4 SODIMM Ram Slot, Max 64GB RAM
Storage: Support 1*MSATA3.0 SSD+1*2.5" SATA HDD/SSD
Network Card: Support 2* Gigabit lan port
WiFi: 1*Mini-PCIE(support WiFi / BT is optional )+1*SIM card slot for 3G/4G card
I/0 Port: HD + VGA + 6*USB port + 2*LAN + 6*RS232 COM + SPK/MIC + 1*Power switch;
Power: DC-IN 12V 5A
Dimension: 240*150*57mm
System: Support WIN11, WIN10, Linux Ubuntu,
Noise: Fanless System
Temperature: -10~60degC
Humidity: 5%~95% non-condensing
What's in the package
1x Mini PC indsutrial i5
1x Power supply & cable
1x HD cable
1x User Manul
1x VESA
1x SATA power & data cables
