Industrial PC,Mini PC N150 Firewall Hardware 2RS232/RS485 COM,Desktop Computer 2 x i226V 2.5GbE LAN 2HD,TypeC,Nano SIM Card Slot, M.2 WiFi Slot,NO RAM NO SSD (8GB RAM 128GB SSD)

CPU Intel N150(4C/4T Up to 3.6)GHz/N305(8C/8T Up to 3.8GHz) RAM single channel 3200MHz DDR4 memory, maximum support 32GB SSD 1*SATA 3.0 6Gb/s1x M.2 SSD 2280 (NGFF/PCIEx2 Adaptive) Display 2*HDMI1.4 and 1x DP1.4 Triple display ,Support 4096x2160@60Hz Network Card 2× Inte li226 - V (Lan1 can be modified to two USB ports) USB 2*USB2.0,2*USB3.0,1*USB3.2 Gen1,Type-C(Only USB function) BIOS AMI 128M BIOS (Winbond 25Q128JVSQ), supports Call Auto - Activation, PXE, WOL Power consumption 6W (basic power consumption), 15w (maximum turbo power consumption) Expansion interface 1 * MINI-PCIE (Supports USB WIFI/4G USB protocol (optional PCIE protocol same as M.2_WIFI - PCIE));1*M.2_WIFI (E_KEY) 2230 sub - PCIE protocol, supports CNVI;1*Mini SIM compatible with Nano SIM. Size 148*125*56mm(PCB:120*120mm) Com Port 2*COM RS232 (both support RS485)

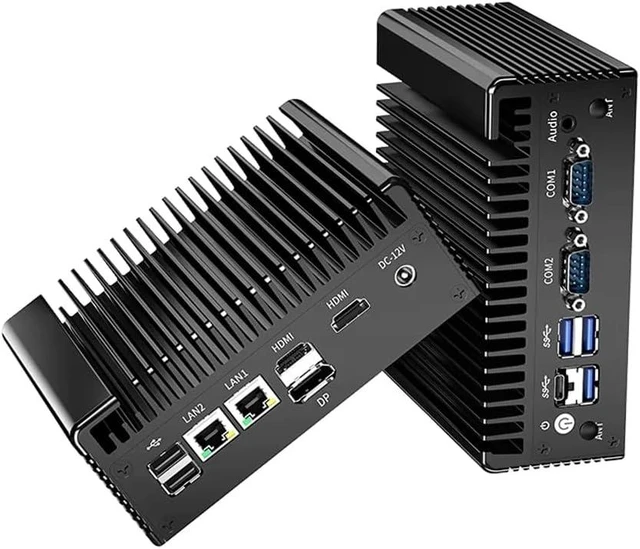

Fanless pc with 2xDB9 COM ports, support RS232/RS485 protocol. (default RS323 COM ). The COM interface of industrial computer is mainly used in PLC programmer, POS machine cash register, medical equipment, modem, industrial printer, access control system, sensor, code scanning gun, acquisition card, industrial machine tool equipment, serial mouse, electronic scale, etc.
Fanless pc can be expanded through M.2 NVMe SSD slot, SATA3.0 slot, and USB hard disk. Equipped with high-speed DDR4 memory, realizing multi-window, multi-tasking, no lag, and improving your work efficiency. It can satisfy your diverse scenarios' use such as home entertainment, ADs, office, education, industry etc. 0 bd noise during working, 7 x 24 hours stable performance.

Structural Diagram Interface
